H01N2-D Single Core Welding Cable – Rubber Sheathed, Oil & Cold Resistant (-40°C), 100V

Product Overview

The H01N2-D is a highly flexible, single-core welding cable designed for reliable performance in demanding industrial environments. Featuring a rugged rubber sheath (Neoprene/CR) and fine-stranded copper conductors, it is built to withstand exposure to oils, gasoline, ozone, and extreme temperatures from -40°C to +85°C. This cable is the preferred choice for creating durable connections from welding machines to electrodes and ground clamps.

Key Features & Benefits

• Exceptional Flexibility & Durability: Maintains high flexibility even in cold conditions down to -40°C. The robust rubber sheath provides excellent resistance to abrasion, tearing, and environmental stress.

• Superior Environmental Resistance: The oil and gasoline-resistant sheath (EM5 per DIN VDE 0282) ensures long-term performance in workshops and industrial settings. It is also resistant to ozone, light, and oxygen.

• Wide Temperature Range: Suitable for both fixed installations (-40°C to +85°C) and flexing applications (-20°C to +85°C), offering reliable operation in various climates and conditions.

• Safe & Reliable: Rated for 100V, it provides a secure connection for welding circuits. Available in high-visibility colors (Black, Red) for easy identification.

Primary Applications

This cable is used as an insulated conductor from electrical welding machines to electrodes, including ground connections. Its durability makes it suitable for:

• Manual arc welding

• Automotive industry and shipbuilding

• Transport systems and production lines

• Tool manufacturing and welding robots

• Outdoor use, as well as in dry and damp indoor conditions

Technical Data

• Rated Voltage (Uo/U): 100V

• Temperature Rating:

  • Fixed Installation: -40°C to +85°C

  • Flexing Application: -20°C to +85°C

• Minimum Bending Radius (Flexed): 6 x Overall Diameter

• Standard Sheath Colors: Black, Red

Specifications

• Voltage Level: Low Voltage

• Cold Resistance: Rated for -40°C

• Oil & Gasoline Resistance: Yes (Sheath Material CR/Neoprene)

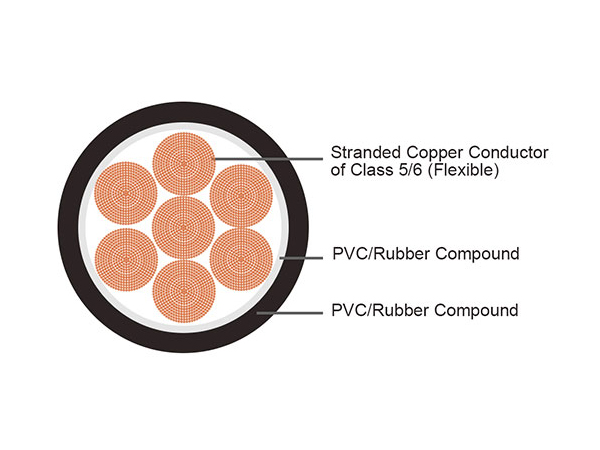

Cable Construction

• Conductor: Bare or tinned copper, fine-wired stranded, conforming to Class 6 per IEC 60228 / HD 383 / DIN VDE 0295.

• Separator: Polyester foil or paper.

• Insulation/Sheath: Rubber compound based on Polychloroprene (CR/Neoprene), type EM5 acc. to DIN VDE 0282 part 803. Oil-resistant.

• Sheath Colour: Standard is Black (Red available).
