Industrial Cable H07V-K
Product Overview
The H07V-K is a 450/750V flexible single-core industrial cable designed for the inner wiring of equipment, distributor and switchboards, and for protective laying to lighting with a nominal voltage up to 1000 V alternating current or up to 750 V direct current against earth.
The cable features fine bare copper strands, special PVC TI1 core insulation, and is manufactured to NF C 32-201-3. It complies with the CE Low Voltage Directive 73/23/EEC and 93/68/EEC and is ROHS compliant. Flame retardant performance is according to NF C 32-070.
Important Limitations: These cables are not suitable to be installed for laying in tubes, under and surface mounting of plaster, or in closed installation conduits. They are not allowed for direct laying on cable trays, channels, or tanks.
Features & Benefits
-
Flexible Construction: Fine bare copper strands to VDE-0295 Class-5 and IEC 60228 Class-5.
-
PVC TI1 Insulation: Special PVC TI1 core insulation for reliable electrical performance.
-
Voltage Rating: 450/750V.
-
Test Voltage: 2500 volts.
-
Flame Retardant: Complies with NF C 32-070.
-
Insulation Resistance: 10 MΩ x km.
-
Short Circuit Temperature: +160°C.
-
ROHS Compliant: Meets environmental and health requirements.
-
Standard Compliant: NF C 32-201-3 and CE Low Voltage Directive.
-
Core Colour Options: Cores to VDE-0293 colours on chart.
Typical Applications
-
Inner wiring of equipment
-
Distributor and switchboards
-
Protective laying to lighting with nominal voltage up to 1000 V AC or up to 750 V DC against earth
Not suitable for: Laying in tubes, under and surface mounting of plaster, closed installation conduits, direct laying on cable trays, channels, or tanks.

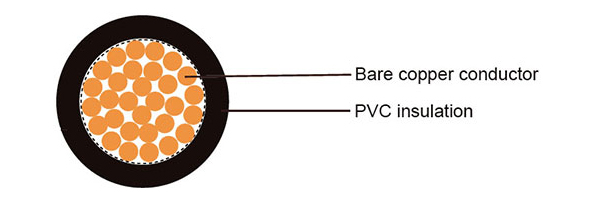

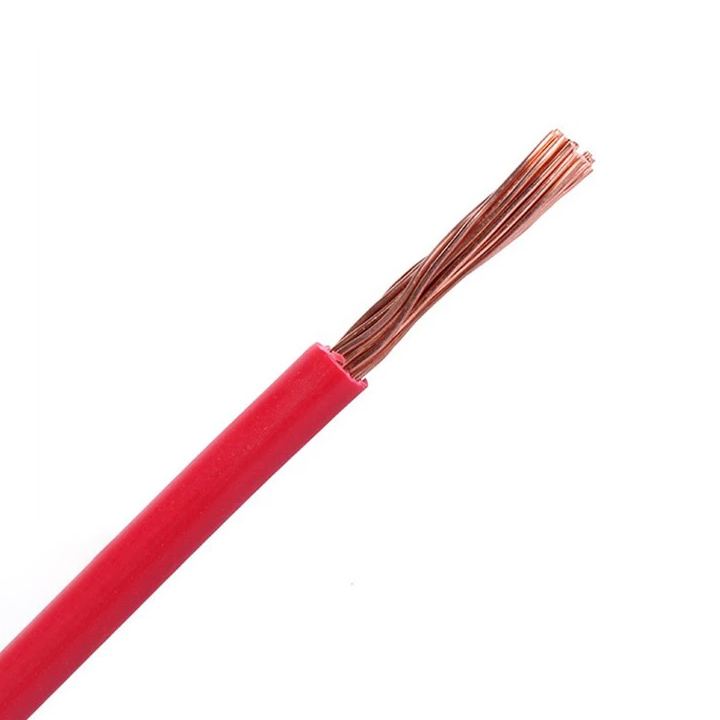

Construction
-
Conductor: Fine bare copper strands
-
Stranding: VDE-0295 Class-5, IEC 60228 Class-5
-
Insulation: Special PVC TI1 core insulation
-
Core Colours: Cores to VDE-0293 colours on chart
Technical Specifications
Electrical & Thermal Characteristics
| Parameter | Value |
|---|---|
| Working Voltage | 450/750V |
| Test Voltage | 2500 volts |
| Flexing Bending Radius | 12.5 x Ø |
| Static Bending Radius | 12.5 x Ø |
| Flexing Temperature | -5°C to +70°C |
| Static Temperature | -30°C to +80°C |
| Short Circuit Temperature | +160°C |
| Flame Retardant | NF C 32-070 |
| Insulation Resistance | 10 MΩ x km |
Parameter Table – H07V-K
| AWG | No. of Cores x Nominal Cross Sectional Area (mm²) | Nominal Thickness of Insulation (mm) | Nominal Overall Diameter (mm) | Nominal Copper Weight (kg/km) | Nominal Weight (kg/km) |
|---|---|---|---|---|---|
| 16 (30/30) | 1 x 1.5 | 0.7 | 3.1 | 14.4 | 20 |
| 14 (50/30) | 1 x 2.5 | 0.8 | 3.6 | 24.0 | 31 |
| 12 (56/28) | 1 x 4 | 0.8 | 4.3 | 38.0 | 48 |
| 10 (84/28) | 1 x 6 | 0.8 | 4.9 | 58.0 | 69 |
| 8 (80/26) | 1 x 10 | 1.0 | 6.4 | 96.0 | 121 |
| 6 (128/26) | 1 x 16 | 1.0 | 8.1 | 154.0 | 211 |
| 4 (200/26) | 1 x 25 | 1.2 | 9.8 | 240 | 303 |
| 2 (280/26) | 1 x 35 | 1.2 | 11.1 | 336 | 417 |
| 1 (400/26) | 1 x 50 | 1.4 | 13.1 | 480 | 539 |
| 2/0 (356/24) | 1 x 70 | 1.4 | 15.5 | 672 | 730 |
| 3/0 (485/24) | 1 x 95 | 1.6 | 17.2 | 912 | 900 |
| 4/0 (614/24) | 1 x 120 | 1.6 | 19.7 | 1152 | 1135 |
| 300 MCM (765/24) | 1 x 150 | 1.8 | 21.3 | 1440 | 1410 |
| 350 MCM (944/24) | 1 x 185 | 2.0 | 23.4 | 1776 | 1845 |
| 500 MCM (1225/24) | 1 x 240 | 2.2 | 27.1 | 2304 | 2270 |
Note: All values are nominal as provided in the source specification. Actual dimensions and weights may vary within standard manufacturing tolerances.
Standards & Compliance
-
NF C 32-201-3
-
CE Low Voltage Directive 73/23/EEC and 93/68/EEC
-
ROHS Compliant
-
Flame Retardant: NF C 32-070
-
Conductor Stranding: VDE-0295 Class-5, IEC 60228 Class-5
-
Core Colours: VDE-0293 colours
Ordering Information
To request a quote or place an order, please provide the following information:
-
Product Type: H07V-K
-
Voltage Rating: 450/750V
-
Conductor Size: e.g., 1 x 1.5 mm², 1 x 2.5 mm², 1 x 25 mm², 1 x 240 mm²
-
Conductor: Fine bare copper strands, Class 5
-
Insulation: Special PVC TI1
-
Quantity: Total length in meters
