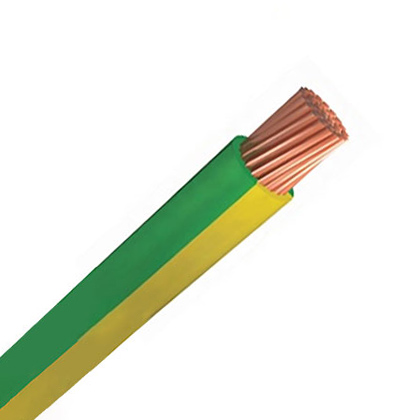

Annealed Plain Copper Conductor Single Core PVC Insulated (H05V2-R/H07V2-R) Cable
Product Overview
The H05V2-R and H07V2-R are single core PVC insulated cables with a stranded bare copper conductor, designed for fixed installation. They are suitable for installation in conduit or duct systems, or as connection wire in switch cabinets and similar applications.
The cables feature a 90°C PVC insulation and are manufactured to EN 50525-2-31 with a conductor according to IEC 60228 Class 2. Flame retardant performance is according to IEC 60332-1-2. The product is approved to RoHS2 2011/65/EU.
Features & Benefits
-
90°C Operating Temperature: Suitable for fixed installation with a temperature range of -30°C to +90°C.
-
Stranded Bare Copper: Annealed plain copper conductor, stranded to IEC 60228 Class 2.
-
PVC Insulation: 90°C PVC insulation for reliable electrical performance.
-
Flame Retardant: Complies with IEC 60332-1-2.
-
Voltage Ratings: H05V2-R: 300/500V; H07V2-R: 450/750V.
-
RoHS2 Compliant: Approved to RoHS2 2011/65/EU.
-
Colour Options: Customer choice of insulation colour.
-
Cable Marking: H05V2-R / H07V2-R.
-
Standard Compliant: EN 50525-2-31, IEC 60228 Class 2.
Typical Applications
-
Fixed installation
-
Conduit or duct systems
-
Connection wire in switch cabinets
-
Similar switchgear and control panel applications
Construction
-
Conductor: Stranded bare copper conductor
-
Conductor Standard: IEC 60228 Class 2
-
Insulation: 90°C PVC
-
Colour: Customer choice
-
Marking: H05V2-R / H07V2-R
Technical Specifications
Electrical & Thermal Characteristics
| Parameter | H05V2-R | H07V2-R |
|---|---|---|
| Voltage Rating Uo/U | 300/500 V | 450/750 V |
| Temperature Range | -30°C to +90°C | -30°C to +90°C |
| Flame Retardant | IEC 60332-1-2 | IEC 60332-1-2 |
| Conductor Standard | IEC 60228 Class 2 | IEC 60228 Class 2 |
| Construction Standard | EN 50525-2-31 | EN 50525-2-31 |
| Approval | RoHS2 2011/65/EU | RoHS2 2011/65/EU |
Parameter Table – H05V2-R / H07V2-R
| Type Code | Cross-Section (mm²) | Insulation Thickness (mm) | Outer Diameter (mm) | Copper Weight (kg/km) | Total Weight (kg/km) |
|---|---|---|---|---|---|
| H05V2-R | 0.5 | 0.6 | 2.2 | 4.8 | 9 |
| H05V2-R | 0.75 | 0.6 | 2.3 | 7.2 | 12 |
| H05V2-R | 1 | 0.6 | 2.5 | 9.6 | 15 |
| H07V2-R | 1.5 | 0.7 | 3.0 | 14.4 | 22 |
| H07V2-R | 2.5 | 0.8 | 3.6 | 24.0 | 34 |
| H07V2-R | 4 | 0.8 | 4.1 | 38.4 | 50 |
| H07V2-R | 6 | 0.8 | 4.7 | 57.6 | 72 |
| H07V2-R | 10 | 1.0 | 6.1 | 96.0 | 119 |
| H07V2-R | 16 | 1.0 | 7.0 | 153.6 | 181 |
| H07V2-R | 25 | 1.2 | 8.8 | 240.0 | 280 |
| H07V2-R | 35 | 1.2 | 9.9 | 336.0 | 382 |
Note: All values are nominal as provided in the source specification. Actual dimensions and weights may vary within standard manufacturing tolerances.
Standards & Compliance
-
Conductor: IEC 60228 Class 2
-
Construction: EN 50525-2-31
-
Flame Retardant: IEC 60332-1-2
-
Approval: RoHS2 2011/65/EU
Ordering Information
To request a quote or place an order, please provide the following information:
-
Product Type: H05V2-R or H07V2-R
-
Voltage Rating: 300/500V (H05V2-R) or 450/750V (H07V2-R)
-
Cross-Section: e.g., 0.5 mm², 1 mm², 2.5 mm², 10 mm², 35 mm²
-
Conductor: Stranded bare copper, Class 2
-
Insulation: 90°C PVC
-
Insulation Colour: Customer choice
-
Quantity: Total length in meters
