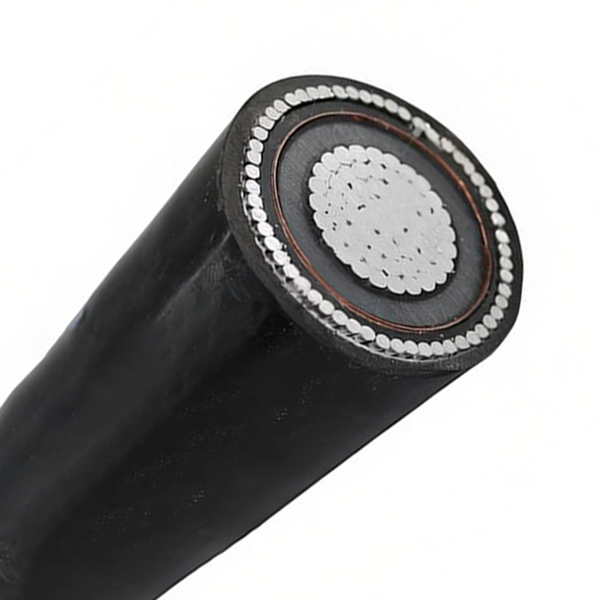

AWA Armor Aluminum Conductor XLPE Insulated Power Cable

Product Overview

Aluminum wire armoured cable is designed for industrial wiring and mains distribution. It can be laid direct in the ground, or in ducts, clipped to surface, on trays, or in free air. It may also be embedded in concrete.

Applications

  • Industrial wiring and mains distribution

  • Direct burial in the ground

  • Installation in ducts

  • Clipped to surface

  • On trays or in free air

  • Embedded in concrete

Features & Benefits

  • Long-Term Working Temperature: XLPE insulated cable: 90°C; PVC insulated cable: 70°C.

  • Laying Conditions: Ambient temperature during cable laying must be above 0°C.

  • Bending Radius:

    • Unarmoured cable: not less than 6 times the external diameter of the cable.

    • Armoured or copper tape screened cable: not less than 12 times the external diameter of the cable.

    • Flexible cable with screen layers: not less than 6 times the external diameter of the cable.

  • Special Options: Fire-retardant, flame-resisting, low-halogen, low-fume, non-halogen, acid and alkali proof versions available upon request.

Construction

  • Conductors: Aluminum

  • Insulation: XLPE

  • Sheath: PVC

  • Filler: Suitable filler

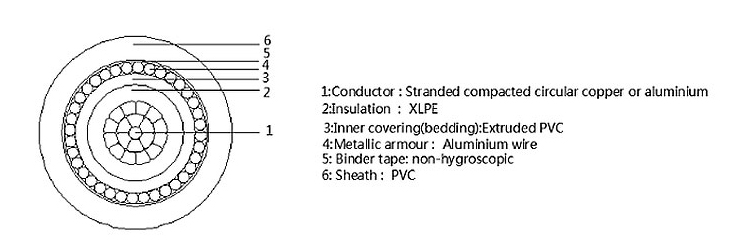

  • Armour: Aluminium wire armour (AWA) — as per title and parameter table

Technical Data

Type: YJV72 (Cu) / YJLV72 (Al)

Specification Outer Diameter of Conductor (mm) Nominal Insulation Thickness (mm) Diameter of Aluminium Wire (mm) Nominal Sheath Thickness (mm) Approx. Overall Diameter (mm) Approx. Weight Cu (kg/km) Approx. Weight Al (kg/km) Ampacity Air Cu (A) Ampacity Air Al (A) Ampacity Soil Cu (A) Ampacity Soil Al (A)
1×4 RE 2.24 0.7 1.25 1.8 16.9 228 204 45 35 60 50
1×6 RE 2.76 0.7 1.25 1.8 16.9 258 222 55 45 70 50
1×10 CC 3.8 0.7 1.25 1.8 16.9 321 261 75 60 95 75
1×16 CC 4.8 0.7 1.25 1.8 17.0 357 255 100 80 125 100
1×25 CC 6.0 0.9 1.25 1.8 17.4 482 323 140 115 160 130
1×35 CC 7.0 0.9 1.25 1.8 18.4 597 375 175 140 190 150
1×50 CC 8.4 1.0 1.6 1.8 19.6 788 487 210 170 225 180
1×70 CC 10.0 1.1 1.6 1.8 21.5 1032 598 270 215 280 225
1×95 CC 11.5 1.1 1.6 1.8 23.1 1319 718 340 275 335 270
1×120 CC 13.0 1.2 2.0 1.8 24.7 1657 892 400 320 380 305
1×150 CC 14.5 1.4 2.0 1.8 26.7 1960 1048 460 370 425 340
1×185 CC 16.2 1.6 2.0 1.8 28.8 2375 1205 530 415 480 375
1×240 CC 18.4 1.7 2.0 1.8 31.6 3004 1467 625 490 555 435
1×300 CC 20.5 1.8 2.0 1.9 34.2 3655 1722 720 565 630 495
1×400 CC 23.5 2.0 2.5 2.0 39.3 4725 2245 815 640 705 555
1×500 CC 26.5 2.2 2.5 2.2 44.3 5837 2686 855 680 765 595
1×630 CC 30.0 2.4 2.5 2.3 50.4 7326 3271 980 790 860 680

Note: RE = circular solid, CC = compacted circular stranded, SM = sector shaped stranded. Values are approximate.

Standards & Compliance

  • China National Standard

  • BS, DIN, AITM IEC, or as per customer requirement

Ordering Information

To request a quote or place an order, please provide the following information:

  • Product Type: AWA Armor Aluminum Conductor XLPE Insulated Power Cable

  • Type: YJV72 (Cu) or YJLV72 (Al)

  • Specification: e.g., 1×4 RE, 1×630 CC

  • Conductor Material: Copper or Aluminium

  • Armour: Aluminium wire armour (AWA)

  • Special Options: Fire-retardant, flame-resisting, low-halogen, low-fume, non-halogen, acid/alkali proof (upon request)

  • Quantity: Total length in meters
