H01N2-E Welding Cable | Extra Flexible, Flame Retardant, Oil & Cold Resistant for Welding Robots

Industrial Welding Robot Cable | H01N2-E Extra Flexible, -40°C to +85°C, BS EN 50525-2-81

Product Overview

The H01N2-E is an extra-flexible, flame retardant welding cable engineered for demanding automated and manual welding applications. Featuring a robust rubber sheath and Class 6 copper conductors, it delivers superior durability and performance in challenging industrial environments, including exposure to oils, extreme temperatures, and continuous flexing. It is fully compliant with key international standards, making it a reliable choice for critical welding circuits.

Key Features & Benefits

• Exceptional Flexibility & Durability: Constructed with extra-flexible Class 6 copper conductors, it withstands constant movement and bending, ideal for robotic arms and automated lines.

• Robust Environmental Resistance: The specialized rubber sheath provides excellent resistance to oils, acids, fats, petrols, ozone, and radiation, ensuring long service life in harsh workshops.

• Wide Operating Temperature Range: Suitable for use from -40°C to +85°C (fixed) and -20°C to +85°C (when flexed), guaranteeing performance in both freezing and high-heat conditions.

• Enhanced Safety: Certified Flame Retardant according to BS EN/IEC 60332-1-2, improving safety in industrial settings.

Primary Applications

This cable is specifically designed for connection to:

• Welding robots in the automotive manufacturing industry.

• Manual and automatic welding lines and spot welding systems.

• Shipyards and other heavy industrial welding applications requiring a durable, flexible power lead.

Standards & Compliance

• Conductor: BS EN 60228

• Cable Standard: BS EN 50525-2-81, HD 22.6, VDE 0282-6

• Flame Retardancy: BS EN/IEC 60332-1-2

Technical Data

• Rated Voltage (Uo/U): 100V

• Temperature Rating:

  • Fixed Installation: -40°C to +85°C

  • Flexing Application: -20°C to +85°C

• Minimum Bending Radius (Flexed): 6 x Overall Diameter

• Standard Sheath Color: Black

Specifications

• Voltage Level: Low Voltage

• Cold Resistance: Rated for -40°C

• Oil & Chemical Resistance: Yes

• Flame Retardant: Yes (BS EN/IEC 60332-1-2)

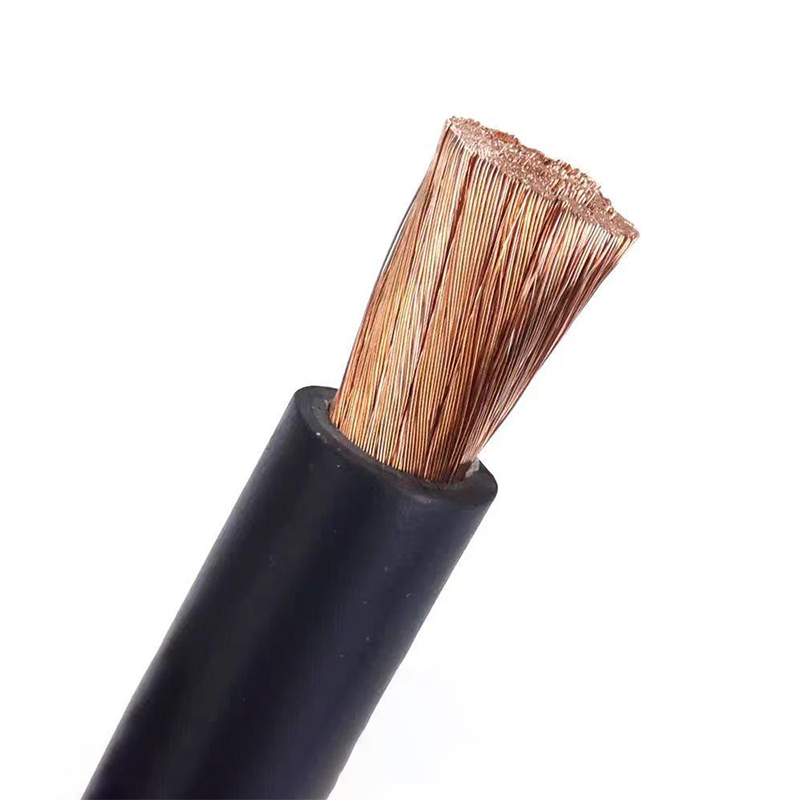

Cable Construction

• Conductor: Extra flexible, Class 6 finely stranded copper conductor.

• Separator: PET (Polyester Tape).

• Insulation/Sheath: Durable rubber compound.

• Sheath Colour: Standard Black.
