Product Overview
The CKEVP82/SA is a premium double-shielded marine control cable designed for applications demanding exceptional Electromagnetic Compatibility (EMC) and reliable mechanical protection. It features a dual-layer defense system: an inner EMI/RFI screen combined with an outer tinned copper braid armor. Constructed with EPR insulation and Low Smoke Halogen Free (LSHF) materials within a PVC sheath, it delivers superior performance and safety for critical power, lighting, and control circuits in electrically noisy and demanding marine/industrial environments.
Key Features & Benefits
-
Superior EMI/RFI Protection: The unique combination of an inner screen (foil or braid) and an outer tinned copper braid armor provides outstanding protection against electromagnetic and radio frequency interference, ensuring signal integrity for sensitive control systems.
-
Enhanced Conductivity & Grounding: The tinned copper braid armor serves a dual purpose: offering excellent mechanical protection and providing a low-resistance ground path, which is crucial for effective shielding and safety.
-
Comprehensive Safety & Durability: Built with Halogen-Free (IEC 60754), Low Smoke (IEC 61034), and Flame Retardant (IEC 60332) materials. EPR insulation ensures thermal stability (90°C), while the PVC sheaths offer robust environmental and mechanical resistance.
-
For Demanding Installations: Ideal for exposed or high-interference areas on ships, offshore platforms, and in heavy industry, where both electrical noise immunity and physical durability are required.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 cores.

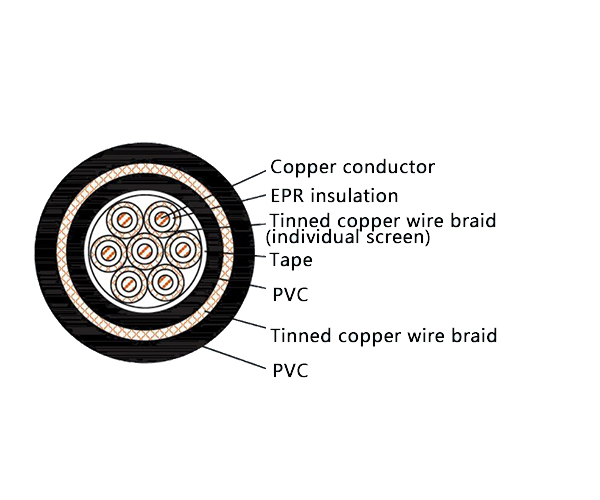

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | EPR Insulation |
| Inner Sheath | V | PVC Inner Sheath |
| Screen | P | Tinned Copper Wire Braid, OR Alu/Polyester Tape + Copper Drain Wire |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 2 | PVC Outer Sheath |
| Sheath Color | / | Black or Other Color |
| Flammability | SA | Bunched Cables Flame Retardant (IEC 60332-3-22) |
Standards & Compliance
Manufactured in full compliance with international marine and safety standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
Specifically designed for environments with high electromagnetic noise and where reliable grounding is essential:
-
Critical control, instrumentation, and automation systems on vessels, oil & gas platforms, and other offshore structures susceptible to interference.
-
PLC cabinets, drive systems, and sensitive measurement circuits in industrial facilities such as power plants, chemical processing plants, mining, and steel mills.
