CKEVP80/SA Double Copper Shielded Control Cable (No Outer Sheath)
Product Overview
The CKEVP80/SA is a specialized double-shielded marine control cable designed for maximum Electromagnetic Interference (EMI) protection in controlled, protected environments. It features a dual-layer copper defense system—an inner foil or braid screen and an outer tinned copper braid armor—providing superior signal integrity and grounding. With its design without an overall outer sheath (“0” code), this EPR-insulated, LSHF cable is the optimal choice for critical power and control wiring inside panels, cabinets, and enclosed trays on ships and offshore installations.
Key Features & Benefits
-
Maximum EMI/RFI Shielding: The combination of an inner screen and an outer tinned copper braid armor offers exceptional defense against electrical noise, ensuring reliable performance for sensitive instrumentation and control circuits.
-
Optimized for Enclosed Spaces: The “Without Outer Sheath” (0) design makes it ideal for installation within control panels, switchboards, or protected conduits, reducing bulk and improving heat dissipation in confined spaces.
-
Excellent Grounding & Flexibility: The tinned copper braid armor provides both mechanical protection and a highly conductive ground path. EPR insulation ensures flexibility and thermal stability up to 90°C.
-
Enhanced Safety Construction: Manufactured with Halogen-Free, Low Smoke (LSHF), and Flame Retardant materials to meet stringent safety standards for marine and industrial applications.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 cores.
Construction Details

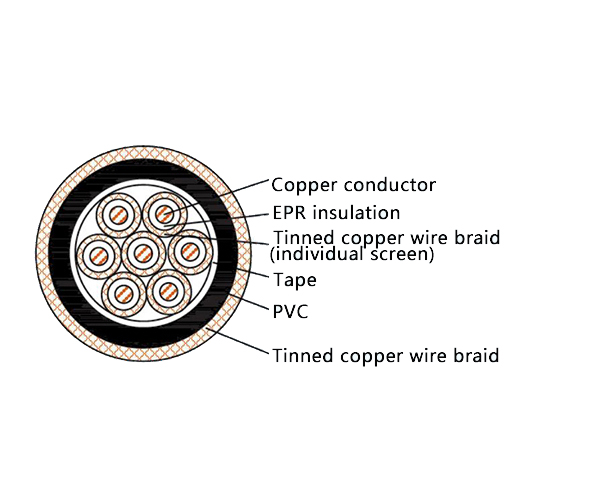

| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | EPR Insulation |
| Inner Sheath | V | PVC Inner Sheath |
| Screen | P | Tinned Copper Wire Braid, OR Alu/Polyester Tape + Copper Drain Wire |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | SA | Bunched Cables Flame Retardant (IEC 60332-3-22) |
Standards & Compliance
This cable is manufactured in compliance with key international standards for marine safety and performance:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
Ideal for critical, noise-sensitive circuits installed in protected environments:
-
Internal wiring of control panels, PLC cabinets, and instrumentation racks on marine vessels and offshore platforms.
-
EMI-protected control and signal circuits within enclosures or cable trays in power generation facilities, chemical plants, and automated industrial systems.
