Product Overview
The CKEVP90/SA is a robust, double-protected marine control cable designed for secure installations within panels, trays, or protected conduits. It features a primary EMI/RFI screen and an outer galvanized steel wire braid armor for maximum defense against interference and physical damage. With EPR insulation, LSHF materials, and a design without an overall outer sheath, it is the ideal solution for high-integrity power, lighting, and control circuits in confined or shielded spaces on ships and offshore installations.
Key Features & Benefits
-
Dual-Layer Defense: Combines an electrical screen (copper braid or tape) for signal integrity with a steel wire armor for superior mechanical protection against crushing and impact.
-
Optimized for Protected Installations: The “0” code (No Outer Sheath) design makes it perfect for installation inside control cabinets, switchboards, or enclosed cable management systems, saving space and allowing for efficient heat dissipation.
-
Enhanced Safety & Performance: Built with Halogen-Free (IEC 60754), Low Smoke (IEC 61034), and Flame Retardant (IEC 60332) materials. EPR insulation ensures reliable performance at temperatures up to 90°C.
-
Marine & Industrial Durability: Engineered to perform in the demanding environments of marine vessels, oil platforms, and heavy industrial plants.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 cores.

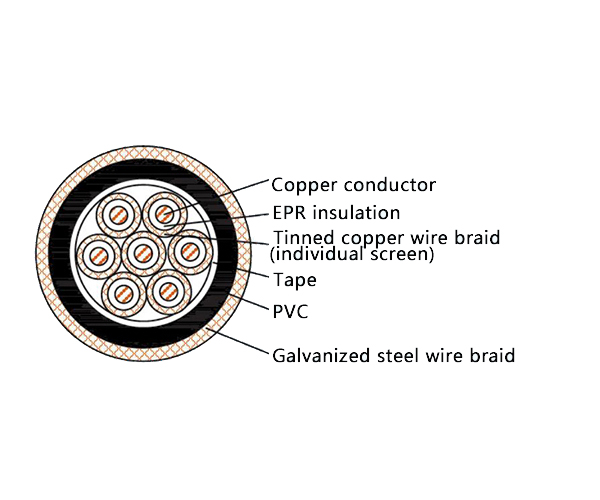

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | EPR Insulation |
| Inner Sheath | V | PVC Inner Sheath |
| Screen | P | Tinned Copper Wire Braid, OR Alu/Polyester Tape + Copper Drain Wire |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | SA | Bunched Cables Flame Retardant (IEC 60332-3-22) |
Standards & Compliance
This cable complies with the following key international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
Ideal for critical circuits where both interference immunity and mechanical strength are required, particularly in enclosed spaces:
-
Internal wiring of control panels, switchgear, and motor control centers (MCCs) on ships and offshore platforms.
-
Protected cable runs within trays or conduits for sensitive control and instrumentation systems in power plants, chemical facilities, and mining operations.
