Product Overview
The CKEVP92/SA represents a high-grade marine control cable engineered for the most demanding applications, combining dual-layer protection against both electromagnetic interference (EMI) and mechanical damage. Featuring a tinned copper or foil screen for EMI shielding and an outer galvanized steel wire braid armor, this EPR-insulated, Low Smoke Halogen Free (LSHF) cable ensures maximum reliability for critical power, lighting, and control circuits in harsh marine and industrial environments.
Key Features & Benefits
-
Dual Protection Design: A comprehensive screen (braid or tape) safeguards signal integrity from EMI/RFI, while a robust galvanized steel wire braid armor provides superior mechanical crush and impact resistance.
-
Enhanced Safety & Durability: Constructed with Halogen-Free (IEC 60754), Low Smoke (IEC 61034), and Flame Retardant (IEC 60332) materials. The EPR insulation and double PVC sheaths ensure excellent thermal stability (90°C), moisture resistance, and long service life.
-
For Extreme Environments: This cable is built to withstand challenging conditions on offshore platforms, ships, and in heavy industries, offering protection against interference, physical stress, and environmental hazards.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 cores.

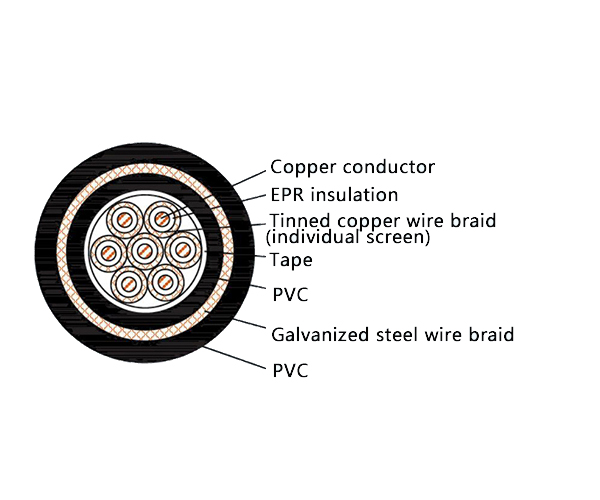

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | EPR Insulation |
| Inner Sheath | V | PVC Inner Sheath |
| Screen | P | Tinned Copper Wire Braid, OR Alu/Polyester Tape + Copper Drain Wire |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 2 | PVC Outer Sheath |
| Sheath Color | / | Black or Other Color |
| Flammability | SA | Bunched Cables Flame Retardant (IEC 60332-3-22) |
Standards & Compliance
Manufactured in compliance with international marine and safety standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
Designed for critical systems requiring uninterrupted performance under physically and electrically noisy conditions:
-
Vital control, automation, and power circuits on ships, oil & gas platforms, and offshore constructions where both EMI and physical protection are crucial.
-
Mission-critical systems in heavy industries such as power generation, chemical plants, mining, and metallurgy, especially for exposed or high-risk installation routes.
