Product Overview
The CKEVP/SA is a screened (shielded) marine control cable designed for power, lighting, and control systems operating in environments susceptible to electromagnetic interference (EMI). Featuring EPR insulation and a durable PVC outer sheath, it provides reliable signal integrity and circuit protection. Its Low Smoke Halogen Free (LSHF) and Flame Retardant construction ensures enhanced safety for installations on ships, offshore platforms, and in demanding industrial facilities.
Key Features & Benefits
-
EMI/RFI Protection: Equipped with an overall screen (braided or tape) to protect against electromagnetic and radio frequency interference, ensuring stable performance for sensitive control and instrumentation circuits.
-
Enhanced Safety: Built with Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) materials, and certified for Flame Retardancy (IEC 60332), promoting safer evacuation conditions and reducing corrosive fumes in case of fire.
-
Robust & Durable: EPR insulation ensures excellent thermal resistance (90°C) and long-term flexibility. The PVC outer sheath provides robust mechanical and environmental protection against oil, moisture, and abrasion.
-
Versatile Installation: Available in multiple sheath colors (e.g., black) for easy circuit identification and compliance with various installation standards.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 cores.

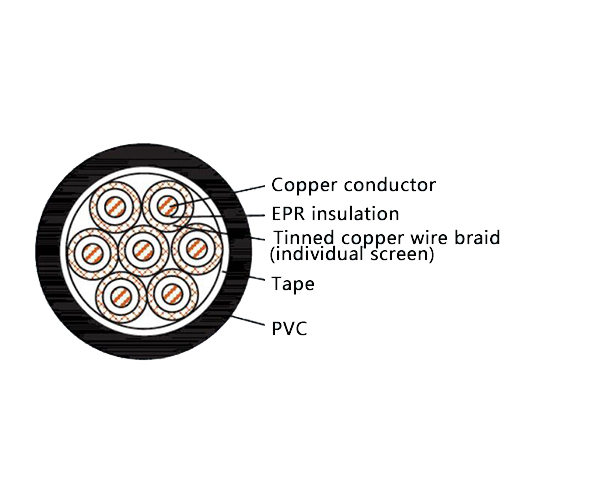

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | EPR Insulation |
| Sheath | V | PVC (Polyvinyl Chloride) |
| Screen | P | Tinned Copper Wire Braid, OR Alu/Polyester Tape + Copper Drain Wire |
| Sheath Color | / | Black or Other Color |
| Flammability | SA | Bunched Cables Flame Retardant (IEC 60332-3-22) |
Standards & Compliance
This cable complies with the following key international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
Ideal for control and power circuits where electrical noise suppression is critical:
-
Screened control and instrumentation systems on marine vessels and offshore platforms (e.g., oil & gas platforms).
-
PLC systems, automation controls, and sensitive measurement circuits in industrial environments like power plants, chemical processing, metallurgy, and mining.
