Product Overview
The CEF82/NA EPR Insulated Armored Marine Power Cable is a fully-sheathed, fire-resistant armored cable designed for critical safety circuits. It combines a mica glass tape and EPR insulated core for circuit integrity during fire, with a PCP inner sheath, tinned copper wire braid armor, and a final PVC outer sheath, offering complete mechanical, environmental, and fire protection.
Key Applications
-
Marine & Offshore: Essential for emergency power, lighting, and control systems on ships, oil platforms, and offshore installations, particularly where cables are exposed to the environment or require enhanced durability alongside fire resistance.
-
High-Risk Industrial: Vital in metallurgy, chemical plants, power generation, and mining for circuits that must remain operational during a fire and are installed in areas prone to abrasion, moisture, or chemical exposure.
Compliance & Standards
This cable is engineered to meet stringent international standards for fire survival and safety:
-
Design: IEC 60092-350, IEC 60092-353
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistance: IEC 60331 (Circuit integrity under fire)
-
Flame Retardancy: IEC 60332-1, IEC 60332-3-22

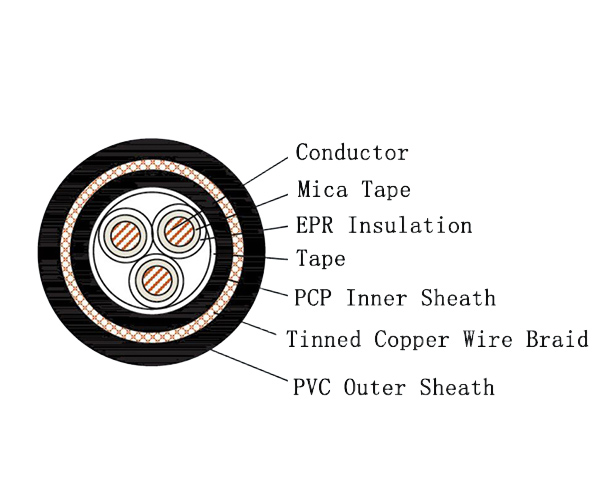

Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned or Plain Stranded, Annealed Copper Wire |
| Insulation | E | Mica Glass Tape + EPR (Fire-Resistant Layer) |
| Inner Sheath | F | PCP (Polychloroprene) |
| Armor | 8 | Tinned or Plain Copper Wire Braid |
| Outer Sheath | 2 | PVC |
| Outer Sheath Color | / | Standard Black (Other colors available) |
| Flammability | NA | Fire Resistant |
Technical Specifications
-
Rated Voltage: 0.6/1 kV
-
Maximum Conductor Temperature: 90°C
-
Available Cross-Section: 0.75 mm² to 300 mm²
-
Number of Cores: 1 to 37 Cores
