Product Overview
The CHEPF96/SC is a robust and safety-compliant armored marine communication cable, engineered to deliver reliable performance in exposed or physically demanding installations. It combines EPR insulation, galvanized steel wire armor, and a dual-layer Thermoplastic Polyolefin (SHF1) sheath within a full Low Smoke Halogen Free (LSHF) Flame Retardant construction. This design provides an optimal balance of mechanical durability, fire safety, and cost-effectiveness for critical communication and control circuits in harsh marine and industrial environments.
Key Features & Benefits
-
Robust Mechanical Protection: The galvanized steel wire braid armor (9) offers superior resistance to crushing, impact, and rodent damage, making the cable suitable for direct burial, tray installation, or exposed runs in demanding conditions.
-
Enhanced Fire Safety: Provides full Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties, minimizing toxic fumes and smoke density. Complies with IEC 60332 flame retardancy standards for enhanced personnel and asset safety.
-
Durable & Cost-Effective Sheathing: The dual-layer Thermoplastic Polyolefin (SHF1) sheath (PF inner & 6 outer) provides excellent resistance to abrasion, moisture, and chemicals, offering durable external protection while maintaining an economical LSHF solution.
-
Comprehensive Solution: Integrates essential mechanical armor with certified LSHF fire safety, providing a well-rounded cable for applications requiring both physical protection and enhanced safety compliance.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.
-
Outer Sheath Color: Standard Black (other colors available on request).

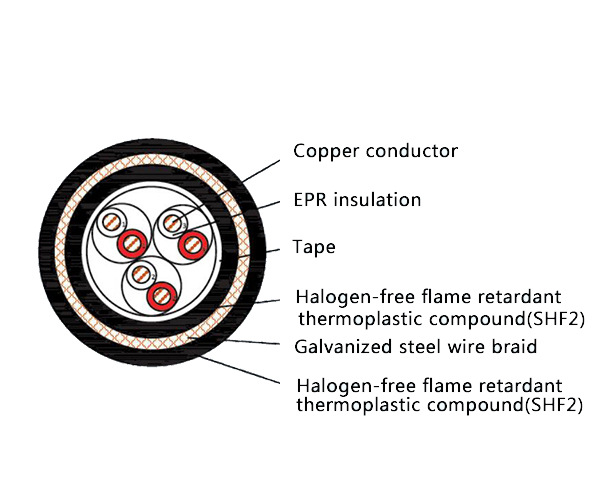

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | EPR (Ethylene Propylene Rubber) |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 6 | Thermoplastic Polyolefin (SHF1) |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This armored LSHF cable is designed for applications requiring a balance of physical protection and safety compliance:
-
Marine & Offshore: General communication, alarm, and control wiring on external decks, in machinery spaces, and on offshore platforms where cables may be exposed to physical damage and must comply with LSHF regulations.
-
Industrial & Infrastructure: Power plant instrumentation, water treatment controls, and industrial data networks that require mechanical protection (armor) alongside the safety benefits of low smoke, zero halogen materials.
