0.6/1 kV XLPE Insulated, LSOH (SHF1) Sheathed, Armoured Flame Retardant Power & Control Cable – Marine & Offshore

IEC 60092-Series Cables
Description

Product Overview

The 0.6/1 kV IEC60092 standard offshore and marine armoured cables are used on board ships in all locations for fixed installations where cable protection is required. These cables are flame retardant, low smoke, and halogen free, making them ideal for demanding marine and offshore environments.

Approvals:

  • IEC 60092-350/351/353/359

  • IEC 60332-1

  • IEC 60332-3-22

  • IEC 60754-1/2

  • IEC 61034

Technical Data:

  • Temperature range during installation: fixed installed: -30°C up to +90°C

  • Short-circuit temperature (max. 5 s): 250°C

  • Nominal voltage: 0.6/1 kV

  • Test voltage: 3500V

  • Minimum inner bending radius: 6×OD

Specifications

Property Details
Voltage Level Low Voltage (0.6/1 kV)
Flame Retardant ✓ (IEC 60332-1, IEC 60332-3-22)
Low Smoke & Halogen Free ✓ (IEC 60754-1/2, IEC 61034)
Operating Temperature -30°C to +90°C
Short Circuit Temperature 250°C (max 5s)
Bending Radius 6×OD

Construction

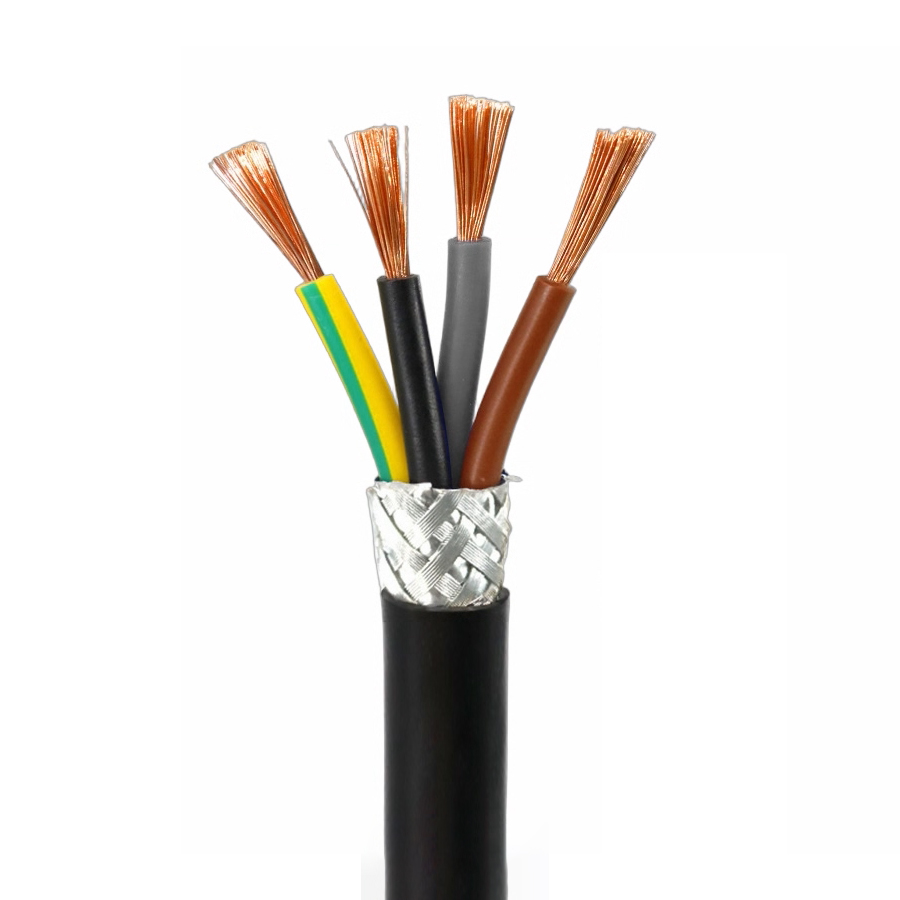

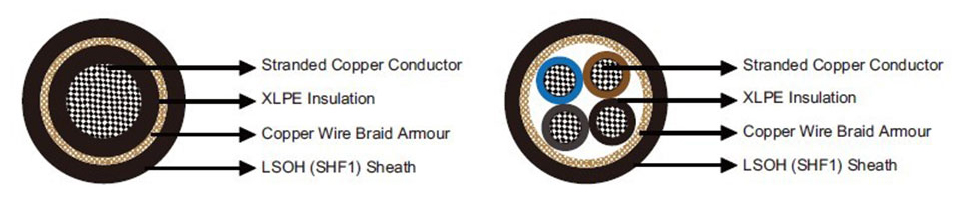

  1. Conductor: Class 2 stranded copper conductor, round or sector shaped. Class 5 stranded conductors available on request.

  2. Insulation: XLPE. HEPR insulation available on request.

  3. Armour: Copper wire braid.

  4. Outer Sheath: LSOH (SHF1). SHF2 available on request.

Standard insulation colors:

  • Single core: Black

  • Two cores: Blue, Brown

  • Three cores: Brown, Black, Grey

  • Four cores: Blue, Brown, Black, Grey

  • Five cores: Blue, Brown, Black, Grey, Black

  • Multi cores: White with black numbers

  • With yellow/green (optional):

    • Two cores + earth (3G): Yellow/green, Blue, Brown

    • Three cores + earth (4G): Yellow/green, Brown, Black, Grey

    • Four cores + earth (5G): Yellow/green, Blue, Brown, Black, Grey

Technical Parameters

Single Core Cables – Armoured

Construction No. of Cores × Cross Section (mm²) Nominal Insulation Thickness (mm) Nominal Sheath Thickness (mm) Nominal Overall Diameter (mm) Nominal Weight (kg/km)
1×1.5 0.7 1.1 6.3 70
1×2.5 0.7 1.1 6.7 80
1×4 0.9 1.1 7.4 100
1×6 0.9 1.1 8.0 120
1×10 0.9 1.1 8.8 180
1×16 0.9 1.1 10.2 245
1×25 0.9 1.2 11.7 355
1×35 0.9 1.2 13.0 455
1×50 1.0 1.3 15.0 620
1×70 1.1 1.4 17.2 850
1×95 1.1 1.4 19.1 1115
1×120 1.2 1.5 21.1 1385
1×150 1.4 1.6 23.2 1690
1×185 1.6 1.6 25.5 2065
1×240 1.7 1.7 28.4 2640
1×300 1.8 1.8 31.3 3260

Multi Core Cables – Armoured

Construction No. of Cores × Cross Section (mm²) Nominal Insulation Thickness (mm) Nominal Sheath Thickness (mm) Nominal Overall Diameter (mm) Nominal Weight (kg/km)
2×1.5 0.7 1.1 9.3 120
2×2.5 0.7 1.1 10.1 150
2×4 0.9 1.2 12.2 195
2×6 0.9 1.2 13.7 275
2×10 0.9 1.3 15.7 385
2×16 0.9 1.4 18.4 595
2×25 0.9 1.5 21.3 820
2×35 0.9 1.5 23.9 1140
2×50 1.0 1.5 26.7 1500
3×(G)1.5 0.7 1.1 9.8 145
3×(G)2.5 0.7 1.1 10.7 180
3×4 0.9 1.2 12.9 245
3×6 0.9 1.3 14.7 345
3×10 0.9 1.3 16.6 490
3×16 0.9 1.4 19.5 755
3×25 0.9 1.6 22.7 1095
3×35 0.9 1.6 24.9 1340
3×35 (sector shaped) 0.9 1.6 22.0 1320
3×50 1.0 1.6 27.1 1750
3×50 (sector shaped) 1.0 1.6 24.8 1820
3×70 (sector shaped) 1.1 2.0 29.7 2575
3×95 (sector shaped) 1.1 2.1 33.1 3435
3×120 (sector shaped) 1.2 2.2 36.0 4070
3×150 (sector shaped) 1.4 2.4 40.9 5435
4×(G)1.5 0.7 1.1 10.5 170
4×(G)2.5 0.7 1.2 11.8 225
4×4 0.9 1.3 14.7 335
4×6 0.9 1.3 16.0 425
4×10 0.9 1.4 18.3 625
4×16 0.9 1.5 21.5 935
4×25 0.9 1.6 24.4 1345
4×35 0.9 1.7 27.5 1715
4×35 (sector shaped) 0.9 1.7 24.3 1700
4×50 1.0 1.6 29.9 2400
4×50 (sector shaped) 1.0 1.6 27.3 2300
4×70 (sector shaped) 1.1 2.1 32.8 3250
4×95 (sector shaped) 1.1 2.2 37.3 4390
5×(G)1.5 0.7 1.2 11.7 205
5×(G)2.5 0.7 1.2 12.8 265
5G4 0.9 1.2 15.2 360
6×1.5 0.7 1.2 12.7 240
7×1.5 0.7 1.2 12.7 260
8×1.5 0.7 1.2 15.5 340
10×1.5 0.7 1.3 16.2 390
12×1.5 0.7 1.4 16.9 440
16×1.5 0.7 1.4 18.6 550
19×1.5 0.7 1.5 19.7 620
24×1.5 0.7 1.6 22.9 800
5×2.5 0.7 1.2 12.9 290
7×2.5 0.7 1.2 14.6 390
12×2.5 0.7 1.4 18.7 610
19×2.5 0.7 1.5 21.8 870
24×2.5 0.7 1.6 25.6 1100
27×2.5 0.7 1.7 26.1 1200
37×2.5 0.7 1.9 29.2 1560
