IEC60092 Standard MariTox Marine Flame Retardant Power & Control Cable – 0.6/1kV LSOH SHF1

Product Overview

The 0.6/1 kV IEC60092 Standard offshore and marine unarmoured power and control cables are intended for use on board ships in all locations for fixed installations not subject to mechanical risk, complying with IEC standard 60092-352. These cables are flame retardant, low smoke, and halogen free, making them ideal for demanding marine environments.

Approvals:

• IEC 60092-350/351/353/359

• IEC 60332-1

• IEC 60332-3-22

• IEC 60754-1/2

• IEC 61034

Technical Data:

• Temperature range during installation: fixed installed: -30°C up to +90°C

• Short-circuit temperature (max. 5s): 250°C

• Nominal voltage: 0.6/1 kV

• Test voltage: 3500V

• Minimum inner bending radius: 6×OD (OD > 25mm); 4×OD (OD ≤ 25mm)

Specifications

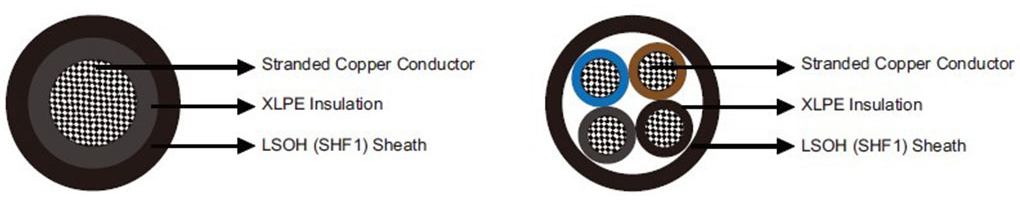

Construction

1. Conductor: Class 2 stranded copper conductor, round or sector shaped. Class 5 stranded conductors available on request.

2. Insulation: XLPE. HEPR insulation available on request.

3. Outer Sheath: LSOH (SHF1). SHF2 available on request.

Standard insulation colors:

• Single core: Black

• Two cores: Blue, Brown

• Three cores: Brown, Black, Grey

• Four cores: Blue, Brown, Black, Grey

• Five cores: Blue, Brown, Black, Grey, Black

• Multi cores: White with black numbers

• With yellow/green (optional):

  • Two cores + earth (3G): Yellow/green, Blue, Brown

  • Three cores + earth (4G): Yellow/green, Brown, Black, Grey

  • Four cores + earth (5G): Yellow/green, Blue, Brown, Black, Grey

Technical Parameters

Single Core Cables

Multi Core Cables
