Product Overview
The CEF80/NA EPR Insulated Armored Marine Power Cable is a specialized fire-resistant marine power cable designed to maintain circuit integrity during a fire. Its core construction features mica glass tape over the conductor followed by EPR insulation, combined with a PCP inner sheath and tinned copper wire braid armor. This ensures continued operation of essential safety systems, such as emergency lighting and alarms, under direct flame conditions.
Key Applications
-
Marine & Offshore: Critical for emergency circuits, alarm systems, and safety-critical power routes on ships, oil platforms, and offshore structures where circuit integrity during fire is mandatory.
-
High-Risk Industrial Plants: Essential in metallurgy, chemical plants, power stations, and mining for powering equipment that must remain operational for safe shutdown or evacuation in the event of a fire.
Compliance & Standards
This cable meets the highest standards for fire survival and general safety:
-
Design: IEC 60092-350, IEC 60092-353
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistance: IEC 60331 (Maintains functionality under fire)
-
Flame Retardancy: IEC 60332-1, IEC 60332-3-22

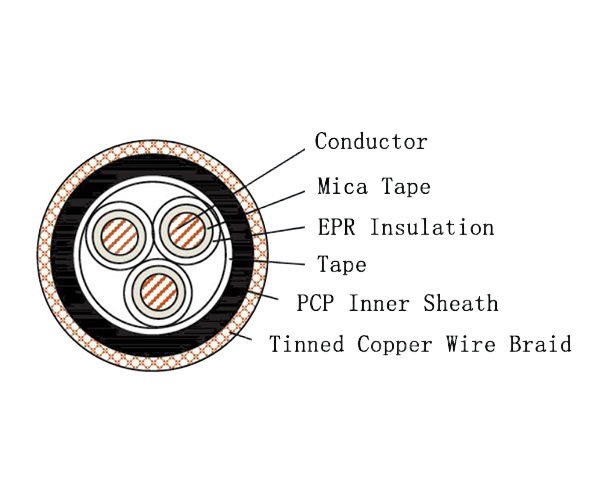

Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned or Plain Stranded, Annealed Copper Wire |
| Insulation | E | Mica Glass Tape + EPR (Fire-Resistant Layer) |
| Inner Sheath | F | PCP (Polychloroprene) |
| Armor | 8 | Tinned or Plain Copper Wire Braid |
| Outer Sheath | 0 | None (Armor serves as the final layer) |
| Flammability | NA | Fire Resistant |
Technical Specifications
-
Rated Voltage: 0.6/1 kV
-
Maximum Conductor Temperature: 90°C
-
Available Cross-Section: 0.75 mm² to 300 mm²
-
Number of Cores: 1 to 37 Cores
