Product Overview
The CHEPF/SC is a standard, cost-effective marine communication cable designed for general-purpose applications requiring enhanced fire safety. Featuring reliable EPR insulation and a Thermoplastic Polyolefin (SHF1) sheath, it provides full Low Smoke Halogen Free (LSHF) Flame Retardant performance. This cable offers a practical and safe solution for internal shipboard wiring, industrial control, and instrumentation circuits where specialized shielding or armor is not required.
Key Features & Benefits
-
Enhanced Fire Safety: Certified Halogen-Free (IEC 60754) and Low Smoke (IEC 61034), reducing the emission of corrosive toxic gases and smoke in case of fire. Complies with IEC 60332 flame retardancy standards for enhanced safety.
-
Cost-Effective LSHF Solution: The Thermoplastic Polyolefin (SHF1) sheath (PF) meets stringent LSHF requirements while offering a durable and economical solution, balancing performance and cost for general applications.
-
Lightweight & Flexible: The simple, unscreened and unarmored construction makes this cable lightweight, flexible, and easy to install in cable trays, conduits, or behind panels.
-
Reliable Performance: EPR insulation ensures stable electrical characteristics and thermal resistance for continuous operation at temperatures up to 90°C.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.
-
Sheath Color: Standard Black (other colors available on request).

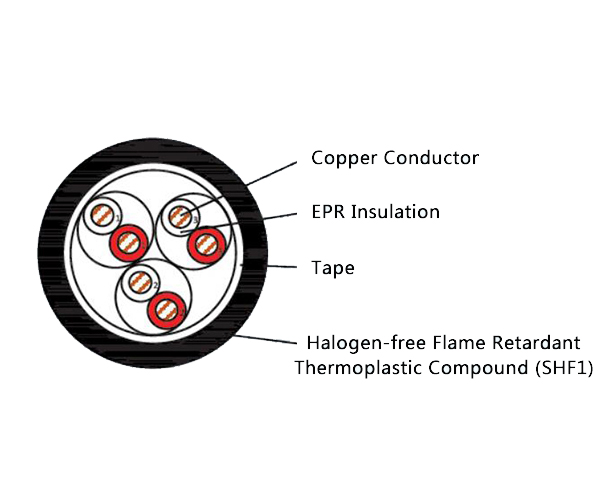

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | EPR (Ethylene Propylene Rubber) |
| Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This general-purpose LSHF cable is suitable for standard safety and communication circuits:
-
Marine & Offshore: Internal telecommunication, general alarm systems, and non-critical instrumentation wiring in accommodation areas, control rooms, and other spaces on ships and platforms where LSHF regulations apply.
-
Industrial & Commercial: General data transmission and control circuits in power plants, public buildings, and industrial facilities where the use of low smoke, zero halogen cables is specified for improved fire safety.
