Product Overview
The CEF90/NA EPR Insulated Armored Marine Power Cable is a heavy-duty fire-resistant cable engineered for safety-critical circuits in the most demanding environments. Its core is protected by mica glass tape and EPR insulation to ensure circuit integrity during fire, combined with a robust PCP inner sheath and galvanized steel wire braid armor for superior mechanical and corrosion protection. Designed without an outer sheath, it is ideal for installations where maximum durability and fire survival are paramount.
Key Applications
-
Marine & Offshore: Critical for emergency power, lighting, controls, and alarm systems on ships, oil platforms, and offshore structures, especially in exposed areas with high risk of mechanical damage, impact, or corrosion.
-
High-Risk Industrial: Essential in metallurgy, chemical processing, power plants, and mining for circuits that must maintain operation during a fire while being installed in harsh, abrasive, or chemically aggressive environments.
Compliance & Standards
This cable is manufactured to comply with the highest international standards for fire integrity and safety:
-
Design: IEC 60092-350, IEC 60092-353
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistance: IEC 60331
-
Flame Retardancy: IEC 60332-1, IEC 60332-3-22

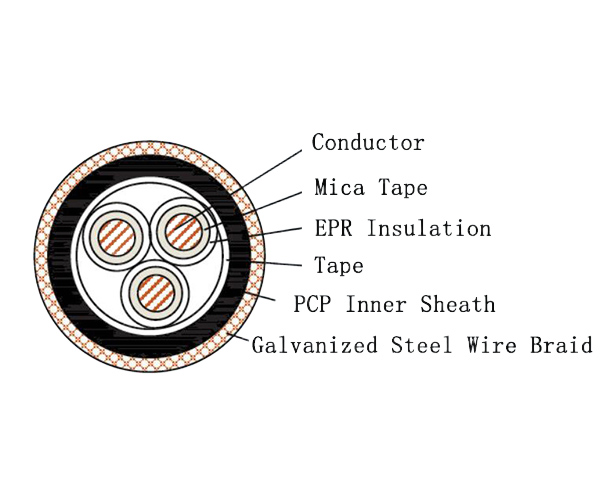

Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned or Plain Stranded, Annealed Copper Wire |
| Insulation | E | Mica Glass Tape + EPR (Fire-Resistant Layer) |
| Inner Sheath | F | PCP (Polychloroprene) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 0 | None (Armor serves as the final layer) |
| Sheath Color | / | Standard Black (Other colors available) |
| Flammability | NA | Fire Resistant |
Technical Specifications
-
Rated Voltage: 0.6/1 kV
-
Maximum Conductor Temperature: 90°C
-
Available Cross-Section: 0.75 mm² to 300 mm²
-
Number of Cores: 1 to 37 Cores
