CEPJ85/SC EPR Insulated Low-Smoke Halogen-Free Armored Marine Power Cable
Product Overview
CEPJ85/SC marine power cable is engineered with EPR insulation, double-layer cross-linked polyolefin (SHF2) sheathing, and copper wire braided armor. This construction provides superior thermal stability, mechanical protection, and environmental safety for the most demanding marine and offshore electrical installations.
Key Applications
-
Power, lighting and control systems for offshore structures and ships
-
Oil platforms and marine vessels requiring enhanced durability
-
Applications with strict requirements for thermal performance and mechanical strength
-
Metallurgy, chemical plants, power generation, and mining industries
Compliance & Standards
This cable is designed and tested in accordance with the following international standards:
-
IEC 60092-350, 353 - Marine cable design
-
IEC 60228 - Conductors
-
IEC 60092-360 - Insulation and sheath
-
IEC 60332-1 - Flame retardant (single cable)
-
IEC 60332-3-22 - Flame retardant (bunched cables)

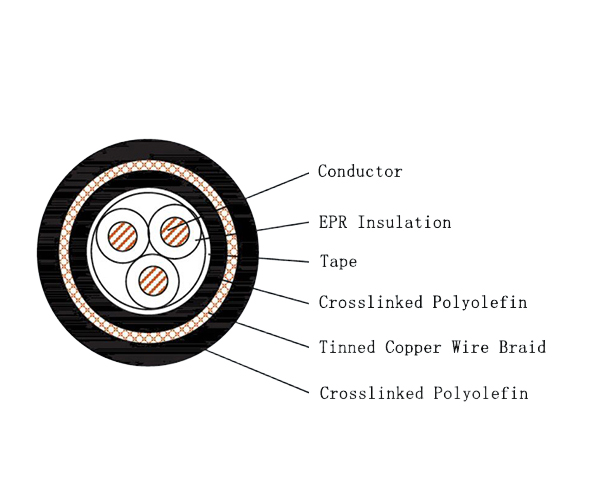

Cable Construction & Coding
| Component | Code | Material/Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned/Plain Stranded, Annealed Copper Wire |
| Insulation | E | EPR Insulated |
| Inner Sheath | PJ | Cross-linked Polyolefin (SHF2) |
| Armor | 8 | Tinned/Plain Copper Wire Braided |
| Outer Sheath | 5 | Cross-linked Polyolefin (SHF2) |
| Outer Sheath Color | / | Black or other Color |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Technical Specifications
-
Rated Voltage: 0.6/1kV
-
Working Temperature: 90℃
-
Cross Section Range: 0.75mm² to 300mm²
-
Number of Cores: 1 to 37 cores
-
Insulation Material: EPR (Ethylene Propylene Rubber)
-
Inner Sheath Material: Cross-linked Polyolefin (SHF2)
-
Outer Sheath Material: Cross-linked Polyolefin (SHF2)
-
Armor Type: Tinned/Plain Copper Wire Braided
-
Flame Retardancy: Compliant with IEC 60332-1 & IEC 60332-3-22
-
Key Safety Feature: Halogen Free Low Smoke Flame Retardant
