CEPJ80/SC EPR Insulated Low-Smoke Halogen-Free Marine Power Cable – SHF2 Sheath & Copper Braid (0.6/1kV)

IEC 60092-Series Cables HEPR/EPR Insulation Marine Shipboard Power Cables
Description

CEPJ80/SC EPR Insulated Low-Smoke Halogen-Free Marine Power Cable

Product Overview

CEPJ80/SC marine power cable combines EPR insulation with a cross-linked polyolefin (SHF2) inner sheath and copper wire braided armor, offering enhanced thermal stability and mechanical protection for demanding marine and offshore applications.

Key Applications

  • Power, lighting and control systems for offshore structures

  • Oil platforms and marine vessels

  • Applications requiring superior thermal and mechanical performance

  • Metallurgy, chemical plants, power generation, and mining industries

Compliance & Standards

This cable is designed and tested in accordance with the following international standards:

  • IEC 60092-350, 353 - Marine cable design

  • IEC 60228 - Conductors

  • IEC 60092-360 - Insulation and sheath

  • IEC 60332-1 - Flame retardant (single cable)

  • IEC 60332-3-22 - Flame retardant (bunched cables)

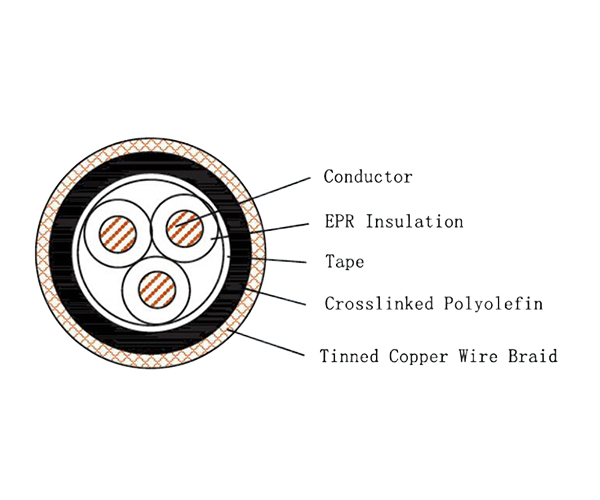

Cable Construction & Coding

Component Code Material/Description
Series Code C Marine Power Cable
Conductor / Tinned/Plain Stranded, Annealed Copper Wire
Insulation E EPR Insulated
Inner Sheath PJ Cross-linked Polyolefin (SHF2)
Armor 8 Tinned/Plain Copper Wire Braided
Outer Sheath 0 Without Outer Sheath
Flammability SC Halogen Free Low Smoke Flame Retardant

Technical Specifications

  • Rated Voltage: 0.6/1kV

  • Working Temperature: 90℃

  • Cross Section Range: 0.75mm² to 300mm²

  • Number of Cores: 1 to 37 cores

  • Insulation Material: EPR (Ethylene Propylene Rubber)

  • Inner Sheath Material: Cross-linked Polyolefin (SHF2)

  • Armor Type: Tinned/Plain Copper Wire Braided

  • Flame Retardancy: Compliant with IEC 60332-1 & IEC 60332-3-22

  • Key Safety Feature: Halogen Free Low Smoke Flame Retardant
