CEPJ90/SC EPR Insulated Low-Smoke Halogen-Free Armored Marine Power Cable
Product Overview
The CEPJ90/SC marine power cable is designed for demanding offshore environments, combining EPR insulation with a cross-linked polyolefin (SHF2) inner sheath and robust galvanized steel wire armor. This construction ensures exceptional mechanical protection, fire safety, and environmental resistance.
Key Applications
-
Power, lighting, and control systems for offshore platforms and marine vessels
-
Heavy-duty applications requiring superior mechanical and thermal protection
-
Environments with strict low-smoke, halogen-free, and flame-retardant requirements
-
Metallurgical plants, chemical facilities, power generation, and mining operations
Compliance & Standards
This cable complies with the following international standards:
-
IEC 60092-350, 353 – Marine cable design
-
IEC 60228 – Conductors
-
IEC 60092-360 – Insulation and sheath
-
IEC 60332-1 – Flame retardant (single cable)
-
IEC 60332-3-22 – Flame retardant (bunched cables)

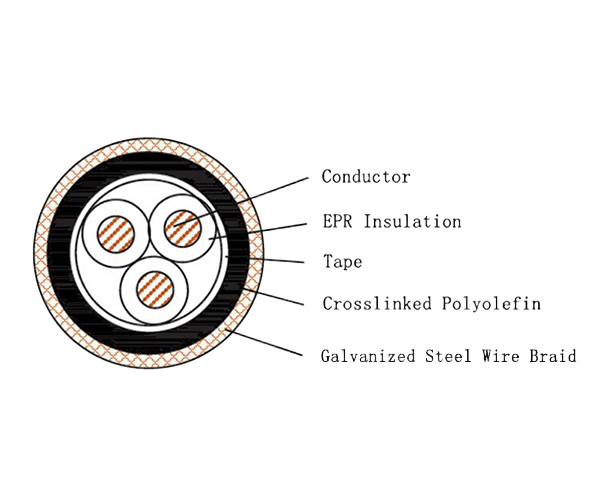

Cable Construction & Coding
| Component | Code | Material/Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned/Plain Stranded, Annealed Copper Wire |
| Insulation | E | EPR Insulated |
| Inner Sheath | PJ | Cross-linked Polyolefin (SHF2) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Technical Specifications
-
Rated Voltage: 0.6/1 kV
-
Working Temperature: 90°C
-
Cross-Section Range: 0.75 mm² ~ 300 mm²
-
Number of Cores: 1 ~ 37 cores
-
Insulation Material: EPR (Ethylene Propylene Rubber)
-
Inner Sheath Material: Cross-linked Polyolefin (SHF2)
-
Armor Type: Galvanized Steel Wire Braid
-
Outer Sheath: None
-
Flame Retardancy: IEC 60332-1 & IEC 60332-3-22 compliant
-
Special Feature: Halogen Free Low Smoke Flame Retardant (SC)
