S1/S5 RFOU(i) 250V Offshore Communication Cable | Individually Screened | NEK 606

NEK 606 Offshore Instrumentation and Signal Cable
Description

Product Overview

The S1/S5 RFOU(i) 250V Offshore Communication Cable represents advanced signal transmission technology for critical offshore applications. Designed with individual pair screening and full NEK 606 compliance, this cable ensures reliable data and signal transmission in the demanding conditions of marine environments while providing essential flame retardancy, halogen-free safety, and mud resistance.

Key Features & Benefits

  • Individual Pair Screening: Each twisted pair/triple features copper-backed polyester tape screening for superior EMI protection

  • Enhanced Signal Integrity: Advanced screening technology minimizes cross-talk and electromagnetic interference

  • Comprehensive Safety: Flame retardant, low smoke, and halogen-free construction ensures personnel safety

  • Mud Resistant Design: Special SHF Mud outer sheath withstands harsh offshore drilling conditions

  • Flexible Conductor Options: Available in 0.75mm², 1.5mm², and 2.5mm² to suit various signal requirements

  • Robust Protection: Tinned copper braid armour provides mechanical strength and reliable grounding

Applications

Critical signal transmission applications across offshore installations:

  • Process Control Systems: Sensor connections, valve control, and measurement devices

  • Safety Systems: Alarm circuits, emergency shutdown systems, and fire detection

  • Communication Networks: Data transmission, intercom systems, and platform communications

  • Monitoring Equipment: Environmental monitoring, equipment status, and process parameters

  • Drilling & Production: Jack-up rigs, semi-submersibles, FPSO vessels, and fixed platforms

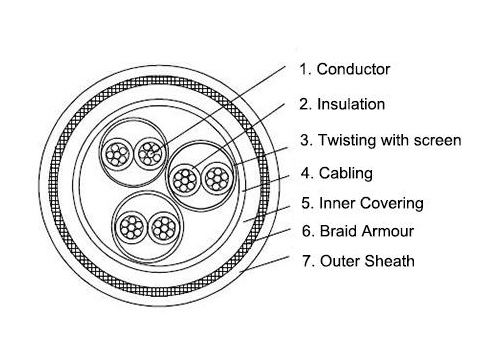

Construction

Precision-engineered for optimal signal performance:

  1. Conductor: Circular tinned stranded copper (0.75/1.5/2.5mm²) per IEC 60228

  2. Insulation: Ethylene Propylene Rubber (EPR) for reliable signal integrity

  3. Twisting with Screen:

    • Color-coded cores twisted as pairs/triples

    • Screened with copper-backed polyester tape and copper drain wire

    • Each pair/triple wrapped with polyester tape over screen

  4. Cabling: Cores laid up together and wrapped with polyester tape

  5. Inner Covering: Halogen-free flame retardant compound

  6. Braid Armour: Tinned copper wire braid per IEC 60092-350

  7. Outer Sheath: Halogen-free thermoset compound, Type SHF Mud

Specifications

  • Rated Voltage: 250V

  • Conductor Sizes: 0.75mm², 1.5mm², 2.5mm²

  • Standards Compliance: NEK 606, IEC 60228

  • Screening: Individual pair/triple screening

  • Flame Performance: Flame retardant

  • Smoke Emission: Low smoke density

  • Halogen Content: Halogen-free

  • Sheath Type: SHF Mud compound

  • Armour Type: Tinned copper braid

  • Temperature Rating: -40°C to +90°C operational
