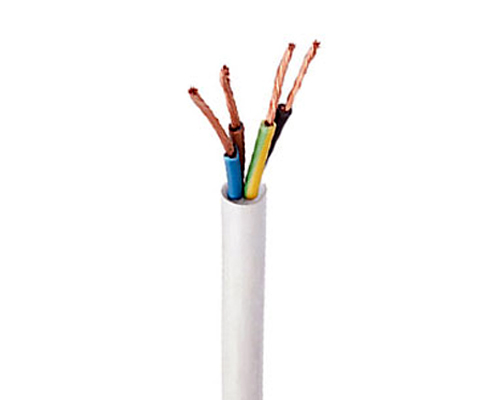

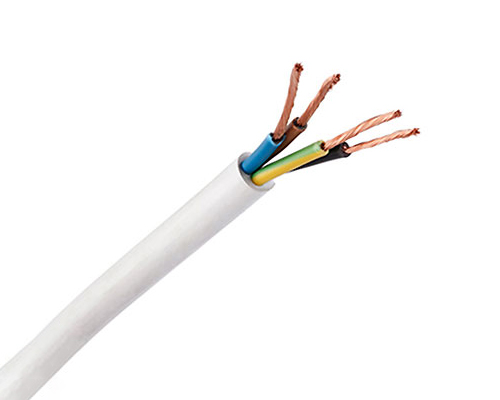

Product Overview
The LIYY cable is designed for signal transmission between electronic devices, in computer systems, or process control units. It features a Class 5 fine stranded bare copper conductor, PVC insulation, and a PVC outer sheath.
The cable is manufactured to DIN VDE 0812, with flame retardant performance according to IEC 60332-1.
Features & Benefits
-
Flexible Conductors: Class 5 fine stranded bare copper for ease of installation.
-
PVC Insulation and Sheath: Durable PVC compounds for reliable electrical and mechanical performance.
-
Flame Retardant: Complies with IEC 60332-1.
-
Voltage Rating: 250/250V.
-
Temperature Range: Fixed: -30°C to +80°C; Flexed: -5°C to +70°C.
-
Minimum Bending Radius: Fixed: 5 x overall diameter; Flexed: 7.5 x overall diameter.
-
Standard Compliant: DIN VDE 0812.
Typical Applications
-
Signal transmission between electronic devices
-
Computer systems
-
Process control units
Construction
-
Conductor: Class 5 Fine Stranded Bare Copper
-
Insulation: PVC (Polyvinyl chloride)
-
Outer Sheath: PVC (Polyvinyl chloride)
Technical Specifications
Electrical & Thermal Characteristics
| Parameter | Value |
|---|---|
| Voltage Rating Uo/U | 250/250V |
| Temperature Rating – Fixed | -30°C to +80°C |
| Temperature Rating – Flexed | -5°C to +70°C |
| Minimum Bending Radius – Fixed | 5 x overall diameter |
| Minimum Bending Radius – Flexed | 7.5 x overall diameter |
| Flame Retardant | IEC 60332-1 |
Parameter Table – 0.75 mm² Conductor Size
| No. of Cores x Cross-Section (mm²) | Nominal Overall Diameter (mm) | Approximate Net Weight of Cables (kg/km) | Maximum Conductor Resistance at 20°C (ohm/km) |
|---|---|---|---|
| 2 x 0.75 | 5.9 | 45 | 26 |
| 3 x 0.75 | 6.2 | 56 | 26 |
| 4 x 0.75 | 6.7 | 69 | 26 |
| 5 x 0.75 | 7.2 | 81 | 26 |
| 6 x 0.75 | 7.7 | 94 | 26 |
| 7 x 0.75 | 7.7 | 104 | 26 |
| 8 x 0.75 | 8.2 | 116 | 26 |
| 9 x 0.75 | 8.8 | 129 | 26 |
| 10 x 0.75 | 9.5 | 143 | 26 |
| 12 x 0.75 | 9.8 | 164 | 26 |
Parameter Table – 1.0 mm² Conductor Size
| No. of Cores x Cross-Section (mm²) | Nominal Overall Diameter (mm) | Approximate Net Weight of Cables (kg/km) | Maximum Conductor Resistance at 20°C (ohm/km) |
|---|---|---|---|
| 2 x 1.0 | 7.0 | 60 | 19.5 |
| 3 x 1.0 | 7.4 | 77 | 19.5 |
| 4 x 1.0 | 8.0 | 95 | 19.5 |
| 5 x 1.0 | 8.6 | 113 | 19.5 |
| 6 x 1.0 | 9.3 | 131 | 19.5 |
| 7 x 1.0 | 9.3 | 146 | 19.5 |
| 8 x 1.0 | 10.0 | 164 | 19.5 |
| 9 x 1.0 | 10.8 | 183 | 19.5 |
| 10 x 1.0 | 12.1 | 213 | 19.5 |
| 12 x 1.0 | 12.5 | 245 | 19.5 |
Parameter Table – 1.5 mm² Conductor Size
| No. of Cores x Cross-Section (mm²) | Nominal Overall Diameter (mm) | Approximate Net Weight of Cables (kg/km) | Maximum Conductor Resistance at 20°C (ohm/km) |
|---|---|---|---|
| 2 x 1.5 | 7.9 | 79 | 13.3 |
| 3 x 1.5 | 8.4 | 102 | 13.3 |
| 4 x 1.5 | 9.1 | 127 | 13.3 |
| 5 x 1.5 | 9.9 | 153 | 13.3 |
| 6 x 1.5 | 10.7 | 179 | 13.3 |
| 7 x 1.5 | 10.7 | 200 | 13.3 |
| 8 x 1.5 | 12.0 | 237 | 13.3 |
| 9 x 1.5 | 12.8 | 263 | 13.3 |
| 10 x 1.5 | 13.9 | 292 | 13.3 |
| 12 x 1.5 | 14.4 | 337 | 13.3 |
Note: All values are nominal as provided in the source specification. Actual dimensions and weights may vary within standard manufacturing tolerances.
Standards & Compliance
-
DIN VDE 0812
-
Flame Retardant: IEC 60332-1
Ordering Information
To request a quote or place an order, please provide the following information:
-
Product Type: LIYY Cable
-
Voltage Rating: 250/250V
-
Number of Cores and Cross-Section: e.g., 2 x 0.75 mm², 5 x 1.0 mm², 10 x 1.5 mm²
-
Conductor: Class 5 fine stranded bare copper
-
Insulation: PVC
-
Outer Sheath: PVC
-
Quantity: Total length in meters
