P17 BU 0.6/1KV Offshore Power Cable | Fire Resistant | NEK 606 Compliant

NEK 606 Offshore Power Cable31
Description

Product Overview

The P17 BU 0.6/1KV Offshore Power Cable delivers exceptional fire-resistant performance for critical low voltage power distribution in demanding offshore environments. Designed with advanced mica glass tape technology and full NEK 606 compliance, this cable ensures maintained circuit integrity during fire emergencies while providing the safety features required for modern offshore installations.

Key Features & Benefits

  • Superior Fire Resistance: Mica glass tape construction maintains circuit integrity under fire conditions

  • Enhanced Safety Performance: Fire resistant, low smoke, and halogen-free properties ensure maximum personnel safety

  • Compact Design: Optimized construction without additional armour reduces cable diameter and weight

  • Corrosion Resistant: Tinned copper conductor provides excellent resistance to harsh marine environments

  • Reliable Insulation: EPR insulation ensures stable electrical performance and thermal endurance

  • Full Compliance: Meets IEC 60228 Class 2 and NEK 606 offshore standards

Applications

Essential for critical power circuits where fire integrity is paramount:

  • Emergency Systems: Emergency lighting, alarm circuits, and communication systems

  • Safety-Critical Applications: Fire pumps, emergency shutdown systems, and vital control circuits

  • Drilling Platforms: Jack-up rigs, semi-submersible platforms, and drilling ships

  • Production Facilities: TLP, SPAR, fixed platforms, and FPSO/FSO vessels

  • Habitation Areas: Living quarters and safety zones on offshore installations

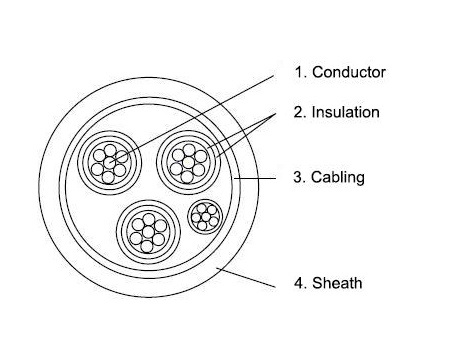

Construction

Streamlined construction optimized for fire performance:

  1. Conductor: Circular tinned stranded copper, IEC 60228 Class 2

  2. Insulation: Mica glass tape with EPR (Ethylene Propylene Rubber)

  3. Cabling: Cores laid up together and wrapped with polyester tape

  4. Outer Sheath: Halogen-free thermoset compound, Type SHF2

Specifications

  • Rated Voltage: 0.6/1KV

  • Fire Performance: Fire resistant (circuit integrity maintained during fire)

  • Standards Compliance: NEK 606, IEC 60228 Class 2

  • Insulation System: Mica glass tape + EPR

  • Smoke Emission: Low smoke density

  • Halogen Content: Halogen-free

  • Sheath Type: SHF2 compound

  • Conductor Type: Tinned copper

  • Installation: Suitable for fixed offshore installations and marine applications
