S2 RFOU(c) 250V Offshore Communication Cable | Collective Screened | NEK 606

NEK 606 Offshore Instrumentation and Signal Cable24
Description

Product Overview

The S2 RFOU(c) 250V Offshore Communication Cable delivers reliable signal transmission for critical offshore control and instrumentation systems. Featuring collective screening technology and full NEK 606 compliance, this cable ensures excellent electromagnetic protection while maintaining flame retardant and halogen-free safety standards essential for offshore operations.

Key Features & Benefits

  • Collective Screening Design: Overall screen with copper-backed polyester tape and drain wire provides effective EMI protection

  • Superior Signal Quality: Advanced screening technology ensures minimal interference in sensitive signal transmission

  • Enhanced Safety Features: Flame retardant and halogen-free construction protects personnel and equipment

  • Multiple Conductor Options: Available in 0.75mm², 1.5mm², and 2.5mm² to match various signal requirements

  • Robust Mechanical Protection: Tinned copper braid armour withstands harsh offshore conditions

  • Full Standards Compliance: Meets NEK 606, IEC 60228, and IEC 60092-350 requirements

Applications

Essential for reliable signal transmission in critical offshore systems:

  • Process Instrumentation: Sensor connections, measurement devices, and control systems

  • Safety & Alarm Systems: Emergency shutdown, fire detection, and alarm circuits

  • Control Networks: Valve control, actuator signals, and process automation

  • Communication Systems: Data transmission, inter-platform communications, and monitoring networks

  • Marine Installations: Drilling rigs, production platforms, FPSO vessels, and fixed installations

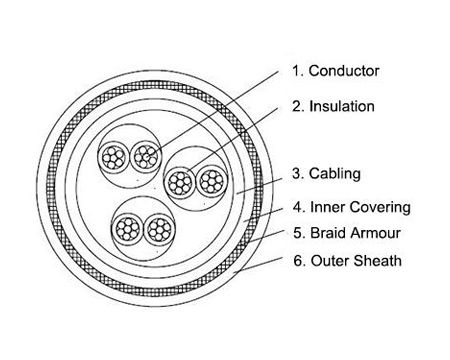

Construction

Optimized construction for reliable signal transmission:

  1. Conductor: Circular tinned stranded copper (0.75/1.5/2.5mm²) per IEC 60228

  2. Insulation: High-quality Ethylene Propylene Rubber (EPR)

  3. Twisting and Cabling:

    • Color-coded cores twisted as pairs/triples

    • Pairs/triples laid up collectively

    • Overall screened with copper-backed polyester tape and tinned copper drain wire

  4. Inner Covering: Halogen-free flame retardant compound

  5. Braid Armour: Tinned copper wire braid per IEC 60092-350

  6. Outer Sheath: Halogen-free thermoset compound, Type SHF2

Specifications

  • Rated Voltage: 250V

  • Conductor Sizes: 0.75mm², 1.5mm², 2.5mm²

  • Screening Type: Collective screening

  • Standards Compliance: NEK 606, IEC 60228, IEC 60092-350

  • Flame Performance: Flame retardant

  • Halogen Content: Halogen-free

  • Sheath Type: SHF2 compound

  • Armour Type: Tinned copper braid

  • Temperature Rating: Suitable for offshore temperature ranges

  • Installation: Fixed offshore installations and marine applications
