Type 1 Machine Cable – 1.1/1.1kV Screened Control Cable – V90-HT PVC Insulated

Machinery & Equipment Mining Cables
Description

Product Overview

Type 1 Machine Cable is typically used for interconnection of control boxes or motors on non-mobile or fixed apparatus. This cable is specifically designed for applications where exposure to heat is not a primary concern but where added mechanical strength and electrical screening are required for reliable performance in industrial environments.

Ratings & Technical Specifications

Parameter Specification
Temperature Rating -10°C to +90°C
Voltage Rating 1.1/1.1kV
Max Conductor DC Resistance at 20°C 13.7 Ω/km
Capacitance (Core - Core, 1kHz) 110 pF/m
Inductance (Parallel Cores, 1kHz) 0.67 µH/m
L/R Ratio 24.5 µH/Ω
Conductor Class Class 5 flexible
Core Colors White with black number

Type 1 Machine Cable

Cross Section(mm2) Stranding No./mm Diameter mm Rating Amps Weight kg/km
2*1.5 30/0.25 8.6 17 105
4*1.5 30/0.25 9.8 14 154
6*1.5 30/0.25 12.3 12 255
30*1.5 30/0.25 24.5 8 1056

Key Features & Benefits

  • Mechanical Strength: Engineered with added mechanical reinforcement for demanding fixed apparatus applications.

  • Screened Construction: Tinned annealed copper wire screening interwoven with high tensile poly-yarn provides effective electromagnetic interference protection.

  • High Temperature Rating: Rated for continuous operation up to 90°C with V90-HT PVC insulation.

  • Flexible Conductors: Class 5 stranded tinned annealed copper conductors for ease of installation and termination.

  • Gas Group 1 Compliance: Meets AS/NZS60079.1 requirements for hazardous area applications (Gas Group 1).

  • Flame Retardant: Complies with IEC 60332-1 for flame propagation resistance.

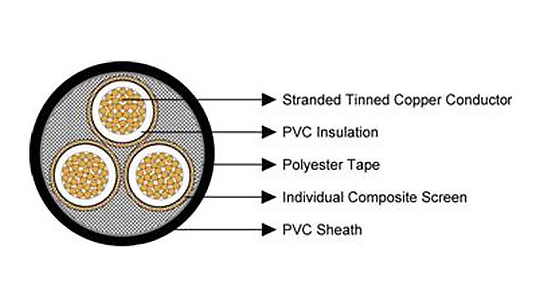

Construction Details

  1. Conductor: Tinned annealed copper wire, Class 5 stranding for flexibility and corrosion resistance.

  2. Insulation: V90-HT PVC (High Temperature PVC) - Rated for 90°C operation, providing reliable electrical insulation in elevated temperature environments.

  3. Screening: Tinned annealed copper wire interwoven with high tensile poly-yarn, offering both electromagnetic shielding and mechanical reinforcement.

  4. Outer Sheath: 5V-90 PVC - Heavy duty PVC sheath rated for 90°C, providing robust protection against mechanical damage and environmental exposure.

  5. Core Identification: White cores with black numbering for easy identification and termination.

Standards Compliance

This cable is designed, manufactured, and tested to meet the following Australian/New Zealand and International standards:

Standard Description
AS/NZS 1125 Conductors in insulated electric cables and flexible cords
AS/NZS 1972 Electric cables - Insulated - For working voltages up to 0.6/1 kV
AS/NZS 3808 Insulating and sheathing materials for electric cables
AS/NZS 60079.1 Explosive atmospheres - Equipment protection by flameproof enclosures "d" (Gas Group 1)
AS/NZS 1660.5.6 Test methods for electric cables - Cords - Fire tests
IEC 60228 Conductors of insulated cables
IEC 60332-1 Tests on electric and optical fibre cables - Test for vertical flame propagation

Typical Applications

  • Interconnection of control boxes on fixed industrial apparatus

  • Motor connection wiring for non-mobile equipment

  • Fixed installation in industrial control panels and switchgear

  • Applications requiring added mechanical strength and electrical screening

  • Hazardous area installations requiring Gas Group 1 compliance

  • Industrial machinery wiring where 90°C temperature rating is required

Installation Environments

Suitable for fixed installation in:

  • Industrial control cabinets and panels

  • Cable trays and ladder racks

  • Conduits and ducting systems

  • Fixed apparatus interconnections

  • Hazardous area locations (Gas Group 1)
