Product Overview
The CHEVP82/SA is a versatile screened marine communication cable designed for applications requiring reliable signal transmission with effective EMI protection and flexible armor. It combines EPR insulation, a dedicated metallic screen, a flexible tinned copper wire braid armor, and a durable PVC outer sheath. This configuration provides an excellent balance of electrical shielding, mechanical protection, and flexibility for dynamic or space-constrained installations in marine and industrial settings.
Key Features & Benefits
-
Superior EMI/RFI Shielding & Flexible Armor: The dual-layer protection of a tinned copper braid or foil screen plus a tinned copper wire braid armor (Code 8) offers outstanding protection against electromagnetic interference while maintaining cable flexibility for easier routing and installation.
-
Durable External Protection: The robust PVC outer sheath (Code 2) provides reliable resistance to abrasion, oils, and environmental factors, suitable for both indoor and sheltered outdoor use.
-
Enhanced Signal Integrity & Grounding: The continuous copper braid armor acts as an excellent shield and provides a reliable ground path, crucial for sensitive instrumentation and communication circuits.
-
Flame Retardant & Durable: Complies with IEC 60332 flame retardancy standards. EPR insulation ensures long-term thermal stability (90°C) and reliability.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.
-
Outer Sheath Color: Standard Black (other colors available on request).

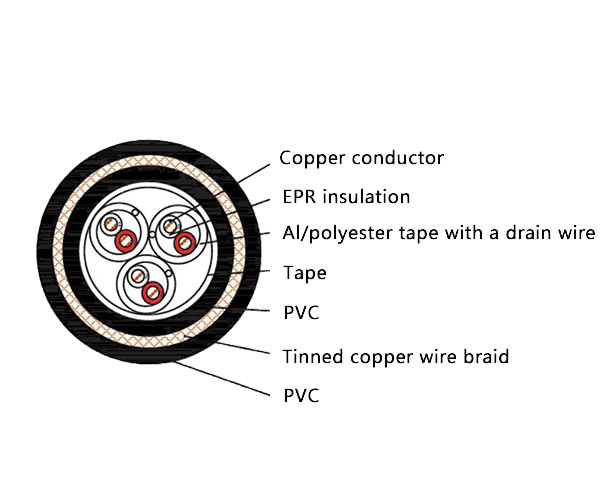

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | EPR (Ethylene Propylene Rubber) |
| Inner Sheath | V | PVC |
| Screen | P | Tinned Copper Wire Braid, or Alu/Polyester Tape + Copper Drain Wire |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 2 | PVC Outer Sheath |
| Flammability | SA | Bunched Cables Flame Retardant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Low Smoke Emission: IEC 61034
Applications
This flexible screened and armored cable is ideal for:
-
Marine & Offshore: Instrumentation, telecommunication, and control systems on ships and offshore platforms, especially where flexibility and high-quality EMI shielding are required in control rooms, console wiring, or moving equipment.
-
Industrial: Sensitive data acquisition, process control, and computer networks in power plants, factories, and mining operations where electrical noise is a concern and cables may need to be flexed during installation or maintenance.
