Product Overview
FA-SPYC is a flame-retardant shipboard power cable rated at 0.6/1kV, designed for fixed installations on ships and offshore units. It features a tinned copper conductor, ethylene propylene rubber (EPR) insulation, PVC sheath, and galvanized steel wire braid armor. Compliant with international standards, it ensures reliability in demanding marine environments.
Key Features
-
Rated Voltage: 0.6/1kV
-
Conductor: Tinned annealed stranded copper (IEC 60228, Class 2)
-
Insulation: 85°C Ethylene Propylene Rubber (EPR)
-
Sheath: Flame-Retardant PVC
-
Armor: Galvanized Steel Wire Braid
-
Flame Retardancy: Complies with IEC 60332-1 & IEC 60332-3 Cat. AF (FA-Type)
-
Applications: Fixed electrical installations on ships, offshore platforms, and marine structures.

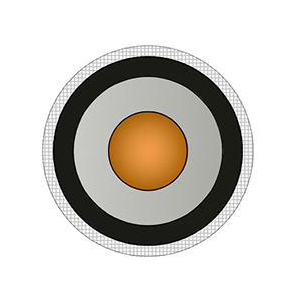

Cable Construction
1.Conductor:Tinned Annealed Stranded Copper,Class2 according to IEC60228
2.Insulation:85°C (EPR),Ethylene Propylene Rubber
3.Sheath:(PVC),Polyvinyl Chloride
4.Armor:Galvanized Steel Wire Braid
Technical Specifications (FA-SPYC/SPYCB)
| Cross-Section (mm²) | Conductor (No./mm) | Insulation Thickness (mm) | Bedding Thickness (mm) | Diameter over Bedding (mm) | Armor Diameter (mm) | Nominal Overall Diameter (mm) | Tolerance (mm) | Approx. Weight (kg/km) |
|---|---|---|---|---|---|---|---|---|
| 1.5 | 7/0.53 | 1.0 | 1.0 | 5.9 | 0.3 | 7.2 | ±0.4 | 100 |
| 2.5 | 7/0.67 | 1.0 | 1.0 | 6.3 | 0.3 | 7.8 | ±0.4 | 120 |
| 4 | 7/0.85 | 1.0 | 1.0 | 6.9 | 0.3 | 8.2 | ±0.4 | 140 |
| 6 | 7/1.04 | 1.0 | 1.0 | 7.4 | 0.3 | 8.7 | ±0.4 | 170 |
| 10 | 7/1.35 | 1.0 | 1.1 | 8.6 | 0.3 | 9.9 | ±0.4 | 225 |
| 16 | 7/1.70 | 1.0 | 1.1 | 9.6 | 0.3 | 10.9 | ±0.4 | 300 |
| 25 | 7/2.14 | 1.2 | 1.2 | 11.5 | 0.3 | 12.8 | ±0.5 | 425 |
| 35 | 7/2.52 | 1.2 | 1.2 | 12.7 | 0.3 | 14.0 | ±0.6 | 535 |
| 50 | 19/1.78 | 1.4 | 1.3 | 14.6 | 0.3 | 15.9 | ±0.6 | 695 |
| 70 | 19/2.14 | 1.6 | 1.4 | 17.2 | 0.3 | 18.5 | ±0.7 | 960 |
| 95 | 19/2.52 | 1.6 | 1.5 | 19.3 | 0.3 | 20.6 | ±0.8 | 1250 |
| 120 | 37/2.03 | 1.6 | 1.5 | 20.9 | 0.3 | 22.2 | ±0.9 | 1510 |
| 150 | 37/2.25 | 1.8 | 1.6 | 23.1 | 0.3 | 24.4 | ±1.0 | 1830 |
| 185 | 37/2.52 | 2.0 | 1.7 | 25.5 | 0.3 | 26.8 | ±1.1 | 2250 |
| 240 | 61/2.25 | 2.2 | 1.8 | 28.8 | 0.3 | 30.1 | ±1.2 | 2910 |
| 300 | 61/2.52 | 2.4 | 1.9 | 31.8 | 0.4 | 33.6 | ±1.3 | 3680 |
Standards & Certifications
-
JIS C 3410-1999: Japanese Industrial Standard for Shipboard Cables
-
IEC 60092-350: Electrical Installations in Ships - Power Cables
-
IEC 60332-1: Test for Vertical Flame Propagation
-
IEC 60332-3 Cat. AF: Flame Retardancy for Bunched Cables (FA-Type)
Applications
-
Fixed electrical wiring on various vessels (passenger ships, cargo ships, etc.)
-
Offshore drilling platforms and floating units
-
Port machinery and shore power systems
-
Other marine and industrial applications requiring flame-retardant and robust power cables.
