Product Series: TIBS/SIBS
Standards: IEC 60092-350, -351, -354, -359
Voltage Range: 3.6/6kV to 26/35kV
Product Overview
TIBS/SIBS Medium Voltage Marine Power Cables are engineered for reliable power distribution in marine vessels. Featuring a triple-layer screening system and enhanced PVC sheath, these cables ensure optimal performance and safety for medium voltage applications across various ship types.
Key Applications
-
Vessel Types: Cargo ships, Passenger vessels, Special-purpose vessels
-
Installation: Fixed shipboard power systems
-
Voltage Level: Medium voltage power distribution networks
Compliance Standards
-
Primary Standards: IEC 60092-350, -351, -354, -359
-
Fire Performance: IEC 60332-1, -3 (Category A)
-
Quality Assurance: Full compliance with marine classification society requirements
Product Features
-
Advanced Screening: Triple-layer protection with semi-conducting and metallic screens
-
Thermal Endurance: 90°C continuous operating temperature
-
Fire Safety: Flame retardant construction per IEC 60332
-
Marine Durability: Enhanced PVC sheath for harsh marine environments
-
Flexible Design: Multiple voltage ratings from 3.6/6kV to 26/35kV

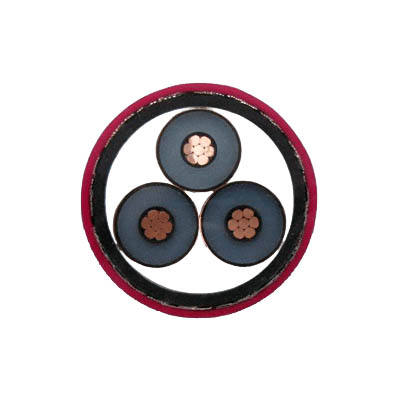

Cable Construction
-
Conductor: Tinned Annealed Copper wire
-
Conductor Screen: Semi-Conducting tape plus compound
-
Insulation: EPR (Ethylene Propylene Rubber)
-
Insulation Screen: Semi-conducting compound plus tape
-
Metallic Screen: Annealed copper tape
-
Inner Covering: High Modulus PVC
-
Sheath: Enhanced PVC
Technical Specifications
Electrical Characteristics
| Parameter | Specification |
|---|---|
| Rated Voltage | 3.6/6(7.2)kV, 6/10(12)kV, 8.7/15(17.5)kV, 12/20(24)kV, 18/30(36)kV, 26/35kV |
| Operating Temperature | 90°C long-term |
| Test Voltage | AC 3.5kV/5 minutes (no puncture) |
Minimum Bending Radius
| Cable Structure | Cable Outer Diameter | Minimum Bending Radius |
|---|---|---|
| Metal Braided Armored | Any | 6 × D |
| Non-Armored | D ≤ 25mm | 4 × D |
| Non-Armored | D > 25mm | 6 × D |
Quality Assurance
-
Rigorous Testing: Each cable undergoes high-voltage withstand testing
-
Material Quality: Premium tinned copper conductors and EPR insulation
-
Performance Verified: Meets all specified IEC standards for marine applications
-
Reliability Proven: Designed for long service life in marine environments
