IEC 0.6/1kV XLPE Insulation Steel Wire Armoured (SWA) Power Cable
Product Overview
The IEC 0.6/1kV XLPE Insulation Steel Wire Armoured (SWA) Power Cable is designed for fixed installation indoors and outdoors in cable ducts or directly in the ground. The cable is provided with mechanical protection and is therefore suitable for external use, direct burial, and areas where sudden mechanical stress is expected.
It is manufactured with a plain annealed copper or aluminium Class 2 conductor, XLPE insulation, and a galvanized steel wire armour (SWA) for multi-core versions. Single-core versions use aluminium wire armour (AWA). PVC inner and outer sheaths are standard, with LSZH polyolefin, flame retardant, and termite resistant options available.
Features & Benefits
-
Mechanical Protection: Steel wire armour for multi-core cables and aluminium wire armour for single-core cables.
-
XLPE Insulation: Cross-linked polyethylene insulation for reliable electrical performance.
-
High Operating Temperature: Maximum conductor temperature at normal operation: 90°C.
-
Short-Circuit Withstand: Maximum conductor temperature at short circuit: 250°C (max. 5 s duration).
-
Voltage Rating: AC 0.6/1kV.
-
Test Voltage: AC 3.5kV for 5 minutes, no breakdown.
-
Installation Flexibility: Suitable for indoor, outdoor, cable duct, and direct burial installations.
-
Optional Sheath Materials: LSZH polyolefin, flame retardant, and termite resistant options available.
-
Conductor Options: Plain annealed copper or aluminium, Class 2, conforming to IEC 60228. Tinned copper wire optional.
Typical Applications
-
Fixed installation indoors and outdoors
-
Cable ducts
-
Direct burial in the ground
-
External use
-
Areas where sudden mechanical stress is expected

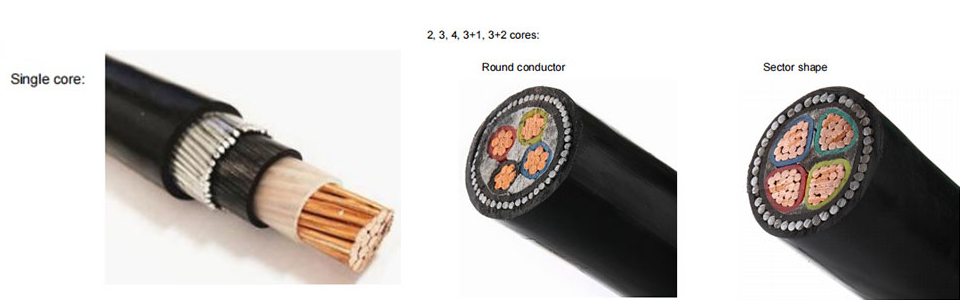

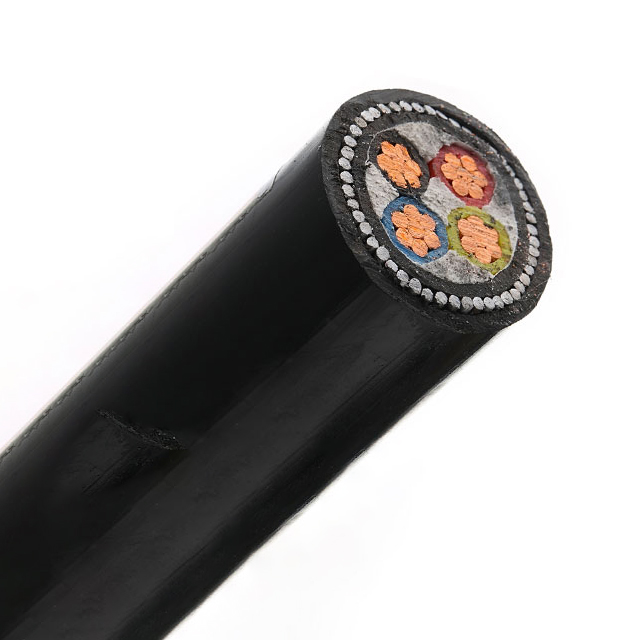

Construction
-
Conductor: Plain annealed copper or aluminium wires, Class 2, conforming to IEC 60228. Available in single-core and multiple-core versions. For multi-cores, the conductor is sector-shaped for section area larger than 35 mm². Tinned copper wire is optional.
-
Insulation: XLPE (Cross-linked polyethylene).
-
Inner Sheath: PVC (polyvinyl chloride). LSZH polyolefin is optional.
-
Armour: Aluminium wire (AWA) for single-core cable. Galvanized steel wire (SWA) for multi-core.
-
Outer Sheath: PVC (polyvinyl chloride). Flame retardant optional; termite resistant optional; LSZH polyolefin optional.
Technical Specifications
Electrical Characteristics
| Parameter | Value |
|---|---|
| Working Temperature – Normal Operation | 90°C max. conductor temperature |
| Working Temperature – Short Circuit | 250°C max. (max. 5 s duration) |
| Voltage | AC 0.6/1kV |
| Test Voltage | AC 3.5kV for 5 min, not break down |
| Min. Bending Radius – 1.5 mm² to 16 mm² | Fixed: 6 x overall diameter |
| Min. Bending Radius – 25 mm² and above | Fixed: 8 x overall diameter |
Standards
-
IEC 60502-1
-
BS5467
Parameter Tables
Note: Values are as provided in the source specification. Some source formatting has been normalized for readability (e.g., 125 = 1.25, 12 = 1.2, 0268 = 0.268). Some source values appear inconsistent; please confirm final construction data at the time of ordering.
Single Core Cables
| Size (mm²) | Min. Strands of Conductor | Insulation Thickness (mm) | Inner-Sheath Thickness (mm) | Diameter of Armour Wire (mm) | Outer-Sheath Thickness (mm) | Approx. Diameter of Cable (mm) | Max. DC Resistance at 20°C (Ω/km) |
|---|---|---|---|---|---|---|---|
| 1X1.5 | 7 | 0.7 | 1.0 | 0.80 | 1.8 | 11.1 | 12.1 |
| 1X2.5 | 7 | 0.7 | 1.0 | 0.80 | 1.8 | 11.5 | 7.41 |
| 1X4.0 | 7 | 0.7 | 1.0 | 0.80 | 1.8 | 12.1 | 4.61 |
| 1X6.0 | 7 | 0.7 | 1.0 | 0.80 | 1.8 | 12.6 | 3.08 |
| 1X10 | 7 | 0.7 | 1.0 | 0.80 | 1.8 | 13.4 | 1.83 |
| 1X16 | 7 | 0.7 | 1.0 | 0.80 | 1.8 | 14.4 | 1.15 |
| 1X25 | 7 | 0.9 | 1.0 | 0.80 | 1.8 | 16.0 | 0.727 |
| 1X35 | 7 | 0.9 | 1.0 | 0.80 | 1.8 | 17.0 | 0.524 |
| 1X50 | 7 | 1.0 | 1.0 | 1.25 | 1.8 | 19.4 | 0.387 |
| 1X70 | 12 | 1.1 | 1.0 | 1.25 | 1.8 | 21.3 | 0.268 |
| 1X95 | 15 | 1.1 | 1.0 | 1.25 | 1.8 | 22.9 | 0.193 |
| 1X120 | 18 | 1.2 | 1.0 | 1.60 | 1.8 | 25.2 | 0.153 |
| 1X150 | 18 | 1.4 | 1.0 | 1.60 | 1.8 | 27.2 | 0.124 |
| 1X185 | 30 | 1.6 | 1.0 | 1.60 | 1.8 | 29.2 | 0.0991 |
| 1X240 | 34 | 1.7 | 1.0 | 1.60 | 1.9 | 31.8 | 0.0754 |
| 1X300 | 34 | 1.8 | 1.0 | 1.60 | 1.9 | 34.2 | 0.0601 |
| 1X400 | 53 | 2.0 | 1.2 | 2.00 | 2.1 | 39.4 | 0.0470 |
| 1X500 | 53 | 2.2 | 1.2 | 2.00 | 2.2 | 42.7 | 0.0366 |
| 1X630 | 53 | 2.4 | 1.2 | 2.00 | 2.3 | 46.8 | 0.0283 |
2 Cores Cables
| Size (mm²) | Min. Strands of Conductor | Insulation Thickness (mm) | Inner-Sheath Thickness (mm) | Diameter of Armour Wire (mm) | Outer-Sheath Thickness (mm) | Approx. Diameter of Cable (mm) | Max. DC Resistance at 20°C (Ω/km) |
|---|---|---|---|---|---|---|---|
| 2X1.5 | 7 | 0.7 | 1.0 | 0.80 | 1.8 | 14.5 | 12.1 |
| 2X2.5 | 7 | 0.7 | 1.0 | 0.80 | 1.8 | 15.4 | 7.41 |
| 2X4.0 | 7 | 0.7 | 1.0 | 0.80 | 1.8 | 16.5 | 4.61 |
| 2X6.0 | 7 | 0.7 | 1.0 | 0.80 | 1.8 | 17.6 | 3.08 |
| 2X10 | 7 | 0.7 | 1.0 | 1.25 | 1.8 | 19.9 | 1.83 |
| 2X16 | 7 | 0.7 | 1.0 | 1.25 | 1.8 | 21.9 | 1.15 |
| 2X25 | 7 | 0.9 | 1.0 | 1.60 | 1.8 | 25.8 | 0.727 |
| 2X35 | 7 | 0.9 | 1.0 | 1.60 | 1.8 | 24.7 | 0.524 |
| 2X50 | 7 | 1.0 | 1.0 | 1.60 | 1.8 | 27.3 | 0.387 |
| 2X70 | 12 | 1.1 | 1.0 | 1.60 | 2.0 | 30.2 | 0.268 |
| 2X95 | 15 | 1.1 | 1.2 | 2.00 | 2.1 | 35.0 | 0.193 |
| 2X120 | 18 | 1.2 | 1.2 | 2.00 | 2.2 | 37.5 | 0.153 |
| 2X150 | 18 | 1.4 | 1.2 | 2.00 | 2.3 | 40.9 | 0.124 |
| 2X185 | 30 | 1.6 | 1.4 | 2.50 | 2.5 | 45.8 | 0.0991 |
| 2X240 | 34 | 1.7 | 1.4 | 2.50 | 2.7 | 50.0 | 0.0754 |
| 2X300 | 34 | 1.8 | 1.6 | 2.50 | 2.8 | 54.4 | 0.0601 |
| 2X400 | 53 | 2.0 | 1.6 | 2.50 | 3.1 | 60.0 | 0.0470 |
3 Cores Cables
| Size (mm²) | Min. Strands of Conductor | Insulation Thickness (mm) | Inner-Sheath Thickness (mm) | Diameter of Armour Wire (mm) | Outer-Sheath Thickness (mm) | Approx. Diameter of Cable (mm) | Max. DC Resistance at 20°C (Ω/km) |
|---|---|---|---|---|---|---|---|
| 3X1.5 | 7 | 0.7 | 1.0 | 0.80 | 1.8 | 15.0 | 12.1 |
| 3X2.5 | 7 | 0.7 | 1.0 | 0.80 | 1.8 | 15.9 | 7.41 |
| 3X4.0 | 7 | 0.7 | 1.0 | 0.80 | 1.8 | 17.1 | 4.61 |
| 3X6.0 | 7 | 0.7 | 1.0 | 0.80 | 1.8 | 18.3 | 3.08 |
| 3X10 | 7 | 0.7 | 1.0 | 1.25 | 1.8 | 20.8 | 1.83 |
| 3X16 | 7 | 0.7 | 1.0 | 1.25 | 1.8 | 22.9 | 1.15 |
| 3X25 | 7 | 0.9 | 1.0 | 1.60 | 1.8 | 27.1 | 0.727 |
| 3X35 | 7 | 0.9 | 1.0 | 1.60 | 1.8 | 28.1 | 0.524 |
| 3X50 | 7 | 1.0 | 1.0 | 1.60 | 1.9 | 31.9 | 0.387 |
| 3X70 | 12 | 1.1 | 1.2 | 2.00 | 2.0 | 36.5 | 0.268 |
| 3X95 | 15 | 1.1 | 1.2 | 2.00 | 2.2 | 40.5 | 0.193 |
| 3X120 | 18 | 1.2 | 1.2 | 2.00 | 2.3 | 43.4 | 0.153 |
| 3X150 | 18 | 1.4 | 1.4 | 2.50 | 2.5 | 49.0 | 0.124 |
| 3X185 | 30 | 1.6 | 1.4 | 2.50 | 2.6 | 53.2 | 0.0991 |
| 3X240 | 34 | 1.7 | 1.6 | 2.50 | 2.8 | 58.6 | 0.0754 |
| 3X300 | 34 | 1.8 | 1.6 | 2.50 | 3.0 | 63.8 | 0.0601 |
| 3X400 | 53 | 2.0 | 1.6 | 2.50 | 3.2 | 70.1 | 0.0470 |
4 Cores Cables
| Size (mm²) | Min. Strands of Conductor | Insulation Thickness (mm) | Inner-Sheath Thickness (mm) | Diameter of Armour Wire (mm) | Outer-Sheath Thickness (mm) | Approx. Diameter of Cable (mm) | Max. DC Resistance at 20°C (Ω/km) |
|---|---|---|---|---|---|---|---|
| 4X1.5 | 7 | 0.7 | 1.0 | 0.80 | 1.8 | 15.7 | 12.1 |
| 4X2.5 | 7 | 0.7 | 1.0 | 0.80 | 1.8 | 16.8 | 7.41 |
| 4X4.0 | 7 | 0.7 | 1.0 | 0.80 | 1.8 | 18.1 | 4.61 |
| 4X6.0 | 7 | 0.7 | 1.0 | 1.25 | 1.8 | 20.3 | 3.08 |
| 4X10 | 7 | 0.7 | 1.0 | 1.25 | 1.8 | 22.1 | 1.83 |
| 4X16 | 7 | 0.7 | 1.0 | 1.60 | 1.8 | 25.2 | 1.15 |
| 4X25 | 7 | 0.9 | 1.0 | 1.60 | 1.8 | 29.1 | 0.727 |
| 4X35 | 7 | 0.9 | 1.0 | 1.60 | 1.9 | 31.5 | 0.524 |
| 4X50 | 7 | 1.0 | 1.0 | 1.60 | 2.0 | 35.5 | 0.387 |
| 4X70 | 12 | 1.1 | 1.2 | 2.00 | 2.2 | 40.4 | 0.268 |
| 4X95 | 15 | 1.1 | 1.2 | 2.00 | 2.3 | 45.1 | 0.193 |
| 4X120 | 18 | 1.2 | 1.4 | 2.50 | 2.5 | 50.2 | 0.153 |
| 4X150 | 18 | 1.4 | 1.4 | 2.50 | 2.6 | 54.6 | 0.124 |
| 4X185 | 30 | 1.6 | 1.4 | 2.50 | 2.8 | 59.7 | 0.0991 |
| 4X240 | 34 | 1.7 | 1.6 | 2.50 | 3.0 | 66.1 | 0.0754 |
| 4X300 | 34 | 1.8 | 1.6 | 2.50 | 3.2 | 71.8 | 0.0601 |
| 4X400 | 53 | 2.0 | 1.8 | 3.15 | 3.5 | 81.0 | 0.0470 |
5 Cores Cables
| Size (mm²) | Min. Strands of Conductor | Insulation Thickness (mm) | Inner-Sheath Thickness (mm) | Diameter of Armour Wire (mm) | Outer-Sheath Thickness (mm) | Approx. Diameter of Cable (mm) | Max. DC Resistance at 20°C (Ω/km) |
|---|---|---|---|---|---|---|---|
| 5X1.5 | 7 | 0.7 | 1.0 | 0.80 | 1.8 | 16.6 | 12.1 |
| 5X2.5 | 7 | 0.7 | 1.0 | 0.80 | 1.8 | 17.8 | 7.41 |
| 5X4.0 | 7 | 0.7 | 1.0 | 1.25 | 1.8 | 20.1 | 4.61 |
| 5X6.0 | 7 | 0.7 | 1.0 | 1.25 | 1.8 | 21.6 | 3.08 |
| 5X10 | 7 | 0.7 | 1.0 | 1.25 | 1.8 | 23.6 | 1.83 |
| 5X16 | 7 | 0.7 | 1.0 | 1.60 | 1.8 | 27.0 | 1.15 |
| 5X25 | 7 | 0.9 | 1.0 | 1.60 | 1.8 | 31.8 | 0.727 |
| 5X35 | 7 | 0.9 | 1.0 | 1.60 | 1.9 | 34.7 | 0.524 |
| 5X50 | 7 | 1.0 | 1.0 | 2.00 | 2.1 | 39.8 | 0.387 |
| 5X70 | 12 | 1.1 | 1.2 | 2.00 | 2.3 | 44.0 | 0.268 |
| 5X95 | 15 | 1.1 | 1.2 | 2.50 | 2.4 | 50.7 | 0.193 |
| 5X120 | 18 | 1.2 | 1.4 | 2.50 | 2.6 | 54.9 | 0.153 |
| 5X150 | 18 | 1.4 | 1.4 | 2.50 | 2.8 | 59.9 | 0.124 |
| 5X185 | 30 | 1.6 | 1.4 | 2.50 | 3.0 | 65.9 | 0.0991 |
| 5X240 | 34 | 1.7 | 1.6 | 2.50 | 3.2 | 72.4 | 0.0754 |
| 5X300 | 34 | 1.8 | 1.6 | 3.15 | 3.4 | 80.6 | 0.0601 |
| 5X400 | 53 | 2.0 | 1.8 | 3.15 | 3.8 | 90.2 | 0.0470 |
3+1 Cores Cables
| Size (mm²) | Min. Strands of Conductor | Insulation Thickness (mm) | Inner-Sheath Thickness (mm) | Diameter of Armour Wire (mm) | Outer-Sheath Thickness (mm) | Approx. Diameter of Cable (mm) | Max. DC Resistance at 20°C (Ω/km) |
|---|---|---|---|---|---|---|---|
| 3X2.5+1X1.5 | 7/7 | 0.7/0.7 | 1.0 | 0.80 | 1.8 | 16.5 | 7.41/12.1 |
| 3X4.0+1X2.5 | 7/7 | 0.7/0.7 | 1.0 | 0.80 | 1.8 | 17.8 | 4.61/7.41 |
| 3X6.0+1X4 | 7/7 | 0.7/0.7 | 1.0 | 1.25 | 1.8 | 20.0 | 3.08/4.61 |
| 3X10+1X6 | 7/7 | 0.7/0.7 | 1.0 | 1.25 | 1.8 | 21.7 | 1.83/3.08 |
| 3X16+1X10 | 7/7 | 0.7/0.7 | 1.0 | 1.25 | 1.8 | 23.9 | 1.15/1.83 |
| 3X25+1X16 | 7/7 | 0.9/0.7 | 1.0 | 1.60 | 1.8 | 28.1 | 0.727/1.15 |
| 3X35+1X16 | 7/7 | 0.9/0.7 | 1.0 | 1.60 | 1.8 | 29.8 | 0.524/0.727 |
| 3X50+1X25 | 7/7 | 1.0/0.9 | 1.0 | 1.60 | 1.9 | 34.0 | 0.387/0.727 |
| 3X70+1X35 | 12/7 | 1.1/0.9 | 1.2 | 2.00 | 2.1 | 38.8 | 0.268/0.524 |
| 3X95+1X50 | 15/12 | 1.1/1.0 | 1.2 | 2.00 | 2.2 | 43.2 | 0.193/0.387 |
| 3X120+1X70 | 18/12 | 1.2/1.1 | 1.2 | 2.00 | 2.4 | 46.8 | 0.153/0.268 |
| 3X150+1X70 | 18/12 | 1.4/1.1 | 1.4 | 2.50 | 2.5 | 52.6 | 0.124/0.268 |
| 3X185+1X95 | 30/15 | 1.6/1.1 | 1.4 | 2.50 | 2.7 | 56.9 | 0.0991/0.193 |
| 3X240+1X120 | 34/18 | 1.7/1.2 | 1.6 | 2.50 | 2.9 | 63.2 | 0.0754/0.153 |
| 3X300+1X150 | 34/18 | 1.8/1.4 | 1.6 | 2.50 | 3.0 | 68.7 | 0.0991/0.193 |
| 3X400+1X185 | 53/30 | 2.0/1.6 | 1.6 | 3.15 | 3.3 | 79.0 | 0.0754/0.153 |
3+2 Cores Cables
| Size (mm²) | Min. Strands of Conductor | Insulation Thickness (mm) | Inner-Sheath Thickness (mm) | Diameter of Armour Wire (mm) | Outer-Sheath Thickness (mm) | Approx. Diameter of Cable (mm) | Max. DC Resistance at 20°C (Ω/km) |
|---|---|---|---|---|---|---|---|
| 3X2.5+2X1.5 | 7/7 | 0.7/0.7 | 1.0 | 0.80 | 1.8 | 17.3 | 7.41/12.1 |
| 3X4.0+2X2.5 | 7/7 | 0.7/0.7 | 1.0 | 1.25 | 1.8 | 19.5 | 4.61/7.41 |
| 3X6.0+2X4 | 7/7 | 0.7/0.7 | 1.0 | 1.25 | 1.8 | 21.0 | 3.08/4.61 |
| 3X10+2X6 | 7/7 | 0.7/0.7 | 1.0 | 1.25 | 1.8 | 22.8 | 1.83/3.08 |
| 3X16+2X10 | 7/7 | 0.7/0.7 | 1.0 | 1.60 | 1.8 | 25.9 | 1.15/1.83 |
| 3X25+2X16 | 7/7 | 0.9/0.7 | 1.0 | 1.60 | 1.8 | 29.6 | 0.727/1.15 |
| 3X35+2X16 | 7/7 | 0.9/0.7 | 1.0 | 1.60 | 1.8 | 31.7 | 0.524/0.727 |
| 3X50+2X25 | 7/7 | 1.0/0.9 | 1.0 | 1.60 | 2.0 | 37.4 | 0.387/0.727 |
| 3X70+2X35 | 12/7 | 1.1/0.9 | 1.2 | 2.00 | 2.1 | 42.6 | 0.268/0.524 |
| 3X95+2X50 | 15/12 | 1.1/1.0 | 1.2 | 2.00 | 2.3 | 47.6 | 0.193/0.387 |
| 3X120+2X70 | 18/12 | 1.2/1.1 | 1.4 | 2.50 | 2.5 | 53.2 | 0.153/0.268 |
| 3X150+2X70 | 18/12 | 1.4/1.1 | 1.4 | 2.50 | 2.6 | 57.6 | 0.124/0.268 |
| 3X185+2X95 | 30/15 | 1.6/1.1 | 1.4 | 2.50 | 2.8 | 63.0 | 0.0991/0.193 |
| 3X240+2X120 | 34/18 | 1.7/1.2 | 1.6 | 2.50 | 3.0 | 69.7 | 0.0754/0.153 |
| 3X300+2X150 | 34/18 | 1.8/1.4 | 1.6 | 2.50 | 3.2 | 76.0 | 0.0601/0.124 |
| 3X400+2X185 | 53/30 | 2.0/1.6 | 1.8 | 3.15 | 3.5 | 86.5 | 0.0470/0.0991 |
4+1 Cores Cables
| Size (mm²) | Min. Strands of Conductor | Insulation Thickness (mm) | Inner-Sheath Thickness (mm) | Diameter of Armour Wire (mm) | Outer-Sheath Thickness (mm) | Approx. Diameter of Cable (mm) | Max. DC Resistance at 20°C (Ω/km) |
|---|---|---|---|---|---|---|---|
| 4X2.5+1X1.5 | 7/7 | 0.7/0.7 | 1.0 | 0.80 | 1.8 | 17.5 | 7.41/12.1 |
| 4X4.0+1X2.5 | 7/7 | 0.7/0.7 | 1.0 | 1.25 | 1.8 | 19.8 | 4.61/7.41 |
| 4X6.0+1X4 | 7/7 | 0.7/0.7 | 1.0 | 1.25 | 1.8 | 21.3 | 3.08/4.61 |
| 4X10+1X6 | 7/7 | 0.7/0.7 | 1.0 | 1.25 | 1.8 | 23.2 | 1.83/3.08 |
| 4X16+1X10 | 7/7 | 0.7/0.7 | 1.0 | 1.60 | 1.8 | 26.4 | 1.15/1.83 |
| 4X25+1X16 | 7/7 | 0.9/0.7 | 1.0 | 1.60 | 1.8 | 30.9 | 0.727/1.15 |
| 4X35+1X16 | 7/7 | 0.9/0.7 | 1.0 | 1.60 | 1.9 | 33.3 | 0.524/0.727 |
| 4X50+1X25 | 7/7 | 1.0/0.9 | 1.2 | 2.00 | 2.1 | 38.8 | 0.387/0.727 |
| 4X70+1X35 | 12/7 | 1.1/0.9 | 1.2 | 2.00 | 2.2 | 42.8 | 0.268/0.524 |
| 4X95+1X50 | 15/12 | 1.1/1.0 | 1.2 | 2.00 | 2.4 | 47.8 | 0.193/0.387 |
| 4X120+1X70 | 18/12 | 1.2/1.1 | 1.4 | 2.50 | 2.5 | 53.2 | 0.153/0.268 |
| 4X150+1X70 | 18/12 | 1.4/1.1 | 1.4 | 2.50 | 2.7 | 57.8 | 0.124/0.268 |
| 4X185+1X95 | 30/15 | 1.6/1.1 | 1.6 | 2.50 | 2.9 | 63.6 | 0.0991/0.193 |
| 4X240+1X120 | 34/18 | 1.7/1.2 | 1.6 | 2.50 | 3.1 | 69.9 | 0.0754/0.153 |
| 4X300+1X150 | 34/18 | 1.8/1.4 | 1.6 | 3.15 | 3.3 | 77.5 | 0.0601/0.124 |
| 4X400+1X185 | 53/30 | 2.0/1.6 | 1.8 | 3.15 | 3.6 | 86.7 | 0.0470/0.0991 |
Standards & Compliance
-
IEC 60502-1
-
BS5467
-
Conductor: IEC 60228 Class 2
Ordering Information
To request a quote or place an order, please provide the following information:
-
Product Type: IEC 0.6/1kV XLPE Insulation Steel Wire Armoured (SWA) Power Cable
-
Voltage: AC 0.6/1kV
-
Conductor Material: Copper or Aluminium (Tinned copper optional)
-
Number of Cores and Cross-Section: e.g., 1X95 mm², 3X240 mm², 3X120+1X70 mm²
-
Armour: AWA for single-core; SWA for multi-core
-
Inner Sheath: PVC standard; LSZH polyolefin optional
-
Outer Sheath: PVC standard; flame retardant, termite resistant, or LSZH polyolefin optional
-
Quantity: Total length in meters
