Single Core Flexible Power Cable, 0.6/1kV – AS/NZS 5000.1

Low Voltage Power Cables
Description

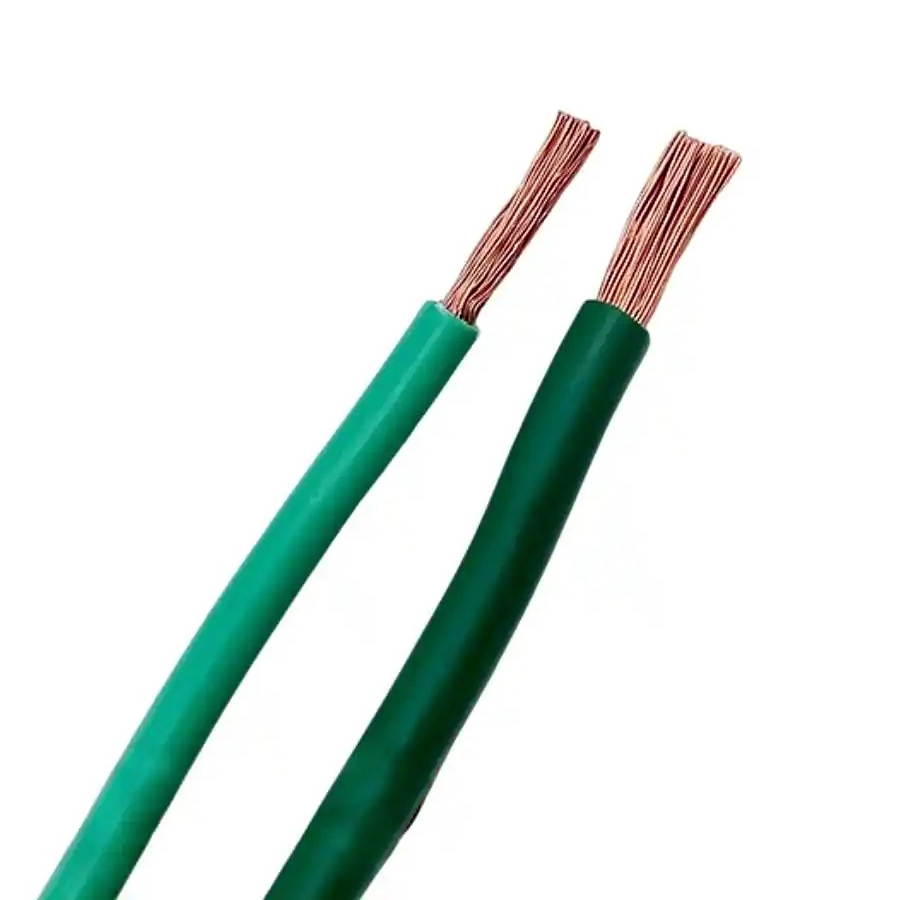

Single Core Flexible Power Cable, 0.6/1kV

Product Overview

These cables are mainly for use in fixed applications. They feature a flexible plain copper conductor and V90HT PVC insulation, making them suitable for low voltage power distribution where flexibility and reliable performance are required. The cable is available in a range of conductor sizes and insulation colours to suit various installation needs.

Applications

  • Fixed installations in low voltage power systems.

  • Suitable for use in conduits, ducts, or other fixed wiring applications.

Features & Benefits

  • Flexible Conductor: Nominal 0.2mm stranded flexible plain copper wire for ease of installation in fixed applications.

  • V90HT PVC Insulation: Provides reliable electrical insulation and thermal performance.

  • Colour Options: Available in Black, Red, Blue, White, Green, and Yellow for easy identification.

  • Standards Compliant: Designed to AS/NZS 5000.1, AS 1125, AS 3808, and IEC 60502-1.

  • Wide Size Range: Available from 4 mm² to 120 mm² to meet various current-carrying requirements.

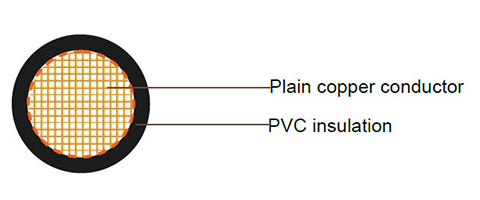

Construction

  • Conductor: Nominal 0.2mm stranded flexible plain copper wire to AS 1125.

  • Insulation: V90HT PVC to AS 3808.

  • Colour: Black, Red, Blue, White, Green, Yellow.

Technical Data

Table 1: Electrical Characteristics

Conductor Size (mm²) Electrical Resistance @20°C (Ω/km) Current Rating (A) Voltage Drop Single Phase (mV/Am) Voltage Drop Three Phase (mV/Am)
4 4.950 40 11.20 9.71
6 3.300 51 7.50 6.49
10 1.910 69 4.45 3.86
16 1.210 92 2.80 2.43
25 0.780 125 1.78 1.54
35 0.554 155 1.29 1.12
50 0.386 185 0.96 0.83
70 0.272 240 0.62 0.59
95 0.206 295 0.51 0.44
120 0.161 345 0.41 0.36

Table 2: Dimensions & Weight

Conductor Size (mm²) No. of Cores Conductor No./OD Nominal Insulation Thickness (mm) Nominal O.D. (mm) Approx. Cable Weight (kg/100m)
4 1 128/0.2 1.0 4.8 5.30
6 1 192/0.2 1.0 5.4 7.30
10 1 322/0.2 1.0 6.3 11.40
16 1 511/0.2 1.0 7.3 17.10
25 1 784/0.2 1.2 8.8 30.00
35 1 1120/0.2 1.2 10.2 37.50
50 1 1568/0.2 1.4 11.9 51.00
70 1 2240/0.2 1.4 14.0 71.50
95 1 3040/0.2 1.6 16.0 97.00
120 1 3800/0.2 1.6 17.5 119.10

Nominal values. Subject to standard manufacturing tolerances.

Standards & Compliance

  • AS/NZS 5000.1

  • AS 1125

  • AS 3808

  • IEC 60502-1

Ordering Information

To request a quote or place an order, please provide the following information:

  • Product Type: Single Core Flexible Power Cable

  • Voltage Rating: 0.6/1kV

  • Conductor Size: e.g., 4 mm² to 120 mm²

  • Insulation Colour: Black, Red, Blue, White, Green, or Yellow

  • Quantity: Total length in meters
