H05Z1Z1H2-F LSZH Flat Cable , 300/500V German Standard – EN 50525-3

German Standard Industrial Cable H05Z1Z1H2-F

Product Overview

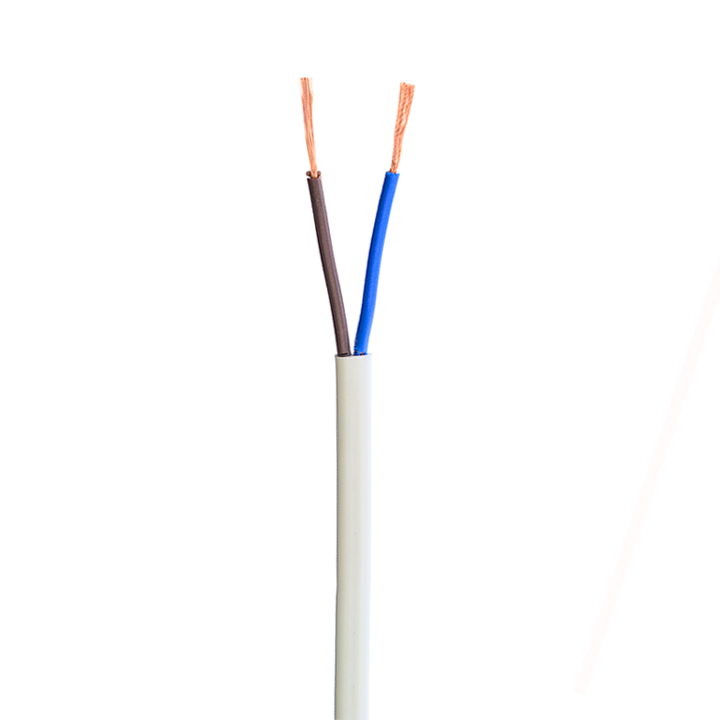

The H05Z1Z1H2-F is a German standard halogen-free flat cable designed for medium stresses on devices and equipment, even in damp areas, and where a small amount of smoke and corrosive gases is required in case of fire. Outdoor use for a short period of time is permissible. The product is flame resistant.

The cable is designed for ordinary duty for instruments and devices, even in damp areas. It is suitable for applications where low emission of non-toxic smoke and corrosive gases is required when the cable is exposed to fire. Use outdoors for temporary periods of short duration. The product is resistant to flame spread.

The cable is manufactured to EN 50525-3-11 and complies with RoHS and REACH.

Features & Benefits

• Halogen-Free Construction: Cross-linked halogen-free insulation and sheath minimise toxic fumes and smoke.

• Low Smoke & Corrosive Gas Emission: Suitable for areas where low emission of non-toxic smoke and corrosive gases is required.

• Flame Retardant: Resistant to flame spread according to ČSN EN 60332-1.

• Flat Construction: Cores laid in parallel for space-saving installation.

• Flexible Conductors: Stranded plain or tinned copper conductors, Class 5 according to EN 60228.

• Voltage Rating: 300/500 V.

• Operating Temperature: Max. +70°C.

• Short-Circuit Temperature: +150°C.

• Test Voltage: 2 kV.

• Temperature Range: Operating: -25°C to +70°C; Installation and handling: min. -5°C; Storage: min. -30°C.

• CPR Classification: Class E.

• RoHS and REACH Compliant: Meets environmental and health requirements.

• Sheath Colour: White (other colours available on request).

• Insulation Colour: According to HD 308.

Typical Applications

• Devices and equipment with medium stresses

• Damp areas

• Applications requiring low emission of non-toxic smoke and corrosive gases in case of fire

• Temporary outdoor use for short durations

• Instruments and devices for ordinary duty

Note: At temperatures below +5°C, it is recommended to limit the mechanical stress of the cable.

Construction

• Conductor: Stranded plain or tinned copper conductors, Class 5 according to EN 60228

• Insulation: Cross-linked halogen-free (HFFR) insulation

• Sheath: Cross-linked halogen-free (HFFR) sheath

• Core Arrangement: Cores laid in parallel

• Insulation Colour: HD 308

• Sheath Colour: White, other colours according to request

Technical Specifications

Electrical & Thermal Characteristics

Fire Performance & Compliance

Parameter Table – H05Z1Z1H2-F

Note: All values are nominal as provided in the source specification. Actual dimensions and weights may vary within standard manufacturing tolerances. “–” indicates data not provided in the source specification.

Standards & Compliance

The H05Z1Z1H2-F cable is designed and tested in accordance with:

• EN 50525-3-11

• ČSN EN 60332-1 – Flame spread resistance

• ČSN EN 61034 – Smoke density

• ČSN EN 50267-2 – Corrosivity of emitted gases

• CPR – Class E

• RoHS – Compliant

• REACH – Compliant

• Conductor: EN 60228 Class 5

Ordering Information

To request a quote or place an order, please provide the following information:

• Product Type: H05Z1Z1H2-F

• Voltage Rating: 300/500 V

• Number of Cores and Cross-Section: e.g., 2 x 0.75 mm², 2 x 1 mm²

• Conductor: Stranded plain or tinned copper, Class 5

• Insulation: Cross-linked halogen-free (HFFR)

• Sheath: Cross-linked halogen-free (HFFR), White (other colours on request)

• Quantity: Total length in meters
