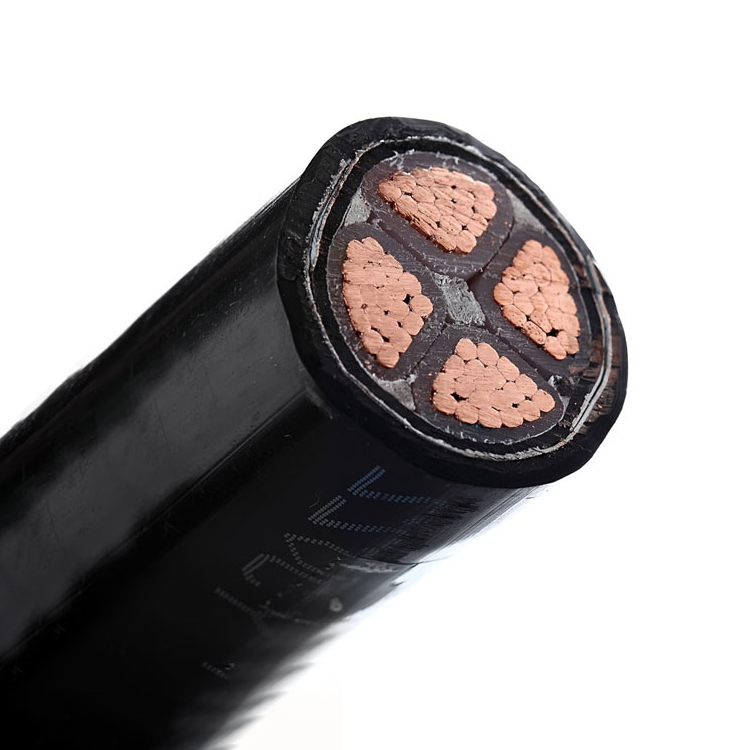

IEC 0.6/1kV XLPE Insulation Steel Tape Armoured (STA) Power Cable

Product Overview

The IEC 0.6/1kV XLPE Insulation Steel Tape Armoured (STA) Power Cable is designed for fixed installation indoors and outdoors in cable ducts or directly in the ground. These cables are provided with mechanical protection and are therefore suitable for external use, direct burial, and areas where sudden mechanical stress is expected.

The cable features XLPE insulation, a PVC inner sheath, steel tape armour for multi-core constructions, and a PVC outer sheath. LSZH, PE, and flame-retardant options are available to meet project-specific requirements.

Features & Benefits

  • Voltage Rating: AC 0.6/1kV

  • Conductor Temperature: Max. 90°C during normal operation

  • Short-Circuit Temperature: Max. 250°C for max. 5 seconds

  • Test Voltage: AC 3.5kV for 5 minutes, without breakdown

  • Mechanical Protection: Steel tape armour (STA) for multi-core cables; aluminium tape armour (ATA) for single-core cables

  • Conductor Options: Plain annealed copper or aluminium, Class 2, conforming to IEC 60228

  • Insulation: XLPE (cross-linked polyethylene)

  • Inner Sheath: PVC standard; LSZH and PE optional

  • Outer Sheath: PVC standard; flame retardant, PE, and LSZH optional

  • Installation: Suitable for fixed indoor and outdoor installation, cable ducts, direct burial, and areas with expected mechanical stress

Typical Applications

  • Fixed installation indoors and outdoors

  • Cable ducts and trays

  • Direct burial in the ground

  • External use where mechanical protection is required

  • Areas where sudden mechanical stress is expected

Construction

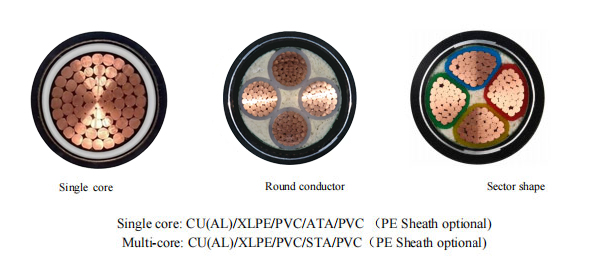

  1. Conductor: Plain annealed copper or aluminium wires, Class 2, conforms to IEC 60228.

    • Available in single-core and multiple-core versions.

    • For multi-cores, the conductor is sector-shaped for cross-sectional areas larger than 35 mm².

    • Tinned copper wire is optional.

  2. Insulation: XLPE (cross-linked polyethylene).

  3. Inner Sheath: PVC (polyvinyl chloride). LSZH and PE are optional.

  4. Armour:

    • Aluminium tape (ATA) for single-core cable

    • Galvanized steel tape (STA) for multi-core cable

  5. Outer Sheath: PVC (polyvinyl chloride).

    • Flame retardant is optional.

    • PE is optional.

    • LSZH is optional.

Standards & Compliance

  • IEC 60502-1

  • BS 5467

  • IEC 60228 – Conductor specification

Technical Specifications

Working Temperature

  • Max. conductor temperature at normal operation: 90°C

  • Max. conductor temperature at short circuit (max. 5 s duration): 250°C

Voltage

  • Rated Voltage: AC 0.6/1kV

Test Voltage

  • AC 3.5kV for 5 minutes, not break down

Technical Data

Nominal values. Decimal formatting has been normalized for readability where source data contained obvious formatting inconsistencies. Please confirm final data at the time of ordering.

Single-Core Copper Cables
Size (mm²) Insulation Thickness (mm) Inner-Sheath Thickness (mm) Armour Wire Thickness (mm) Outer-Sheath Thickness (mm) Approx. Diameter of Cable (mm) Max. DC Resistance at 20°C (Ω/km)
1.5 0.7 1.2 0.2 1.8 10.8 12.1
2.5 0.7 1.2 0.2 1.8 11.2 7.41
4 0.7 1.2 0.2 1.8 11.7 4.61
6 0.7 1.2 0.2 1.8 12.2 3.08
10 0.7 1.2 0.2 1.8 13.2 1.83
16 0.7 1.2 0.2 1.8 14.2 1.15
25 0.9 1.2 0.2 1.8 15.8 0.727
35 0.9 1.2 0.2 1.8 16.8 0.524
50 1 1.2 0.2 1.8 18.4 0.387
70 1.1 1.2 0.2 1.8 20.2 0.268
95 1.1 1.2 0.2 1.8 21.8 0.193
120 1.2 1.2 0.2 1.8 23.4 0.153
150 1.4 1.2 0.2 1.8 25.4 0.124
185 1.6 1.2 0.2 1.8 27.4 0.0991
240 1.7 1.2 0.5 2 31.4 0.0754
300 1.8 1.2 0.5 2 33.8 0.0601
400 2 1.2 0.5 2.2 37.8 0.047
500 2.2 1.2 0.5 2.3 41.2 0.0366
630 2.4 1.3 0.5 2.4 45.3 0.0283
2-Core Copper Cables
No. of Conductors Size (mm²) Insulation Thickness (mm) Inner-Sheath Thickness (mm) Armour Wire Thickness (mm) Outer-Sheath Thickness (mm) Approx. Diameter of Cable (mm) Max. DC Resistance at 20°C (Ω/km)
2 1.5 0.7 1.2 0.2 1.8 13.6 12.1
2 2.5 0.7 1.2 0.2 1.8 14.4 7.41
2 4 0.7 1.2 0.2 1.8 15.4 4.61
2 6 0.7 1.2 0.2 1.8 16.4 3.08
2 10 0.7 1.2 0.2 1.8 18.4 1.83
2 16 0.7 1.2 0.2 1.8 20.4 1.15
2 25 0.9 1.2 0.2 1.8 23.6 0.727
2 35 0.9 1.2 0.2 1.8 27 0.524
2 50 1 1.2 0.2 1.8 24.7 0.387
2 70 1.1 1.2 0.2 1.8 27.4 0.268
2 95 1.1 1.2 0.5 2 31.6 0.193
2 120 1.2 1.2 0.5 2.1 34.7 0.153
2 150 1.4 1.2 0.5 2.2 37.9 0.124
2 185 1.6 1.2 0.5 2.3 41.4 0.0991
2 240 1.7 1.3 0.5 2.4 45.4 0.0754
2 300 1.8 1.4 0.5 2.6 49.9 0.0601
2 400 2 1.5 0.5 2.8 55.8 0.047
3-Core Copper Cables
No. of Conductors Size (mm²) Insulation Thickness (mm) Inner-Sheath Thickness (mm) Armour Tape Thickness (mm) Outer-Sheath Thickness (mm) Approx. Diameter of Cable (mm) Max. DC Resistance at 20°C (Ω/km)
3 1.5 0.7 1.2 0.2 1.8 14 12.1
3 2.5 0.7 1.2 0.2 1.8 14.9 7.41
3 4 0.7 1.2 0.2 1.8 16 4.61
3 6 0.7 1.2 0.2 1.8 17.1 3.08
3 10 0.7 1.2 0.2 1.8 19.2 1.83
3 16 0.7 1.2 0.2 1.8 21.4 1.15
3 25 0.9 1.2 0.2 1.8 24.6 0.727
3 35 0.9 1.2 0.2 1.9 28.7 0.524
3 50 1 1.2 0.2 1.9 28.2 0.387
3 70 1.1 1.2 0.5 2 33.4 0.268
3 95 1.1 1.2 0.5 2.1 36.6 0.193
3 120 1.2 1.2 0.5 2.2 40.1 0.153
3 150 1.4 1.3 0.5 2.4 44.5 0.124
3 185 1.6 1.4 0.5 2.5 48.8 0.0991
3 240 1.7 1.5 0.5 2.7 54.1 0.0754
3 300 1.8 1.6 0.5 2.9 59.3 0.0601
3 400 2 1.7 0.5 3 64.3 0.047
4-Core Copper Cables
No. of Conductors Size (mm²) Insulation Thickness (mm) Inner-Sheath Thickness (mm) Armour Tape Thickness (mm) Outer-Sheath Thickness (mm) Approx. Diameter of Cable (mm) Max. DC Resistance at 20°C (Ω/km)
4 1.5 0.7 1.2 0.2 1.8 14.8 12.1
4 2.5 0.7 1.2* 0.2 1.8 15.7 7.41
4 4 0.7 1.2 0.2 1.8 17 4.61
4 6 0.7 1.2* 0.2 1.8 18.2 3.08
4 10 0.7 1.2 0.2 1.8 20.6 1.83
4 16 0.7 1.2* 0.2 1.8 23 1.15
4 25 0.9 1.2 0.2 1.8 26.9 0.727
4 35 0.9 1.2 0.5 2 32.6 0.524
4 50 1 1.2 0.5 2 32.3 0.387
4 70 1.1 1.2* 0.5 2.1 36.6 0.268
4 95 1.1 1.2 0.5 2.3 40.6 0.193
4 120 1.2 1.3 0.5 2.4 44.9 0.153
4 150 1.4 1.4 0.5 2.6 49.5 0.124
4 185 1.6 1.5 0.5 2.7 54.7 0.0991
4 240 1.7 1.6 0.5 2.9 60.8 0.0754
4 300 1.8 1.7 0.5 3.1 66.5 0.0601
4 400 2 1.9 0.5 3.4 75.8 0.047

*Source data formatting normalized from "12" to "1.2" for decimal clarity; verify at order.

5-Core Copper Cables
No. of Conductors Size (mm²) Insulation Thickness (mm) Inner-Sheath Thickness (mm) Armour Tape Thickness (mm) Outer-Sheath Thickness (mm) Approx. Diameter of Cable (mm) Max. DC Resistance at 20°C (Ω/km)
5 1.5 0.7 1.2 0.2 1.8 15.6 12.1
5 2.5 0.7 1.2 0.2 1.8 16.6 7.41
5 4 0.7 1.2 0.2 1.8 18 4.61
5 6 0.7 1.2 0.2 1.8 19.3 3.08
5 10 0.7 1.2 0.2 1.8 22 1.83
5 16 0.7 1.2 0.2 1.8 24.7 1.15
5 25 0.9 1.2 0.2 1.9 29.3 0.727
5 35 0.9 1.2 0.5 2.1 35.5 0.524
5 50 1 1.2 0.5 2.1 35.1 0.387
5 70 1.1 1.2 0.5 2.2 39.7 0.268
5 95 1.1 1.3 0.5 2.4 44.5 0.193
5 120 1.2 1.4 0.5 2.5 48.8 0.153
5 150 1.4 1.5 0.5 2.7 54.3 0.124
5 185 1.6 1.6 0.5 2.9 59.9 0.0991
5 240 1.7 1.7 0.5 3.1 66.5 0.0754
5 300 1.8 1.8 0.5 3.3 72.8 0.0601
5 400 2 2 0.8 3.7 85.8 0.047
3+1-Core Cables
No. of Conductors Size (mm²) + No. of Conductors Size (mm²) Insulation Thickness (mm) Inner-Sheath Thickness (mm) Armour Tape Thickness (mm) Outer-Sheath Thickness (mm) Approx. Diameter of Cable (mm) Max. DC Resistance at 20°C (Ω/km)
3 1.5 + 1 1 0.7 1.2 0.2 1.8 15.6 12.1
3 2.5 + 1 1.5 0.7 1.2 0.2 1.8 16.6 7.41
3 4 + 1 2.5 0.7 1.2 0.2 1.8 18 4.61
3 6 + 1 4 0.7 1.2 0.2 1.8 19.3 3.08
3 10 + 1 6 0.7 1.2 0.2 1.8 22 1.83
3 16 + 1 10 0.7 1.2 0.2 1.8 24.7 1.15
3 25 + 1 16 0.9 1.2 0.2 1.8 29.3 0.727
3 35 + 1 16 0.9 1.2 0.5 2 35.5 0.524
3 50 + 1 25 1 1.2 0.5 2 35.1 0.387
3 70 + 1 35 1.1 1.2 0.5 2.1 39.7 0.268
3 95 + 1 50 1.1 1.2 0.5 2.3 44.5 0.193
3 120 + 1 70 1.2 1.3 0.5 2.4 48.8 0.153
3 150 + 1 70 1.4 1.4 0.5 2.6 54.3 0.124
3 185 + 1 95 1.6 1.5 0.5 2.7 59.9 0.0991
3 240 + 1 120 1.7 1.6 0.5 2.9 66.5 0.0754
3 300 + 1 150 1.8 1.7 0.5 3.1 72.8 0.0601
3 400 + 1 185 2 1.9 0.5 3.4 85.8 0.047
3+2-Core Cables
No. of Conductors Size (mm²) + No. of Conductors Size (mm²) Insulation Thickness (mm) Inner-Sheath Thickness (mm) Armour Tape Thickness (mm) Outer-Sheath Thickness (mm) Approx. Diameter of Cable (mm) Max. DC Resistance at 20°C (Ω/km)
3 1.5 + 2 1 0.7 1.2 0.2 1.8 15.2 12.1
3 2.5 + 2 1.5 0.7 1.2 0.2 1.8 16.3 7.41
3 4 + 2 2.5 0.7 1.2 0.2 1.8 17.5 4.61
3 6 + 2 4 0.7 1.2 0.2 1.8 18.8 3.08
3 10 + 2 6 0.7 1.2 0.2 1.8 21.4 1.83
3 16 + 2 10 0.7 1.2 0.2 1.8 24 1.15
3 25 + 2 16 0.9 1.2 0.2 1.9 28.3 0.727
3 35 + 2 16 0.9 1.2 0.5 2.1 34.3 0.524
3 50 + 2 25 1 1.2 0.5 2.1 35.1 0.387
3 70 + 2 35 1.1 1.2 0.5 2.2 39.7 0.268
3 95 + 2 50 1.1 1.3 0.5 2.4 44.5 0.193
3 120 + 2 70 1.2 1.4 0.5 2.5 48.8 0.153
3 150 + 2 70 1.4 1.5 0.5 2.7 54.3 0.124
3 185 + 2 95 1.6 1.6 0.5 2.9 59.9 0.0991
3 240 + 2 120 1.7 1.7 0.5 3.1 66.5 0.0754
3 300 + 2 150 1.8 1.8 0.5 3.3 72.8 0.0601
3 400 + 2 185 2 2 0.8 3.7 85.8 0.047
4+1-Core Cables
No. of Conductors Size (mm²) + No. of Conductors Size (mm²) Insulation Thickness (mm) Inner-Sheath Thickness (mm) Armour Tape Thickness (mm) Outer-Sheath Thickness (mm) Approx. Diameter of Cable (mm) Max. DC Resistance at 20°C (Ω/km)
4 1.5 + 1 1 0.7 1.2 0.2 1.8 15.4 12.1
4 2.5 + 1 1.5 0.7 1.2 0.2 1.8 16.5 7.41
4 4 + 1 2.5 0.7 1.2 0.2 1.8 17.8 4.61
4 6 + 1 4 0.7 1.2 0.2 1.8 19.1 3.08
4 10 + 1 6 0.7 1.2 0.2 1.8 21.8 1.83
4 16 + 1 10 0.7 1.2 0.2 1.8 24.4 1.15
4 25 + 1 16 0.9 1.2 0.2 1.9 28.9 0.727
4 35 + 1 16 0.9 1.2 0.5 2.1 35 0.524
4 50 + 1 25 1 1.2 0.5 2 32.7 0.387
4 70 + 1 35 1.1 1.2 0.5 2.2 37.3 0.268
4 95 + 1 50 1.1 1.3 0.5 2.3 41.9 0.193
4 120 + 1 70 1.2 1.3 0.5 2.4 45.8 0.153
4 150 + 1 70 1.4 1.4 0.5 2.6 50.8 0.124
4 185 + 1 95 1.6 1.5 0.5 2.8 56 0.0991
4 240 + 1 120 1.7 1.6 0.5 3 62.3 0.0754
4 300 + 1 150 1.8 1.7 0.5 3.2 68.4 0.0601
4 400 + 1 185 2 1.9 0.5 3.5 79 0.047

Ordering Information

To request a quote or place an order, please provide the following information:

  • Product Type: IEC 0.6/1kV XLPE Insulation Steel Tape Armoured (STA) Power Cable

  • Voltage: AC 0.6/1kV

  • Conductor Material: Copper or Aluminium

  • Number of Cores and Size: e.g., 3 x 50 mm², 4 x 25 mm², 3+1 x 95+50 mm²

  • Insulation: XLPE

  • Inner Sheath: PVC, LSZH, or PE

  • Armour: ATA for single-core, STA for multi-core

  • Outer Sheath: PVC, flame retardant PVC, PE, or LSZH

  • Quantity: Total length in meters
