Product Overview
The CKEV/NA is a specialized Fire Resistant marine control cable designed for critical power, lighting, and control circuits where circuit integrity must be maintained during a fire. It features a mica glass tape and EPR composite insulation system and a PVC sheath, providing certified fire resistance alongside low smoke and halogen-free properties. This cable is engineered for the most demanding safety applications on ships, offshore platforms, and in high-risk industrial facilities, complying with the IEC 60092 series and the stringent IEC 60331 fire resistance standard.
Key Features & Benefits
-
Certified Fire Resistance: Meets IEC 60331 standards, ensuring the cable continues to operate for a specified period under direct flame exposure, which is critical for emergency systems, alarms, and shutdown circuits.
-
Enhanced Fire Safety Suite: Combines fire resistance with Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties to reduce toxic fumes and smoke opacity, and provides Flame Retardancy (IEC 60332) to inhibit fire spread.
-
Robust Construction for Critical Systems: The mica glass tape and EPR insulation offers exceptional thermal and electrical integrity at high temperatures. The overall design ensures reliability in harsh environments.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 Cores.
-
Standard Sheath Color: Black (other colors available upon request).

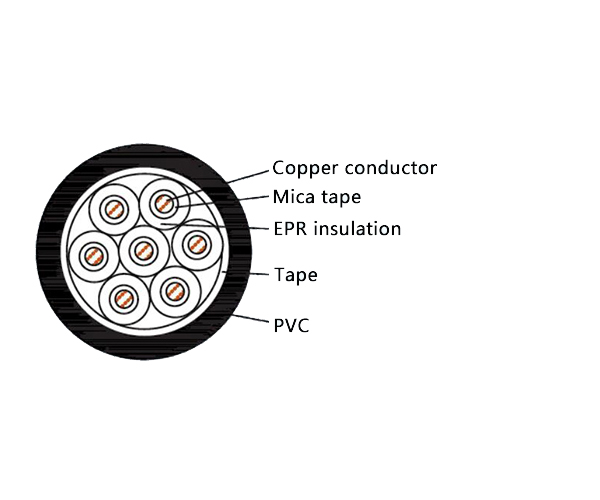

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Mica Glass Tape + EPR Insulation |
| Sheath | V | Polyvinyl Chloride (PVC) |
| Flammability | NA | Fire Resistant |
Standards & Compliance
This cable is manufactured in full compliance with key international safety and marine standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistance: IEC 60331
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is essential for fixed installations where maintaining circuit function during fire is mandatory:
-
Marine & Offshore: Critical power, lighting, and control systems on ships and offshore constructions (e.g., oil platforms), including emergency generator circuits, fire pump controls, alarm systems, and engine room controls.
-
High-Risk Industrial Plants: Vital control and instrumentation circuits in power generation facilities, chemical plants, metallurgy, and mining where fire safety systems and orderly shutdown processes are crucial.
