Product Overview
The CKEV92/NA is a premium Fire Resistant and Armored marine control cable, engineered to provide maximum circuit integrity and mechanical protection for the most critical applications. It integrates a mica glass tape and EPR composite insulation system for certified fire resistance (IEC 60331) with a robust Galvanized Steel Wire Braid Armor and dual PVC sheaths. Designed for essential power, lighting, and control circuits on ships, offshore platforms, and in hazardous industrial plants, this cable combines ultimate fire safety with superior durability in demanding environments.
Key Features & Benefits
-
Certified Fire Resistance: Complies with IEC 60331, ensuring continued circuit operation during a fire for critical emergency and safety systems.
-
Maximum Mechanical Protection: The Galvanized Steel Wire Braid Armor offers exceptional resistance to crushing, impact, abrasion, and rodent damage, ideal for exposed or high-risk cable routes.
-
Comprehensive Fire Safety: Provides a full safety suite: Fire Resistant (IEC 60331), Flame Retardant (IEC 60332), Halogen-Free (IEC 60754), and Low Smoke (IEC 61034) to minimize fire spread, toxic emissions, and smoke opacity.
-
Robust Double-Sheathed Construction: Features an inner and outer PVC sheath, enhancing overall environmental, chemical, and mechanical protection.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 Cores.
-
Standard Outer Sheath Color: Black (other colors available upon request).

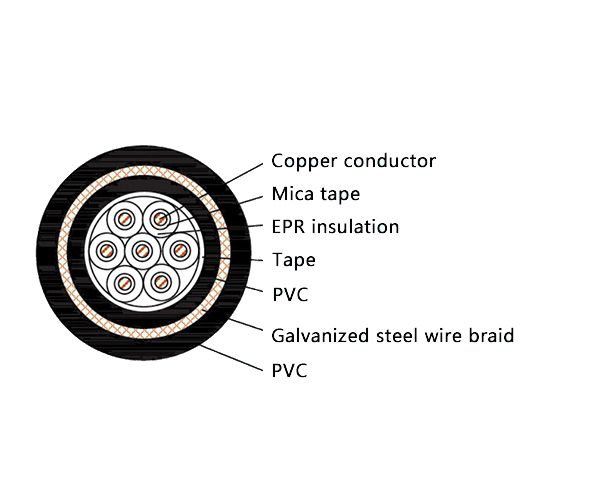

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Mica Glass Tape + EPR Insulation |
| Inner Sheath | V | Polyvinyl Chloride (PVC) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 2 | Polyvinyl Chloride (PVC) Outer Sheath |
| Flammability | NA | Fire Resistant |
Standards & Compliance
This cable is manufactured in full compliance with key international safety and marine standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistance: IEC 60331
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is specified for fixed installations where both fire integrity and mechanical ruggedness are non-negotiable:
-
Marine & Offshore: Vital power, lighting, and control circuits on ships and offshore platforms (e.g., oil & gas), including emergency generator feeds, fire pump controls, alarm systems, and engine room controls in exposed or vulnerable locations.
-
High-Risk & Heavy Industry: Critical control and instrumentation systems in power plants, chemical processing, mining, and metallurgy, particularly for cables run in trays, ducts, direct buried, or in areas with high physical risk.
