Product Overview
The CKEV92/SA is a robust armored marine control cable designed for durable power, lighting, and control system installations in demanding environments. It features EPR insulation for reliable thermal performance, a PVC inner sheath, heavy-duty galvanized steel wire armor, and a protective PVC outer sheath. This construction provides excellent mechanical protection and longevity for fixed installations on ships, offshore platforms, and in industrial plants. As an SA-grade Flame Retardant cable, it complies with the core safety requirements of the IEC 60092 standard series.
Key Features & Benefits
-
Superior Mechanical Protection: The galvanized steel wire braid armor (Code 9) offers maximum resistance against impact, crushing, and mechanical stress, making it suitable for exposed or high-risk areas.
-
Durable & Cost-Effective Construction: The dual-layer PVC sheathing (Inner V and Outer 2) provides good environmental protection against moisture, abrasion, and common chemicals at a competitive cost.
-
Certified Flame Retardant Safety: Rated for SA-grade Flame Retardancy (IEC 60332-1 & -3-22), ensuring performance in bunched cable installations to inhibit fire spread.
-
Reliable Thermal Performance: EPR insulation ensures stable operation and long-term durability at a maximum conductor temperature of 90°C.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 cores.

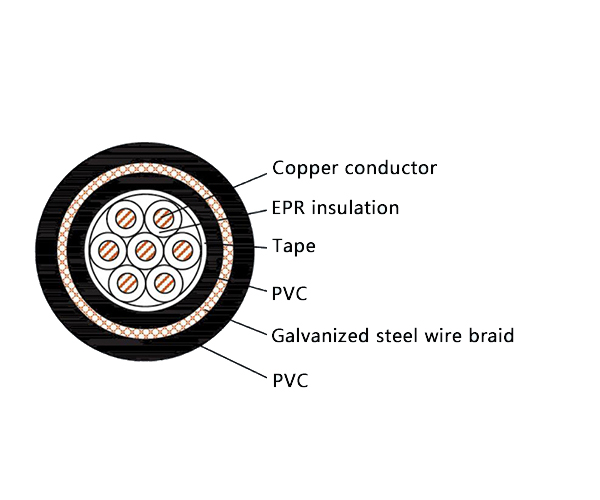

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Ethylene Propylene Rubber (EPR) |
| Inner Sheath | V | Polyvinyl Chloride (PVC) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 2 | Polyvinyl Chloride (PVC) |
| Sheath Color | / | Standard Black (Other Colors Available) |
| Flammability | SA | Bunched Cables Flame Retardant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
Applications
This armored cable is engineered for demanding fixed installations requiring enhanced mechanical protection:
-
Main and auxiliary power distribution, lighting, and control circuits on ships, oil rigs, and offshore platforms.
-
Industrial control systems, machinery wiring, and fixed installations in heavy industries such as mining, power generation, chemical plants, and metallurgy where durability is prioritized over flexibility.
