P3/P10 RFOU 6/10kV Offshore Power Cable – NEK 606

NEK 606 HEPR/EPR Insulation Marine Shipboard Power Cables29
Description

Product Code: P3/P10 RFOU
Rated Voltage: 6/10kV
Standard: NEK 606

Product Overview

The P3/P10 RFOU 6/10kV Offshore Power Cable is a high-performance, mud-resistant power cable specifically engineered for harsh offshore environments. Designed to meet the rigorous NEK 606 standard, this cable combines flame retardant properties, low smoke emission, and halogen-free materials to ensure reliable power transmission in the most demanding offshore applications.

Key Applications

  • Drilling Vessels & Platforms: Jack-up rigs, Semi-submersible platforms

  • Production Platforms: TLP, Semi-submersible, SPAR, Fixed platforms

  • FPSO/FSO Units: Floating Production Storage and Offloading facilities

  • High Voltage Power Transmission: Main power distribution systems

Key Features

  • Mud-Resistant Design: Special SHF mud-resistant outer sheath

  • Enhanced Safety: Flame retardant, low smoke, halogen-free construction

  • EMI Protection: Tinned copper wire braid provides electromagnetic shielding

  • High Voltage Capability: Rated for 6/10kV offshore power applications

  • Durability: Robust construction withstands harsh marine conditions

Standards & Certifications

  • Primary Standard: NEK 606

  • Conductor Standard: IEC 60228

  • Armour Standard: IEC 60092-350

  • Material Standards: Halogen-free thermoset compound (Type SHF Mud)

Cable Construction

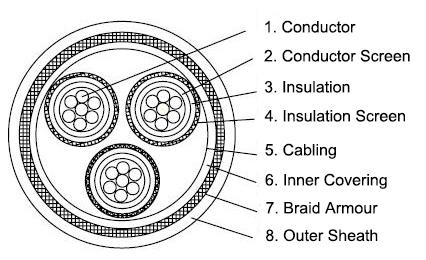

P3/P10 RFOU 6/10kV Offshore Power Cable – NEK 606

Detailed Construction Diagram:

  1. Conductor
    Circular tinned stranded copper (IEC 60228 compliant)

  2. Conductor Screen
    Semi-conducting material

  3. Insulation
    Ethylene Propylene Rubber (EPR)

  4. Insulation Screen
    Semi-conducting material with tinned copper wire braid

  5. Cabling
    Cores laid up together and wrapped with polyester tape

  6. Inner Covering
    Halogen-free compound

  7. Braid Armour
    Tinned copper wire braid (IEC 60092-350 compliant)

  8. Outer Sheath
    Halogen-free thermoset compound (Type SHF Mud, Red color)

Technical Specifications

Parameter Specification
Rated Voltage 6/10kV
Standard NEK 606
Conductor Material Tinned stranded copper
Insulation Material EPR (Ethylene Propylene Rubber)
Armour Type Tinned copper wire braid
Outer Sheath Halogen-free thermoset (SHF Mud)
Sheath Color Red

Safety & Performance Features

  • Fire Safety: Flame retardant construction prevents fire propagation

  • Environmental Protection: Halogen-free materials eliminate toxic gas emission

  • Chemical Resistance: Mud-resistant sheath withstands offshore drilling conditions

  • Electrical Performance: Semi-conducting screens ensure optimal voltage distribution

  • Mechanical Protection: Copper braid armour provides structural integrity
