Product Code: CKJPJ95/NC
Rated Voltage: 150/250V
Operating Temperature: Up to 90℃
Product Overview
The CKJPJ95/NC is a premium Low Smoke Zero Halogen (LSZH), Fire Resistant, and Steel Wire Armored marine control cable. It combines maximum fire safety with robust mechanical protection. Featuring a dual-layer LSZH sheath and galvanized steel wire armor, it is engineered for the most critical circuits in high-risk environments, ensuring circuit integrity, personnel safety, and durability.
Key Features
-
Full LSZH Construction: Both inner and outer sheaths are made of Halogen-free thermoset compound (SHF2), emitting extremely low smoke and no toxic/corrosive gases when exposed to fire (IEC 60754, IEC 61034).
-
Circuit Integrity (Fire Resistant): Maintains operational continuity during a fire (IEC 60331).
-
Flame Retardant: Inhibits the spread of flame (IEC 60332-1 & -3-22).
-
Robust Armored Protection: Galvanized Steel Wire Braid provides excellent mechanical protection against crushing, impact, and rodent damage.
-
Enhanced Durability: Designed to withstand harsh marine and industrial environments.
Applications
This cable is the ultimate choice for critical safety systems where both fire performance and mechanical strength are non-negotiable:
-
Offshore oil and gas platforms
-
Passenger ships, naval vessels, and high-value commercial ships
-
Power, lighting, and control systems in tunnels and underground public transport
-
Nuclear facilities, chemical plants, and high-risk mining operations
Standards Compliance
This product conforms to the highest international safety standards:
-
IEC 60092-350, 376 (General Construction & Design)
-
IEC 60228 (Conductors)
-
IEC 60092-360 (Insulation & Sheath)
-
IEC 60331 (Fire Resistance)
-
IEC 60332-1 & IEC 60332-3-22 (Flame Retardant)
-
IEC 60754 (Halogen Free)
-
IEC 61034 (Low Smoke)
Construction & Technical Data

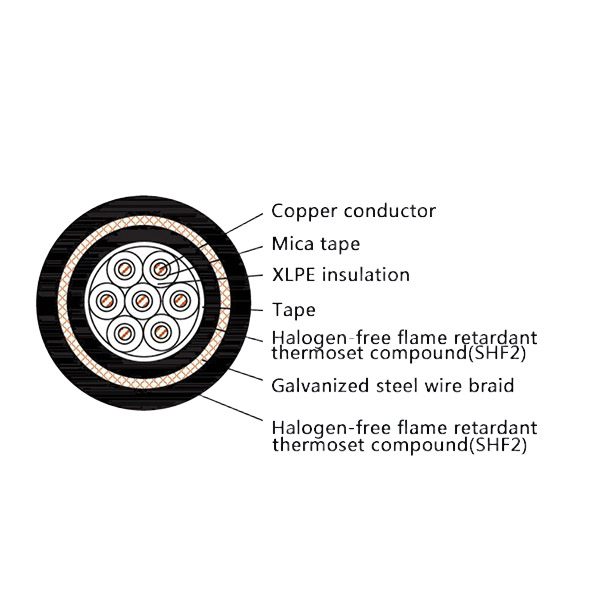

Cable Construction
| Item | Code | Description / Material |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | - | Tinned or Plain Stranded Annealed Copper Wire |
| Insulation | J | Mica Glass Tape + XLPE Insulation |
| Inner Sheath | PJ | Halogen-free Flame Retardant Thermoset Compound (SHF2) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 5 | Halogen-free Flame Retardant Thermoset Compound (SHF2) |
| Sheath Color | - | Standard Black (other colors on request) |
| Flammability | NC | Halogen Free, Low Smoke & Fire Resistant |
Specifications
| Specification | Details |
|---|---|
| Rated Voltage | 150/250V |
| Long-term Operating Temperature | 90℃ |
| Core Numbers | 1 to 37 Cores |
| Conductor Cross-Section | 0.5mm², 0.75mm², 1.0mm², 1.5mm², 2.5mm² |
Ordering Information
When ordering, please specify the following parameters:
-
Product Code: CKJPJ95/NC
-
Number of Cores
-
Conductor Cross-Section
-
Length
Example: CKJPJ95/NC 12x1.5mm²
