Product Code: CKJPJ/NC
Rated Voltage: 150/250V
Operating Temperature: Up to 90℃
Product Overview
The CKJPJ/NC is a premium Low Smoke Zero Halogen (LSZH) and Fire Resistant marine control cable. It is engineered with XLPE insulation and a special halogen-free thermoset sheath to provide maximum safety in the event of a fire, making it the ideal choice for confined or poorly ventilated spaces where personnel safety is paramount, such as offshore platforms and passenger ships.
Key Features
-
Enhanced Safety (LSZH): Emits extremely low smoke and no toxic/halogenated acids when exposed to fire (IEC 60754, IEC 61034), ensuring better visibility for evacuation and reducing corrosive damage to equipment.
-
Circuit Integrity (Fire Resistant): Maintains operational continuity during a fire, complying with IEC 60331.
-
Flame Retardant: Effectively prevents the spread of flame (IEC 60332-1 & -3-22).
-
Lightweight & Flexible: Non-armored design makes it easier to install in complex routing scenarios.
-
Durable Thermoset Sheath: Offers excellent resistance to heat, chemicals, and weathering.
Applications
This cable is specifically designed for critical power, lighting, and control systems in safety-conscious environments:
-
Offshore platforms and marine vessels (especially passenger ships and naval vessels)
-
Public buildings, tunnels, and underground railways
-
Nuclear power plants, chemical plants, and other high-risk industrial facilities
-
Any application requiring enhanced fire safety and reduced smoke emission
Standards Compliance
This product is manufactured in accordance with the following international standards:
-
IEC 60092-350, 376 (General Construction & Design)
-
IEC 60228 (Conductors)
-
IEC 60092-360 (Insulation & Sheath)
-
IEC 60331 (Fire Resistance)
-
IEC 60332-1 & IEC 60332-3-22 (Flame Retardant)
-
IEC 60754 (Halogen Free)
-
IEC 61034 (Low Smoke)
Construction & Technical Data

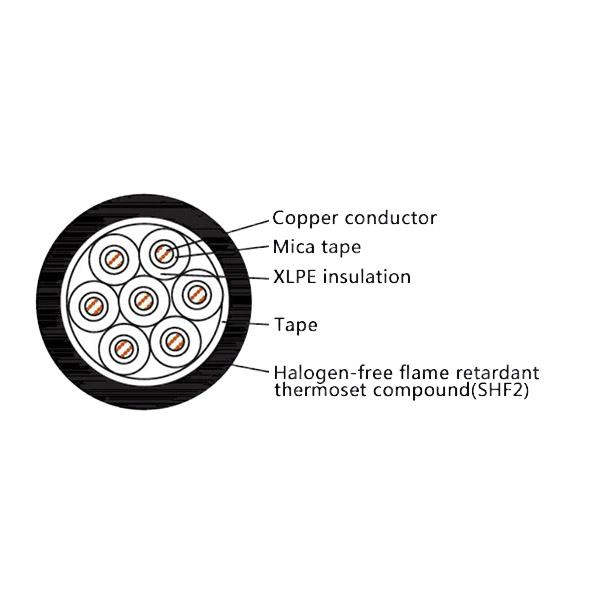

Cable Construction
| Item | Code | Description / Material |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | - | Tinned or Plain Stranded Annealed Copper Wire |
| Insulation | J | Mica Glass Tape + XLPE Insulation |
| Sheath | PJ | Halogen-free Flame Retardant Thermoset Compound (SHF2) |
| Sheath Color | - | Standard Black (other colors on request) |
| Flammability | NC | Halogen Free, Low Smoke & Fire Resistant |
Specifications
| Specification | Details |
|---|---|
| Rated Voltage | 150/250V |
| Long-term Operating Temperature | 90℃ |
| Core Numbers | 1, 2, 3, 4, 5, 7, 10, 12, 14, 16, 19, 24, 27, 30, 37 Cores |
| Conductor Cross-Section | 0.5mm², 0.75mm², 1.0mm², 1.5mm², 2.5mm² |
Ordering Information
When ordering, please specify the following parameters:
-
Product Code: CKJPJ/NC
-
Number of Cores
-
Conductor Cross-Section
-
Length
Example: CKJPJ/NC 7x2.5mm²
