Product Code: CKJPJ90/NC
Rated Voltage: 150/250V
Operating Temperature: Up to 90℃
Product Overview
The CKJPJ90/NC is a premium Low Smoke Zero Halogen (LSZH) and Fire Resistant marine control cable, featuring Galvanized Steel Wire Armor and supplied without an outer sheath. This design combines maximum fire safety and mechanical protection with the flexibility for integration into cable bundles or systems where an overall jacket is not required, making it ideal for confined spaces and critical circuits.
Key Features
-
Enhanced Safety (LSZH): The Halogen-free inner sheath ensures emission of extremely low smoke and no toxic/corrosive gases when exposed to fire (IEC 60754, IEC 61034), protecting personnel and equipment.
-
No Outer Sheath: Exposed armor allows for easy penetration sealing, efficient heat dissipation, and flexible system integration.
-
Circuit Integrity (Fire Resistant): Maintains operational continuity during a fire, complying with IEC 60331.
-
Flame Retardant: Effectively prevents the spread of flame (IEC 60332-1 & -3-22).
-
Robust Armored Protection: Galvanized Steel Wire Braid provides superior mechanical protection against impact and crushing.
Applications
This cable is designed for critical power, lighting, and control systems where maximum safety and mechanical durability are required in a compact form:
-
Offshore platforms and marine vessels
-
Confined engine rooms and control panels on ships
-
Nuclear power plants, chemical plants, and other high-risk industrial facilities
-
Applications where cables are bundled and an overall sheath is applied separately
Standards Compliance
This product is manufactured in accordance with the following international standards:
-
IEC 60092-350, 376 (General Construction & Design)
-
IEC 60228 (Conductors)
-
IEC 60092-360 (Insulation & Sheath)
-
IEC 60331 (Fire Resistance)
-
IEC 60332-1 & IEC 60332-3-22 (Flame Retardant)
-
IEC 60754 (Halogen Free)
-
IEC 61034 (Low Smoke)
Construction & Technical Data

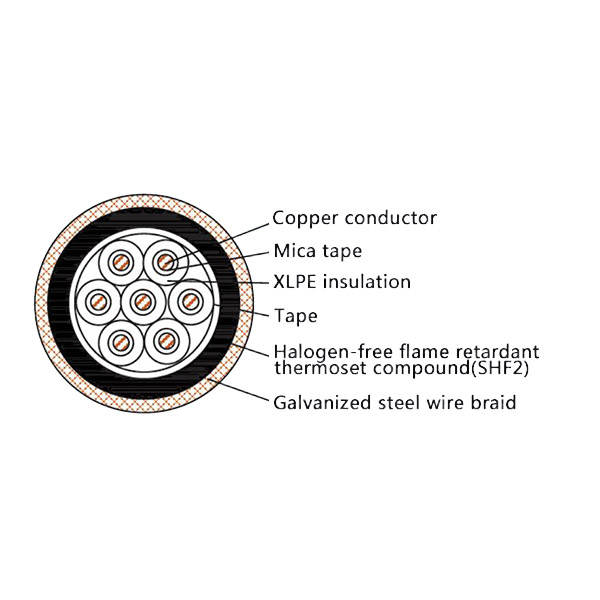

Cable Construction
| Item | Code | Description / Material |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | - | Tinned or Plain Stranded Annealed Copper Wire |
| Insulation | J | Mica Glass Tape + XLPE Insulation |
| Inner Sheath | PJ | Halogen-free Flame Retardant Thermoset Compound (SHF2) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | NC | Halogen Free, Low Smoke & Fire Resistant |
Specifications
| Specification | Details |
|---|---|
| Rated Voltage | 150/250V |
| Long-term Operating Temperature | 90℃ |
| Core Numbers | 1, 2, 3, 4, 5, 7, 10, 12, 14, 16, 19, 24, 27, 30, 37 Cores |
| Conductor Cross-Section | 0.5mm², 0.75mm², 1.0mm², 1.5mm², 2.5mm² |
Ordering Information
When ordering, please specify the following parameters:
-
Product Code: CKJPJ90/NC
-
Number of Cores
-
Conductor Cross-Section
-
Length
Example: CKJPJ90/NC 12x1.5mm²
