Product Overview
CKJP82/NA marine control cable delivers reliable performance in demanding environments with its XLPE insulation and fire-resistant construction. Featuring copper wire armor and comprehensive screening, this cable ensures operational safety and stability for critical marine and industrial applications.
Key Features
-
Fire Resistant: Maintains circuit integrity during fire emergencies (IEC 60331)
-
Flame Retardant: Excellent flame spread resistance (IEC 60332-1 & 60332-3-22)
-
Copper Wire Armor: Superior corrosion resistance and mechanical protection
-
EMI Shielding: Effective electromagnetic interference protection
-
Durable Construction: XLPE insulation ensures thermal stability
-
PVC Protection: Robust outer sheath for environmental resistance
Applications
-
Offshore oil platforms and marine installations
-
Shipboard power and control systems
-
Industrial applications including:
-
Chemical processing plants
-
Power generation facilities
-
Mining operations
-
Metallurgical plants
-
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 150/250V |
| Operating Temperature | 90°C |
| Conductor | Tinned/plain stranded annealed copper |
| Insulation | Mica glass tape + XLPE |
| Screening | Tinned copper braid or Alu/Polyester tape |
| Armor | Tinned/plain copper wire braided |
| Outer Sheath | PVC |
| Available Cores | 1-37 cores |
| Conductor Sizes | 0.5mm² to 2.5mm² |
Compliance Standards
-
IEC 60092-350, 376 - Marine cable design
-
IEC 60228 - Conductors
-
IEC 60092-360 - Insulation and sheath
-
IEC 60331 - Fire resistance
-
IEC 60332-1 & 60332-3-22 - Flame retardant
-
IEC 60754 - Halogen free
-
IEC 61034 - Low smoke density

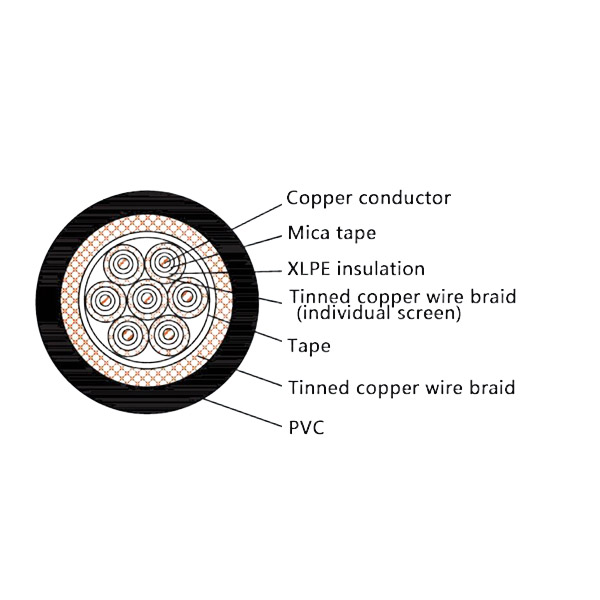

Construction Details
-
Product Series: CK (Marine & Offshore Control Cable)
-
Insulation Type: J (Mica Glass Tape + XLPE)
-
Screening: P (Tinned Copper Braid or Foil Tape)
-
Armor Type: 8 (Tinned/Plain Copper Wire Braid)
-
Outer Sheath: 2 (PVC Outer Sheath)
-
Safety Rating: NA (Fire Resistant)
Product Advantages
-
Reliable fire resistance for enhanced safety
-
Copper armor provides excellent corrosion protection
-
Suitable for harsh marine environments
-
Comprehensive EMI shielding
-
Compliant with international marine standards
-
Flexible configuration options
