CKJ96/NC Marine Control Cable – Low Smoke Zero Halogen, Fire Resistant, XLPE Insulated

XLPE Insulation Marine Control Cables30
Description

CKJ96/NC Marine Control Cable – Low Smoke Zero Halogen, Fire Resistant, XLPE Insulated

Product Overview

The CKJ96/NC marine control cable is engineered with XLPE insulation and a low smoke zero halogen (LSZH) sheath. It delivers reliable fire resistance, flame retardancy, and high durability, making it an ideal choice for critical offshore, marine, and industrial applications.

Key Features

  • Fire Resistant: Complies with IEC 60331 to maintain circuit integrity in fire conditions

  • Flame Retardant: Meets IEC 60332-1 and IEC 60332-3-22 for flame spread resistance

  • Low Smoke Zero Halogen: Reduces smoke and toxic gas emissions (IEC 61034, IEC 60754)

  • XLPE Insulation: Ensures thermal stability and long-term performance under 90°C

  • Robust Armor: Galvanized steel wire braid offers superior mechanical protection

Applications

  • Offshore platforms, ships, and marine control systems

  • Power, lighting, and control circuits in harsh environments

  • Chemical plants, power generation, and mining industries

  • Metallurgical and heavy industrial facilities

Technical Specifications

Parameter Details
Rated Voltage 150/250V
Operating Temperature 90°C
Conductor Tinned or plain stranded annealed copper per IEC 60228
Insulation Mica glass tape + XLPE insulation
Armor Galvanized steel wire braid
Outer Sheath Halogen-free flame retardant thermoplastic (SHF1)
Core Range 1–37 cores
Cross-Sections 0.5mm², 0.75mm², 1.0mm², 1.5mm², 2.5mm²

Compliance Standards

  • IEC 60092-350, 376 – Marine cable design

  • IEC 60228 – Conductors

  • IEC 60092-360 – Insulation and sheath

  • IEC 60331 – Fire resistance

  • IEC 60332-1 & 60332-3-22 – Flame retardancy

  • IEC 60754 – Halogen-free

  • IEC 61034 – Low smoke emission

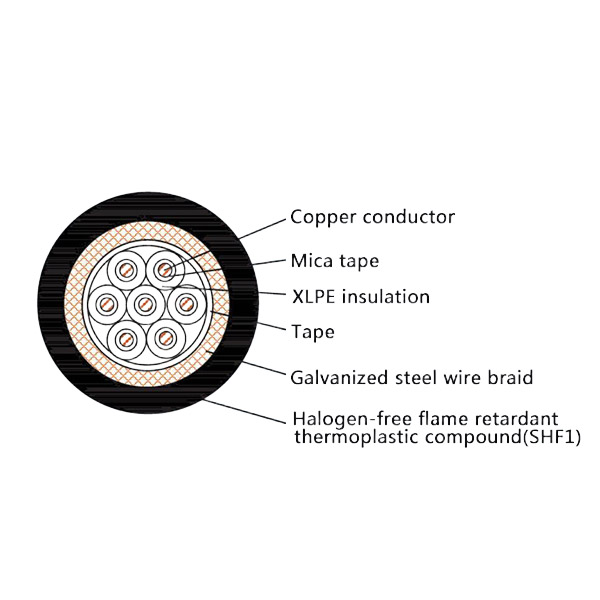

Construction Details

  • Conductor: Tinned or plain stranded annealed copper wire

  • Insulation: Mica glass tape + XLPE

  • Armor: Galvanized steel wire braid

  • Outer Sheath: Halogen-free flame retardant thermoplastic (SHF1)

  • Sheath Color: Standard black (other colors available)

  • Flammability Code: NC (Halogen Free, Low Smoke, Fire Resistant)

Product Advantages

  • Enhanced fire safety performance with maintained circuit integrity under fire

  • Eco-friendly and safe operation with zero halogen and low smoke emission

  • Durable construction suitable for harsh marine and industrial environments

  • Full compliance with international marine and safety standards

  • Wide range of core counts and cross-sections for flexible application
