Product Overview
CKJP85/NC is a high-performance marine control cable designed with XLPE insulation and comprehensive fire safety features. Engineered with low smoke halogen free (LSHF) materials and copper wire braid armor, this cable ensures reliable operation in demanding marine and industrial environments.
Key Features
-
Fire Resistant Performance: Complies with IEC 60331 for circuit integrity during fire
-
Low Smoke Halogen Free: Minimal smoke emission and non-toxic gases (IEC 61034, IEC 60754)
-
Flame Retardant: Meets IEC 60332-1 and IEC 60332-3-22 standards
-
Copper Wire Armor: Superior corrosion resistance and flexibility
-
EMI Protection: Effective electromagnetic interference shielding
-
Thermal Stability: XLPE insulation withstands high temperatures
Applications
-
Offshore oil platforms and marine installations
-
Shipboard power distribution systems
-
Control and lighting circuits
-
Industrial applications in:
-
Chemical processing plants
-
Power generation facilities
-
Mining operations
-
Metallurgical plants
-
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 150/250V |
| Operating Temperature | 90°C |
| Conductor | Tinned/plain stranded annealed copper |
| Insulation | Mica glass tape + XLPE |
| Screening | Tinned copper braid or Alu/Polyester tape |
| Armor | Tinned/plain copper wire braided |
| Outer Sheath | Halogen-free flame retardant thermoset (SHF2) |
| Available Cores | 1-37 cores |
| Conductor Sizes | 0.5mm² to 2.5mm² |
Compliance Standards
-
IEC 60092-350, 376 - Marine cable design
-
IEC 60228 - Conductors
-
IEC 60092-360 - Insulation and sheath
-
IEC 60331 - Fire resistance
-
IEC 60332-1 & 60332-3-22 - Flame retardant
-
IEC 60754 - Halogen free
-
IEC 61034 - Low smoke density

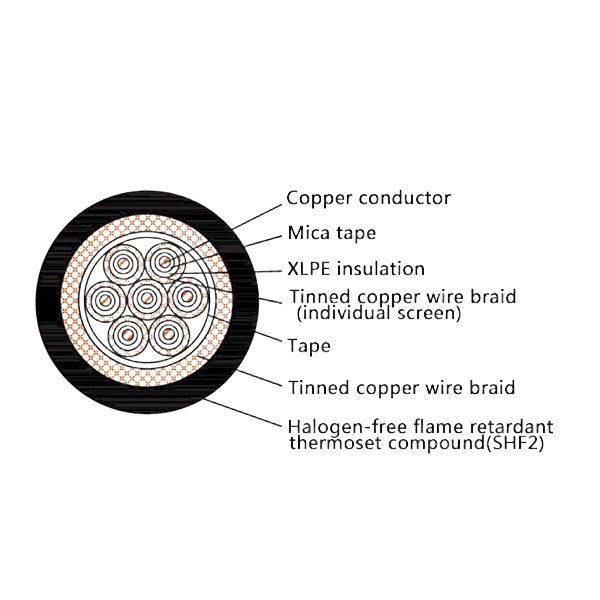

Construction Details
-
Product Series: CK (Marine & Offshore Control Cable)
-
Insulation Type: J (Mica Glass Tape + XLPE)
-
Screening: P (Tinned Copper Braid or Foil Tape)
-
Armor Type: 8 (Tinned/Plain Copper Wire Braid)
-
Outer Sheath: 5 (Halogen-free Flame Retardant Thermoset - SHF2)
-
Safety Rating: NC (Halogen Free Low Smoke Fire Resistant)
Product Advantages
-
Enhanced personnel safety with low smoke halogen free properties
-
Excellent corrosion resistance suitable for marine environments
-
Reliable performance in high temperature conditions
-
Comprehensive EMI protection for sensitive control systems
-
Compliance with international marine standards
-
Flexible configuration options for various applications
