Product Overview
The CKJP86/NC marine control cable combines advanced XLPE insulation with comprehensive fire safety features. Engineered with low smoke zero halogen (LSZH) materials and copper wire braid armor, this cable delivers superior performance in critical marine and industrial applications where safety and reliability are paramount.
Key Features
-
Fire Resistant: Maintains circuit integrity during fire emergencies (IEC 60331)
-
Low Smoke Zero Halogen: Minimizes smoke and toxic gas emission (IEC 61034, IEC 60754)
-
Flame Retardant: Excellent flame spread resistance (IEC 60332-1 & 60332-3-22)
-
Copper Wire Armor: Provides superior corrosion resistance and flexibility
-
EMI Protection: Integrated screening for electromagnetic interference protection
-
XLPE Insulation: Exceptional thermal stability and mechanical strength
Applications
-
Offshore oil platforms and marine installations
-
Shipboard power, lighting and control systems
-
Hazardous industrial environments:
-
Chemical processing plants
-
Power generation facilities
-
Mining operations
-
Metallurgical plants
-
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 150/250V |
| Maximum Operating Temperature | 90°C |
| Conductor | Tinned/plain stranded annealed copper |
| Insulation | Mica glass tape + XLPE |
| Screening | Tinned copper braid or Alu/Polyester tape |
| Armor | Tinned/plain copper wire braided |
| Outer Sheath | Halogen-free flame retardant thermoplastic (SHF1) |
| Available Cores | 1 to 37 cores |
| Conductor Cross-sections | 0.5mm² to 2.5mm² |
Compliance Standards
-
IEC 60092-350, 376 - Marine cable design requirements
-
IEC 60228 - Conductor standards
-
IEC 60092-360 - Insulation and sheath specifications
-
IEC 60331 - Fire resistance requirements
-
IEC 60332-1 & 60332-3-22 - Flame retardant properties
-
IEC 60754 - Halogen-free performance
-
IEC 61034 - Low smoke density

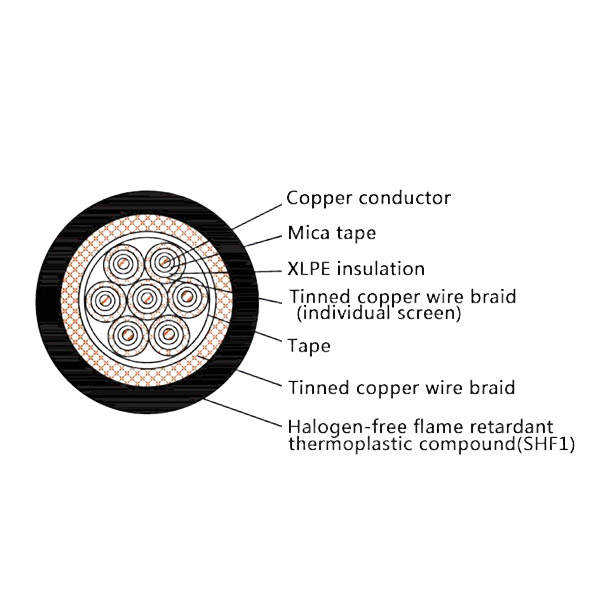

Construction Details
-
Product Series: CK (Marine & Offshore Control Cable)
-
Insulation System: J (Mica Glass Tape + XLPE Insulation)
-
EMC Screening: P (Tinned Copper Braid or Foil Tape)
-
Armor Protection: 8 (Tinned/Plain Copper Wire Braid)
-
Outer Sheath: 6 (Halogen-free Flame Retardant Thermoplastic - SHF1)
-
Safety Rating: NC (Low Smoke Zero Halogen, Fire Resistant)
Product Advantages
-
Enhanced Safety: Zero halogen composition and low smoke emission protect personnel during fire incidents
-
Corrosion Resistance: Copper wire armor ensures long service life in marine environments
-
Flexible Design: Multiple core options and conductor sizes for various application needs
-
Reliable Performance: Maintains electrical integrity under extreme conditions
-
International Compliance: Meets all relevant IEC standards for marine applications
