Product Overview
The CKJP92/NA is a reliable marine control cable designed with XLPE insulation and fire-resistant properties. Featuring a robust construction with screening and galvanized steel wire armor, this cable ensures safe and stable performance in demanding marine and industrial environments.
Key Features
-
Fire Resistant: Complies with IEC 60331 for maintained circuit integrity during fire incidents
-
Flame Retardant: Meets IEC 60332-1 and IEC 60332-3-22 standards
-
Quality Construction: XLPE insulation with mica glass tape protection
-
EMI Protection: Screened design with tinned copper braid or aluminum-polyester tape
-
Durable Armor: Galvanized steel wire braid for mechanical protection
-
PVC Outer Sheath: Provides additional environmental protection
Applications
-
Offshore installations and oil platforms
-
Marine vessel power and control systems
-
Industrial applications in:
-
Metallurgy plants
-
Chemical processing facilities
-
Power generation stations
-
Mining operations
-
Technical Specifications
| Parameter | Details |
|---|---|
| Rated Voltage | 150/250V |
| Operating Temperature | 90°C |
| Conductor Material | Tinned/plain stranded annealed copper |
| Insulation | Mica glass tape + XLPE |
| Screening | Tinned copper braid or Alu/Polyester tape with drain wire |
| Armor | Galvanized steel wire braid |
| Outer Sheath | PVC |
| Available Cores | 1-37 cores |
| Cross Sections | 0.5mm², 0.75mm², 1.0mm², 1.5mm², 2.5mm² |
Compliance Standards
-
IEC 60092-350, 376 - Marine cable design requirements
-
IEC 60228 - Conductor standards
-
IEC 60092-360 - Insulation and sheath materials
-
IEC 60331 - Fire resistance testing
-
IEC 60332-1 & 60332-3-22 - Flame retardant properties
-
IEC 60754 - Halogen-free performance
-
IEC 61034 - Low smoke emission

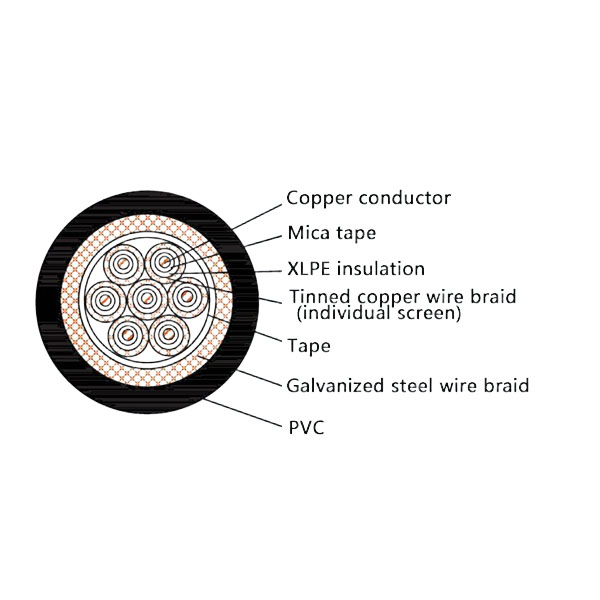

Construction Details
-
Series Classification: CK (Marine & Offshore Control Cable)
-
Insulation System: J (Mica Glass Tape + XLPE Insulation)
-
Screening: P (Tinned Copper Braid or Foil Tape)
-
Armor Protection: 9 (Galvanized Steel Wire Braid)
-
Sheath Material: 2 (PVC Outer Sheath)
-
Fire Performance: NA (Fire Resistant)
Product Advantages
-
Enhanced fire safety performance for critical applications
-
Reliable operation in harsh marine environments
-
Comprehensive electromagnetic interference protection
-
Robust mechanical protection with steel wire armor
-
Compliance with international marine standards
-
Versatile application across multiple industries
