Product Overview

SJOOW 300V Portable Power Cable is a flexible, heavy-duty cord designed for portable tools, equipment, and machinery requiring reliable power delivery in rugged environments. Featuring EPDM insulation, CPE jacket, and ASTM-compliant stranded copper conductors, this cable meets UL 62, CSA C22.2 No. 49, OSHA, and MSHA standards. Rated for 300V and 90°C operation, it excels in applications demanding oil resistance, abrasion durability, and flexibility.

Key Features

  • Oil & Abrasion Resistance: CPE outer jacket protects against oils, chemicals, and mechanical wear.

  • Ultra-Flexible: Class K stranded copper conductors (ASTM B3/B174) ensure superior bendability.

  • Multi-Certification: UL, CSA, OSHA, and MSHA approved for industrial safety.

  • Temperature Resilience: Operates from -40°C to +90°C in wet or dry conditions.

  • Color-Coded Insulation: EPDM insulation with standardized color coding for easy phase identification.

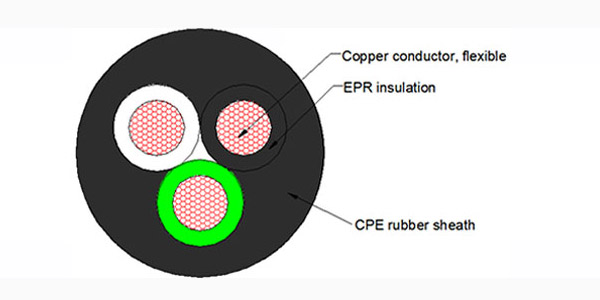

Construction Details

Component Specification
Conductors Class K stranded bare copper (ASTM B3/B174 compliant).
Insulation Color-coded EPDM (ethylene propylene diene monomer).
Jacket Black chlorinated polyethylene (CPE), oil/moisture/abrasion resistant.
Voltage Rating 300V AC.
Temperature Range -40°C to +90°C (operating).
Flexibility High strand count for repeated bending and movement.

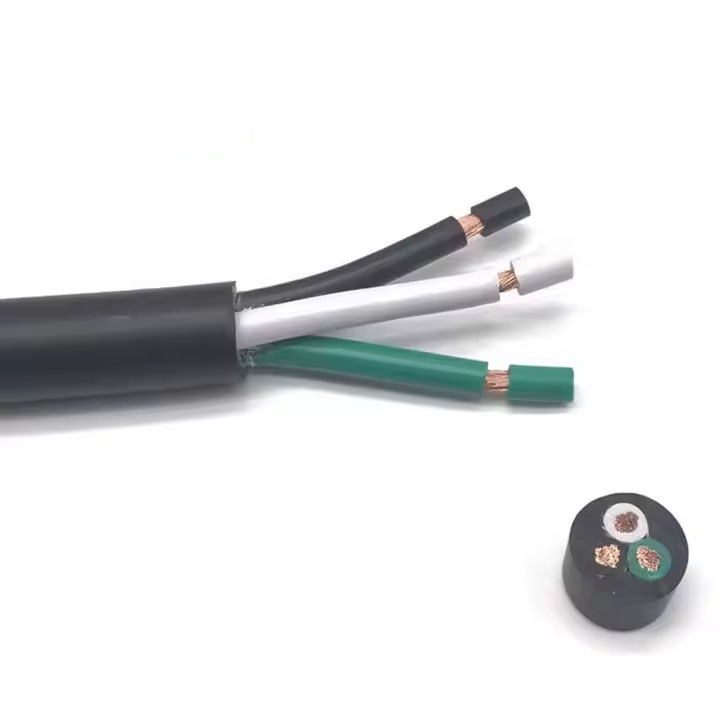

SJOOW 300V Portable Power Cable | 90°C Oil-Resistant | UL 62 & CSA Certified-Picture2

Technical Specifications

  • Standards Compliance: UL 62, CSA C22.2 No. 49, OSHA 29 CFR 1910, MSHA Part 18.

  • Conductor Sizes: 18 AWG to 2 AWG (custom sizes available).

  • Insulation Thickness: Meets UL/CSA requirements for voltage and temperature ratings.

  • Flame Resistance: VW-1 flame-retardant per UL 62 vertical flame test.

  • Environmental Resistance: Oil, sunlight, moisture, and abrasion resistant.

Applications

SJOOW Cable is engineered for:

  • Industrial Tools: Portable drills, grinders, and welding equipment.

  • Construction Sites: Temporary power distribution for lighting and machinery.

  • Agriculture: Farm equipment, irrigation systems, and outdoor installations.

  • Mining Operations: MSHA-approved for use in portable mining equipment.

  • Marine & Outdoor: Damp environments with exposure to oils and chemicals.

Installation Guidelines

  • Bending Radius: Minimum 5x cable diameter to maintain jacket integrity.

  • Temperature Limits: Avoid installation below -40°C without pre-conditioning.

  • Pull Tension: Use proper grips to prevent conductor damage during pulling.

  • Termination: Use strain relief connectors for high-flex applications.

  • Prohibited Uses: Not for direct burial or permanent fixed installations.

Why Choose SJOOW 300V Cable?

  • Durability: Withstands harsh industrial environments, including oil and chemical exposure.

  • Certified Safety: Meets stringent UL, CSA, OSHA, and MSHA requirements.

  • Cost Efficiency: Reduced downtime due to robust construction and long service life.

  • Versatility: Suitable for indoor/outdoor use in dry or damp locations.
