1. Product Overview
Silicone Rubber Electrical Cables are flexible power transmission cables designed for equipment rated at 0.6/1kV or below. Engineered for extreme environments, these cables operate reliably in high-temperature, chemically aggressive, or mechanically stressful conditions where standard cables fail.
2. Key Material Properties & Applications
Material Characteristics
-
Temperature Resilience: -60°C to +180°C continuous; 250°C short-term (≤5 sec)
-
Chemical Resistance: Ozone, UV radiation, moisture, and aging
-
Mechanical Durability: Flame-retardant (IEC 60332), cold-flexible, weatherproof
-
Electrical Stability: Maintains insulation integrity under thermal cycling
Application Scenarios
-
Industrial ovens/furnaces
-
Welding equipment
-
Foundries & steel plants
-
Renewable energy systems (solar/wind)
-
Mobile generators & shipboard power
-
Chemical processing facilities
3. Technical Specifications
Electrical Parameters
| Parameter | Value | Standard |
|---|---|---|
| Rated Voltage (U<sub>0</sub>/U) | 0.6/1 kV | IEC 60502-1 |
| Conductor DC Resistance (20°C) | ≤0.0184 Ω/m (1mm²) | GB/T 3956 |
| Insulation Resistance (20°C) | ≥50 MΩ·km (≤50mm²) ≥35 MΩ·km (70-185mm²) |
IEC 60811 |
| Voltage Test | 3.5kV AC, 5 min no breakdown | IEC 60502-1 |
Mechanical & Thermal
| Parameter | Specification |
|---|---|
| Operating Temperature | -60°C to +180°C |
| Max. Conductor Temp (Short Circuit) | 250°C (≤5 sec) |
| Minimum Installation Temp | -20°C |
| Bending Radius | 15×OD (single-core) 12×OD (multi-core) |

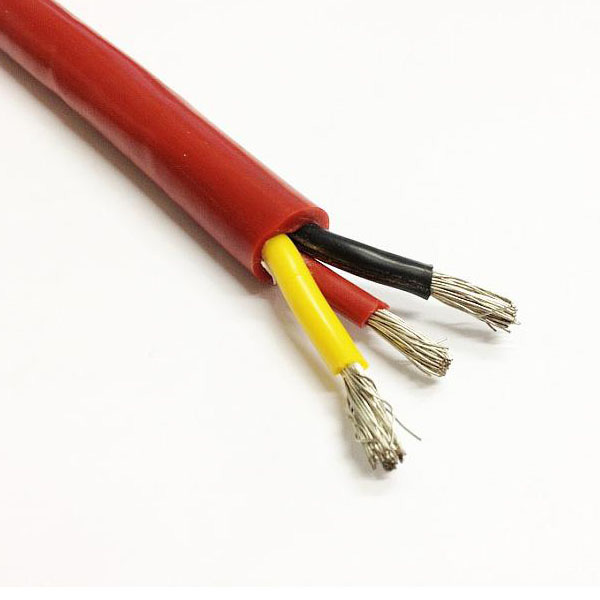

4. Cable Construction
Standard Configuration
-
Conductor: Tinned copper (Class 5/VDE 0295)
-
Insulation: HTV Silicone Rubber
-
Screen (Optional): Copper braid (coverage ≥85%)
-
Sheath: Silicone rubber (HGG) or PVC (HGVF)
-
Armour (Optional): Steel tape (22) or steel wire (32)
5. Product Models & Nomenclature
Type Coding System
-
H: Silicone rubber power cable series
-
G: Silicone rubber insulation/sheath
-
VF: PVC sheath compound
-
P: Copper braid screen
-
22: Steel tape armour
-
32: Steel wire armour
Standard Models (IEC 60502-1 Compliant)
| Core Config. | Model | Description |
|---|---|---|
| Single-core | H07GG-J | Silicone insulated, silicone sheathed |
| Multi-core | H07GVF-J | Silicone insulated, PVC sheathed |
| Shielded | H07GVF3P-J | PVC sheath + copper screen |
| Armoured | H07GG22-J | Silicone sheath + steel tape armour |
| Full spec | H07GVFP32-J | PVC sheath + screen + steel wire armour |
Example Sizing:
-
H07GG-J 1×2.5mm²
-
H07GVF-J 3×4mm² + 1×2.5mm²
-
H07GVFP32-J 4×185mm²
6. Compliance & Certification
-
Standards: IEC 60502-1, GB/T 5013.8, VDE 0282
-
Certifications: CE, RoHS, REACH
-
Flame Rating: IEC 60332-1 (Standard) / -2 (Cat A) on request
7. Ordering & Customization
Standard Delivery
-
Length Tolerance: ±0.5% (min. 100m drum)
-
Packaging: Wooden drums, moisture-resistant wrapping
Custom Options
-
Special voltages (up to 3.6/6kV)
-
Custom colors/marking
-
Enhanced fire performance (IEC 60331)
-
UL/CSA certification
-
Flat/Ribbon configurations
8. Installation Notes
-
Use cable glands rated for silicone/PVC
-
Avoid sharp edges during pulling
-
Maintain minimum bend radius
-
Store drums horizontally (<1yr recommended)
