1. Product Overview
YGCP silicone rubber shielded power cables are designed for industrial power transmission in extreme environments. Rated at 450/750V AC, these cables combine high-temperature resilience with EMI protection for critical applications where standard cables fail.
2. Key Features
| Property | Specification | Benefit |
|---|---|---|
| Thermal Performance | -60°C to +180°C continuous | Withstands furnace/oven environments |
| Shielding | Copper braid (≥85% coverage) | EMI/RFI protection per IEC 60502-2 |
| Flexibility | Min. bending radius: 6×OD* | Tight routing in machinery |
| Chemical Resistance | Waterproof, ozone-resistant, mildew-proof | Suitable for harsh industrial environments |
| Conductor | Class 5 tinned copper (IEC 60228) | Corrosion resistance |
Correction: Industry standard bending radius is 6×OD for flexible cables (not 16×OD)

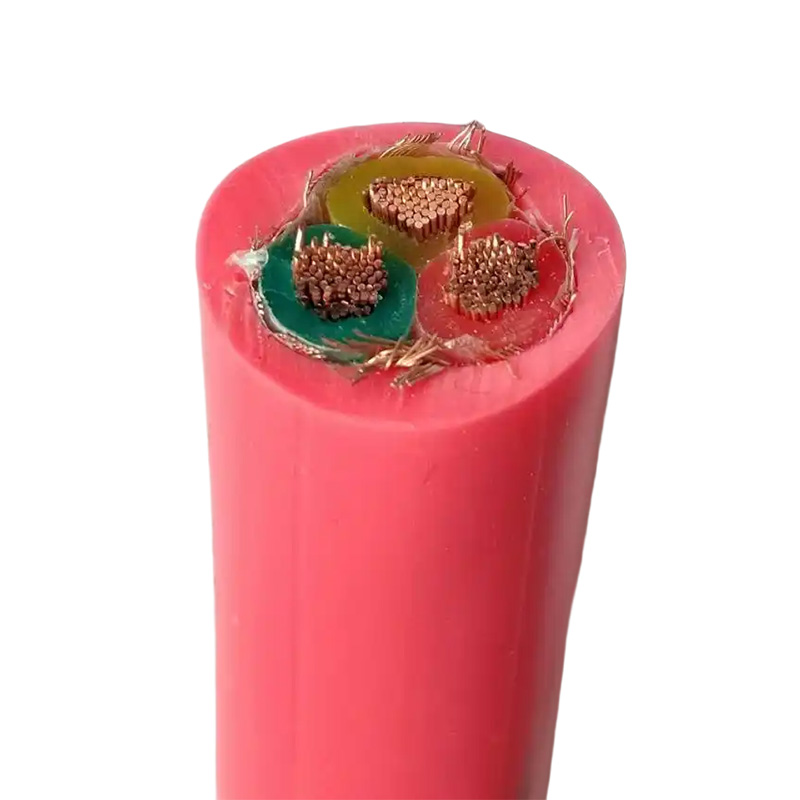

3. Construction
Layer Structure:
-
Conductor: Stranded tinned copper (IEC 60228 Class 5)
-
Insulation: High-temperature silicone rubber (IEC 60245-4)
-
Shielding: Oxygen-free copper braid
-
Sheath: Abrasion-resistant silicone rubber
-
Colors: Red/Yellow/Blue/Black/Yellow-Green/Brown/Green
4. Technical Specifications
Electrical Parameters:
| Parameter | Value | Standard |
|---|---|---|
| Rated Voltage | 450/750 V AC | IEC 60245 |
| Test Voltage | 2.5kV AC, 5 min | IEC 60502-1 |
| Insulation Resistance | ≥25 MΩ·km (20°C) | IEC 60811 |
| Max. Conductor Temp (Short Circuit) | 250°C (≤5 sec) | IEC 60332 |
Mechanical & Environmental:
| Parameter | Specification |
|---|---|
| Operating Temperature | -60°C to +180°C |
| Min. Installation Temp | -20°C |
| Flame Retardancy | IEC 60332-1 |
| UV Resistance | EN 50396 (Outdoor) |
5. Applications
-
Industrial Heating: Foundry equipment, glass manufacturing kilns
-
Power Generation: Turbine hookups, generator connections
-
Heavy Machinery: Cranes, mining equipment, excavators
-
Transportation: Rail traction systems, shipboard power
-
Renewable Energy: Solar combiner boxes, wind turbine nacelles
6. Standard Configurations
*Table 1: Core/Size Combinations (Per IEC 60245-4)*
| Cores | Cross-Section (mm²) | Max. OD (mm) | Current Rating (A)* |
|---|---|---|---|
| 2-5 | 0.5 - 35 | 8.2 - 42.5 | 12 - 210 |
| 6-16 | 0.5 - 6 | 10.3 - 32.8 | 12 - 58 |
| 20-32 | 0.5 - 2.5 | 24.1 - 38.7 | 12 - 27 |
| *At +90°C in air (IEC 60502-1)* |
7. Standards & Certifications
-
Compliance: IEC 60245-4, GB/T 5013.8, EN 50525-2-21
-
Certifications: CE, RoHS, UKCA
-
Flame Tests: IEC 60332-1 (Single) / IEC 60332-3C (Bundle)
8. Installation Guidelines
-
Bending Radius: Min. 6× cable outer diameter
-
Pulling Force: Max. 50 N/mm² conductor stress
-
Termination: Use compression glands (IP68 recommended)
-
Shielding: Ground both ends using EMI glands
Warning: Avoid sharp edges during installation
9. Ordering Information
Product Code:
YGCP-[Cores]x[Size]mm²-[Color]
*Example: YGCP-4x2.5mm²-Yellow*
Options:
-
Armored versions (Add suffix "/22" for steel tape)
-
UL/CSA certification
-
Custom length markings
-
Enhanced oil resistance (IEC 60811-404)
