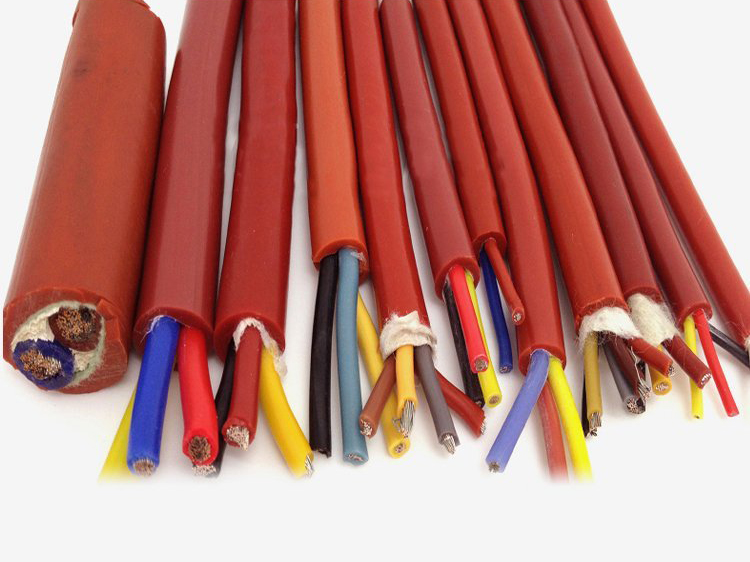

Product Overview
KGG series silicone rubber control cables deliver unparalleled performance in extreme-temperature industrial environments. Engineered for control and monitoring circuits (450/750V), these cables feature all-silicone construction with optional shielding/armoring for critical applications in steel plants, smelters, power generation, petrochemical facilities, and aviation. Withstanding temperatures from -50°C to +180°C, they offer exceptional flame retardancy, radiation resistance, and mechanical durability.
Key Features & Benefits
-
Extreme Temperature Range: Continuous operation from -50°C to +180°C
-
Environmental Resistance: Flame retardant, UV/ozone resistant, waterproof, and radiation-proof
-
Mechanical Strength: Maintains flexibility at high temperatures; resists oils, fuels, and chemicals
-
Safety Compliance: Odorless, non-toxic, low smoke emission (IEC 60754)
-
Electrical Integrity: Superior corona/arc resistance for stable signal transmission
-
Cold Flexibility: Operates reliably in sub-zero environments without cracking
Applications
-
Steel mills & smelting furnaces
-
Power generation plants
-
Petrochemical refineries
-
Coking plants & aviation systems
-
Mining machinery & metallurgical equipment
-
Nuclear radiation zones

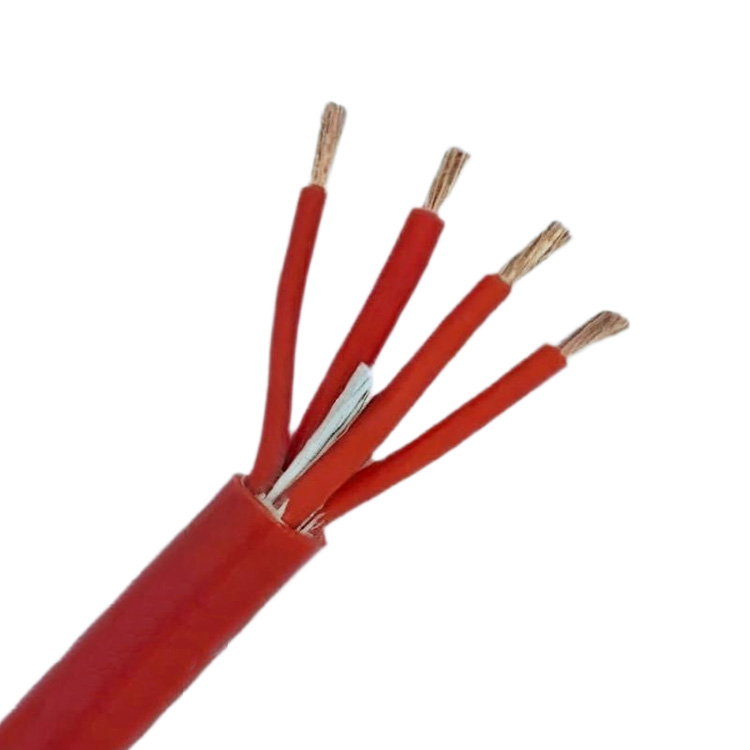

Cable Construction
-
Conductor:
-
High-purity copper core (tinned option available)
-
-
Insulation:
-
Industrial-grade silicone rubber
-
-
Shielding/Armoring (Model-Specific):
-
Braided copper (P), copper tape (P2), steel tape (22), or steel wire (32)
-
-
Outer Sheath:
-
Reinforced silicone rubber (abrasion/chemical resistant)
-
Product Types & Specifications
| Model | Name | Application Scope | Key Feature |
|---|---|---|---|
| KGG | Standard Control Cable | Indoor, cable trenches, conduits (fixed) | All-silicone construction |
| KGGP | Braided Shielded Cable | EMI-sensitive areas (cable trenches/pipes) | Copper braid shielding |
| KGGP2 | Copper Tape Shielded Cable | High-interference environments | 100% coverage shielding |
| KGG22 | Steel Tape Armored Cable | Direct burial, high-tension areas | Crush/rodent resistance |
| KGG32 | Steel Wire Armored Cable | Vertical shafts, high-tension scenarios | 300kg+ tensile strength |
| KGGR | Flexible Control Cable | Mobile equipment requiring bending | 30%+ enhanced flexibility |
| KGGRP | Flexible Shielded Cable | Moving shielded systems (robotics, sensors) | Flex + EMI protection |
Technical Parameters
| Property | Specification | Standard |
|---|---|---|
| Rated Voltage | 450/750V | IEC 60502-1 |
| Temp Range | -50°C to +180°C (continuous) | IEC 60811 |
| Bending Radius | ≥6 × cable diameter | IEC 60332-1 |
| Flame Retardancy | Self-extinguishing (≤250mm damage) | IEC 60332-1 Cat. A |
| Insulation Resistance | ≥100 MΩ·km (20°C) | IEC 60228 |
| Chemical Resistance | Oils, acids, solvents (per IEC 60811-404) | IEC 60811 |
Material Advantages
| Component | Benefits |
|---|---|
| Silicone Rubber | Retains flexibility at -50°C; stable dielectric properties at 180°C |
| Copper Shielding | 360° EMI protection (≥85% coverage) |
| Steel Armoring | Withstands 3000N crush force (KGG22/KGG32) |
| Tinned Conductors | Corrosion resistance in humid/chemical environments |
Engineering Selection Guide
-
Temperature Exposure:
-
150°C continuous: Mandatory silicone rubber construction
-
-
Movement Requirements:
-
Fixed: KGG/KGGP series
-
Dynamic: KGGR/KGGRP (flex rating: >50,000 cycles)
-
-
Environmental Hazards:
-
EMI: Braided/tape shielding (KGGP/KGGP2)
-
Mechanical stress: Armored variants (KGG22/KGG32)
-
-
Certifications:
-
CRIA, CE, RoHS 3.0, DNV-GL (marine optional)
-
Critical Note: For nuclear/radiation zones, specify KGGP2/KGG32 for enhanced shielding integrity. Always verify bending radius during installation to prevent conductor fatigue.
Compliance: Meets IEC 60502-1, IEC 60228, IEC 60332, IEC 60754 for halogen-free/low-smoke performance. Custom lengths/configurations available.
