Description

Product Overview

This 0.6/1kV Copper Conductor XLPE/SWA/PVC Power Cable delivers robust performance for fixed electrical installations in high-stress environments. Engineered with galvanized steel wire armour (SWA) and dual-layer PVC protection, it provides exceptional mechanical resistance, corrosion protection, and long-term reliability. Fully compliant with IEC 60502-1 standards, it is the industry-standard solution for underground power networks and industrial infrastructure.

Key Technical Specifications

Parameter Specification
Conductor Electrolytic copper (IEC 60228), solid/stranded
Insulation XLPE (Cross-linked Polyethylene)
Armour Galvanized Steel Wires (SWA)
Sheath Dual PVC (Inner Bedding + Outer Protection)
Rated Voltage 0.6/1kV (Uo/U)
Operating Temperature -5°C to +90°C (Conductor max: 90°C)
Short-Circuit Rating 250°C (5-second max)
Flame Retardancy IEC 60332-1 Certified
Installation Temp 0°C to +60°C

Core Configuration & Current Ratings

(Direct Burial, Ambient Temp: 25°C)

Cores Section (mm²) Ø (mm) Weight (kg/km) Current (A)
2 1.5-300 11.1-53.4 243-8,750 38-708
3 1.5-400 12.2-65.8 341-14,720 32-667
4 1.5-400 12.9-77.0 351-19,875 32-667
5 1.5-95 13.7-52.1 395-7,700 32-319
7+ 1.5-10 14.7-32.4 449-2,590 32-98

0.6/1kV XLPE Insulated Steel Wire Armoured Power Cable | PVC Sheath | 2-19 Core 1.5-400mm² | IEC 60502-10.6/1kV XLPE Insulated Steel Wire Armoured Power Cable | PVC Sheath | 2-19 Core 1.5-400mm² | IEC 60502-1

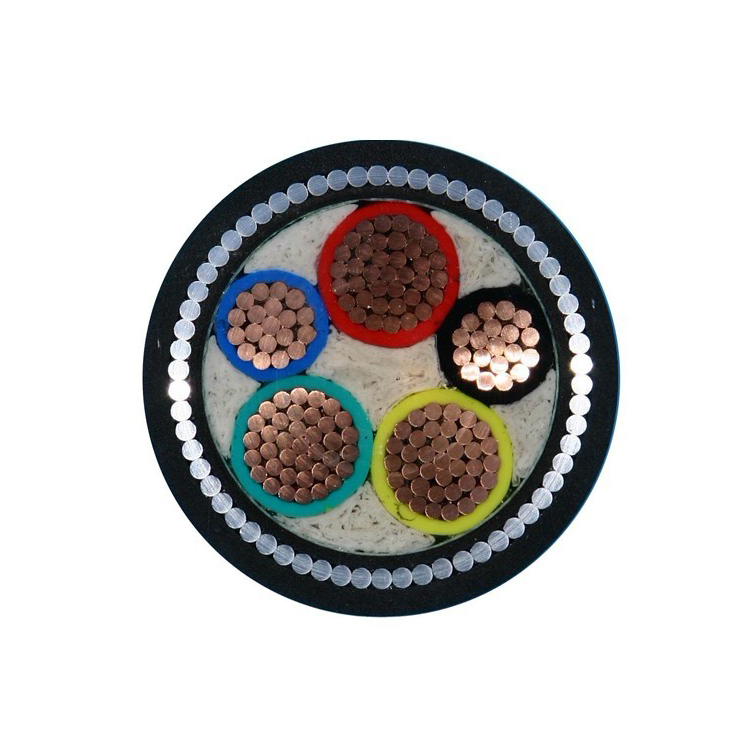

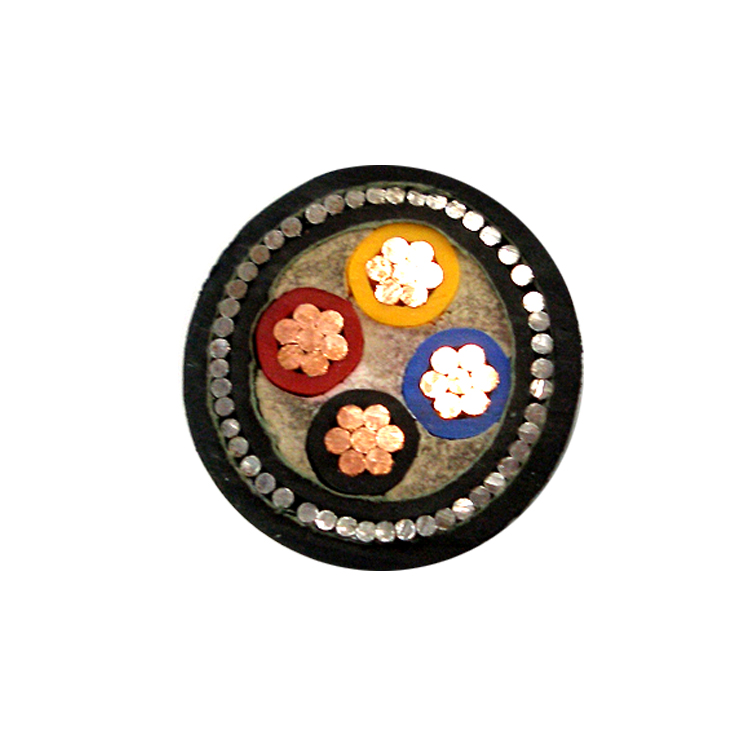

Construction Details

  1. Conductor: Class 1/2 copper per IEC 60228

  2. Insulation: Thermoset XLPE (>90°C operational)

  3. Bedding: PVC inner sheath

  4. Armour: Helically applied galvanized steel wires

  5. Jacket: Heavy-duty PVC (Black, UV-stabilized)

Product Advantages

  • ⚡ Superior Protection: SWA armour resists crushing, rodent damage, and excavation impacts.

  • 🌧️ All-Weather Durability: XLPE-PVC construction withstands moisture, chemicals, and temperature extremes (-5°C to 90°C).

  • 🔥 Enhanced Safety: IEC 60332-1 flame retardancy prevents fire propagation.

  • 🏗️ Installation Flexibility: Suitable for direct burial, ducts, trenches, and exposed runs (bending radius ≥12× cable Ø).

  • 🔌 Future-Proof Design: 19-core configurations support complex control systems.

Application Scenarios

  • Underground Power Distribution: Direct burial in soil without conduit

  • Industrial Facilities: Cable trays, switchgear connections, motor feeds

  • Critical Infrastructure: Substations, renewable energy plants, wastewater treatment

  • High-Risk Zones: Areas with vibration, mechanical stress, or corrosion

Compliance & Certification

  • Standards: IEC 60502-1, IEC 60332-1

  • Certifications: CE, RoHS, ISO 9001

  • Gland Compatibility: PG/ Metric threads (Sizes 16-75mm)

Note: Full datasheet with gland sizes, DC resistance, and temperature derating available on request.
