Product Overview
Industrial-grade single-core power cable for 0.6/1kV fixed installations. Features stranded copper conductor (630mm²), PVC insulation/sheath, 70°C continuous rating, and 160°C short-circuit tolerance. Designed for indoor, tunnel, or trench applications where mechanical protection exists. Critical restriction: Not permitted in ferrous conduits/ducts. Compliant with IEC 60227/BS 6004 standards.

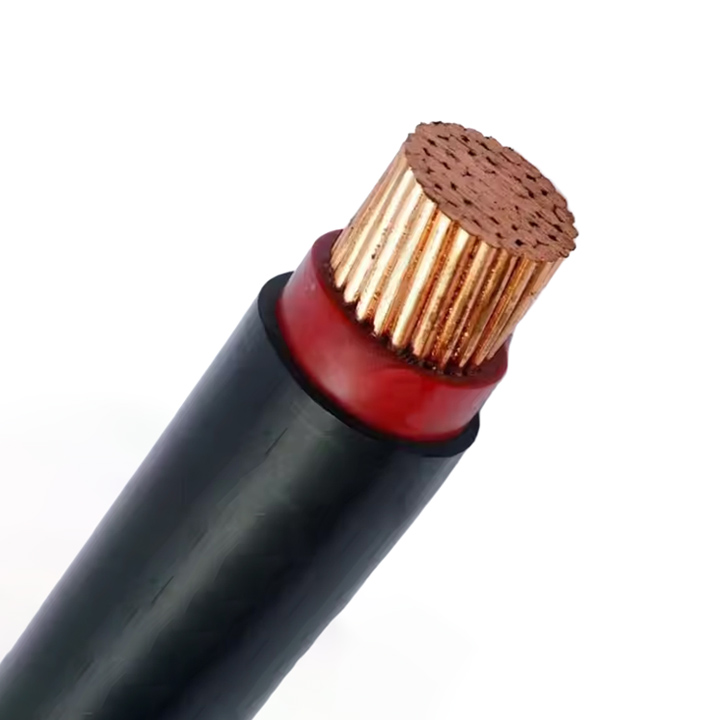

Construction
*(Conforming to IEC 60227 / BS 6004 Standards)*
-
Conductor: Stranded electrolytic copper (630 mm²)
-
Insulation: Type TI-1 PVC to IEC 60227
-
Sheath: UV-resistant PVC
-
Rated Voltage (Uo/U): 0.6/1 kV
-
Certification: ISO 9001:2008
Standards & Application Scope
Suitable for fixed electrical installations with rated power-frequency voltage ≤ 0.6/1 kV per IEC 60227.
Key Applications
-
Indoor switchgear connections
-
Cable trays in tunnels
-
Protected cable trenches
-
Excluded: Magnetic conduits, direct burial, high-impact zones
Operating Characteristics & Technical Data
| Parameter | Specification |
|---|---|
| Max. Continuous Temperature | 70°C |
| Short-Circuit Withstand (5s) | 160°C |
| Min. Installation Temperature | 0°C |
| Bending Radius (Min.) | 15 × Cable Diameter |
| Conductor Material | Stranded Copper (630 mm²) |
| Insulation/Sheath | PVC/PVC |
| Core Configuration | Single Core |
Product Range
This model: PVC insulated + PVC sheathed (unarmored)
Full series variants:
-
PE sheathed options
-
Steel tape/wire armored versions
-
Aluminum conductor alternatives
Installation & Selection Notes
⚠️ Critical Requirements:
-
Ferrous Conduit Prohibition: Magnetic pathways strictly forbidden
-
Mechanical Protection: Use cable trays/conduits in risk areas
-
Bending Control: Maintain ≥15× diameter radius
-
Cold Installation: Pre-warm cable if ambient <0°C
